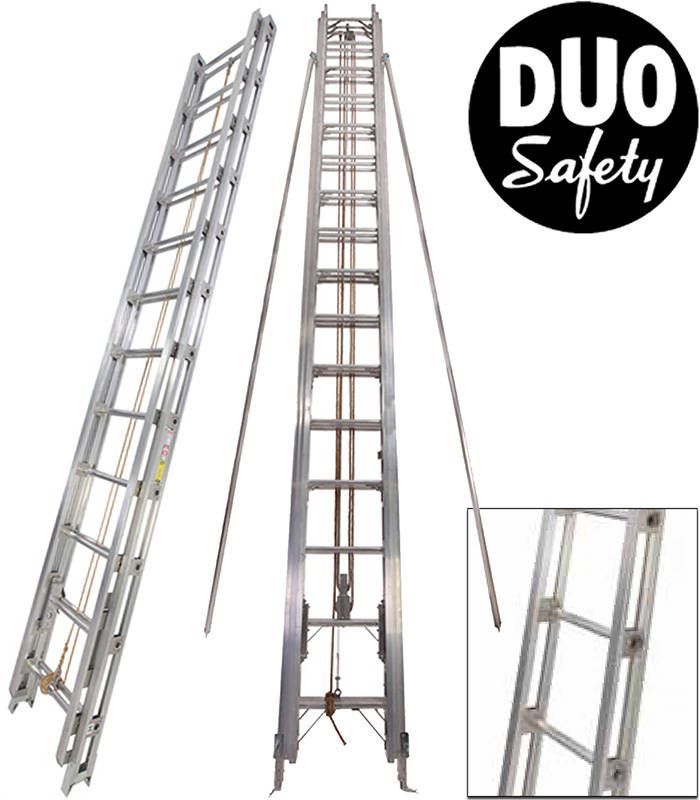

Truss Beam Extension Ladder - 2 Section
The Duo-Safety 500 Series of extension ladders represent the pinnacle of strength and safety in ladder construction. The tubular construction incorporates the inherent strength of a rectangle, a channel and an "I" beam combined to provide the ultimate in strength and safety
• 750 lb. Duty Rated with a 4:1 safety factor
• ½”dia. manila halyard rope on 40ft. or longer ladders
• Stay poles are optional on 40 ft. ladder
• Duo Safety recommends stay poles on 40 ft. ladders even though NFPA lists them as optional
• Stay poles are standard on 45 ft. and 50 ft. ladders
• Prong feet are standard
• Rubber safety feet for an additional fee
|
Sections | Size | Closed Length | Width | Width Over Poles | Banking Thickness | Weight |
|---|---|---|---|---|---|---|
|
2 |
14 ft |
9' .75" |
24" |
n/a |
7" |
74 lbs |
|
2 |
16 ft |
10' .75" |
24" |
n/a |
7" |
75 lbs |
|
2 |
18 ft |
11' .75" |
24" |
n/a |
7" |
76 lbs |
|
2 |
20 ft |
12' .75" |
24" |
n/a |
7" |
78 lbs |
|
2 |
24 ft |
14' .625" |
24" |
n/a |
7" |
90 lbs |
|
2 |
28 ft |
16' .625" |
24" |
n/a |
8" |
112 lbs |
|
2 |
30 ft |
18' .75" |
24" |
n/a |
8" |
131 lbs |
|
2 |
35 ft |
20' |
24" |
n/a |
8" |
153 lbs |
|
2 |
40 ft |
23' .75" |
24" |
26" |
8" |
210 lbs |
|
2 |
45 ft |
26' .75" |
24" |
26" |
9" |
255 lbs |
|
2 |
50 ft |
28' .75" |
24" |
26" |
9" |
279 lbs |
* Weight without poles deduct approx. 35 lbs. for each pole
All dimensions listed are N.F.P.A. Design Verification Standards. Variations occur in each product of approximately +/- .125" due to the type of rivets, nuts, bolts etc. used. If you require precise dimensions, please Contact Us.
