TRACTEL Griphoist Rescue Kit
The Tractel Griphoist Rescue Kit is a man portable manual hoist with traversing wire rope that can lift, pull and place loads across great distances with extreme precision without exceeding the maximum working load limit. The lever operated wire rope hoist is suitable for use in applications including: Vehicle Extrication, Confined Space Rescue, Building Collapse and Man In Machine rRescues. These hoists are portable, strong and can be used in any orientation. The design of these hoists allow for a virtually unlimited lift or pull, the limit of which is determined only by the length of wire rope inserted into it.
- Works in any position (horizontal, vertical or angled)
- Use with unlimited length of wire rope
- Easy rigging and set-up
- No 'jerking' motion when moving load
- Easy to use, heavy duty, and powerful
- Increase load capacity with deflection sheaves
- Overload protection
- High mechanical advantage
- Simple change in direction by transferring handle from one lever to another
- Simple design allows for easy maintenance and cleaning
- Designed to work in the harshest environments
| Model | TU-17 | TU-28 | TU-32 |
| Rope travel/ stroke (in.) | 2 | 1.4 | 5 |
| Nominal Capacity (lbs). | 2,000 | 4,000 | 8,000 |
| Hoist Weight (lbs.) | 18.5 | 41 | 59.5 |
| Wire Rope Length | 60 ft. | 60 ft. | 60 ft. |
| Dimentions (in.) | 20.75 x 9.75 x 4.5 | 26 x 13 x 5.75 | 27 x 13 x 6.125 |
| Handle Extended/Closed (in.) | 28 / 18 | 45 / 26 | 45 / 26 |
| Wire Rope Dia. (in.) | 5/16 | 7/16 | 5/8 |
| Min. Wire Rope Breaking (lbs.) | 10,000 | 20,000 | 40,000 |
| Rescue Kit Weight (lbs.) | 56 | 128 | 165 |

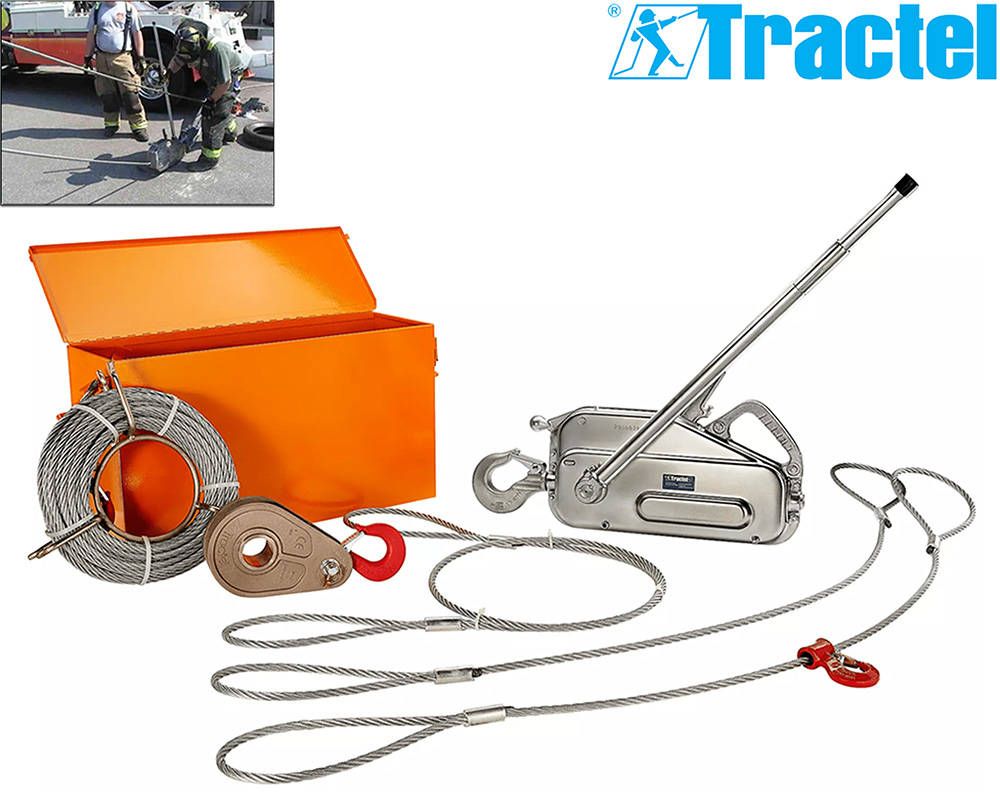

Rescue Kit Includes:
• Steel Storage Box
o Length: 38 in.
o Width: 9 in.
o Height: 14.5 in.
• TU Series Hoist as listed
• 60 ft. wire rope w/ safety hook
• Wire rope carrying reel
• Telescopic hoist handle
• Snatch block pulley
• 6 ft. wire rope sling w/ choker hook
• 6 ft. wire rope sling
• 9 ft. wire rope sling
SHIPPING NOTE: Due to the size/weight of the TU-28 and TU-32 Rescue Kits, shipping/truck delivery may be the best option. There will be no shipping charges shown for these two Rescue Kits at checkout. You may complete your order online or use the "Request A Quote" payment option at checkout. A First Out Rescue Equipment specialist will contact you to make delivery arrangements and give you the final cost of your order, including actual freight charges.
