TFT Working Fire Nozzle

TFT - Task Force Tips

The TFT Working Fire nozzle delivers revolutionary performance when you need maximum flows for a “working fire.” For everyday use, it is a 150 GPM @ 75 psi or 160 GPM @ 50 PSI fixed GPM nozzle, but when you need even more GPM, the nozzle’s exclusive pressure relief system dramatically limits nozzle reaction.

At low flows, just like every other fixed GPM nozzle, it is clear from the stream quality that optimum flow has not yet been reached. When you achieve the rated flow of the nozzle, it operates as any other 160@ 50 or 150 @ 75 fixed flow nozzle.  However, when you need more GPM, this is where the Working Fire Nozzle excels.

By integrating pressure relief, reaction force is limited when flow rate increases above the rated 160 or 150 gpm respectively.  The Working Fire Nozzle provides you up to 45% less nozzle reaction force at higher flows.

The Pressure Relief Feature is only active above 150 GPM or 160 GPM and limits reaction forces when GPM increases above the rated 150 GPM or 160 GPM. The Working Fire Nozzle is designed to send more water to the seat of the fire when you need it and still have a manageable attack line.

The Working Fire Fixed Flow Hybrid Nozzle Design from TFT delivers:
•    150 GPM @ 75 PSI or 160 GPM @ 50 PSI for Initial Attack per NFPA 1964 (2018)
•    Limits Reaction Force at Higher GPM unlike Standard Fixed Flow Nozzles
•    Reduced Nozzle Pressure at flows below 150 GPM unlike Standard Automatic Nozzles
•    Individual serial numbered
•    Five year warranty





WORKING FIRE Nozzle

150 GPM @ 75 PSI



Standard Fixed Flow Nozzle

150 GPM @ 75 PSI

GPM

Reaction Force

GPM

Reaction Force
150 65 lbs.   150 65 lbs.
185 80 lbs.    185  99 lbs.
200  87 lbs    200  116 lbs.

33% Increase in Flow

Equals a 33% Increase

in Reaction Force

    33% Increase in Flow

Equals a 78% Increase

in Reaction Force

WORKING FIRE Nozzle

160 GPM @ 50 PSI



Standard Fixed Flow Nozzle

160 GPM @ 50 PSI

GPM

Reaction Force



GPM

Reaction Force

160

 57 lbs.



160

 57 lbs.

 185

 66 lbs.



 185

 76 lbs.

 200

 71 lbs.



 200

 89 lbs.

25% Increase in Flow

Equals a 25% Increase

in Reaction Force



25% Increase in Flow

Equals a 56% Increase

in Reaction Force



Some of the common challenges solved by the Working Fire Nozzle:
•    “We want higher GPM with lower reaction force”
•    “We are experiencing a lot of hose kinks after we switched to 50 psi nozzles”
•    “We can’t afford to switch the entire department to kink resistant hose”
•    “We need to at least hit the NFPA 1710 minimum 150 gpm”
•    “ We want to flow more than the NFPA 1710 150 gpm minimum”
•    “ If our fixed GPM nozzles are over pumped, the reaction force sky rockets”
•    “Our 100 psi nozzles have way too much reaction force for our minimum staffig”

Nozzle Configurations:
•    Tip only (pair with TFT Ball Valve Shut-Off F140F)
•    One piece nozzle (no pistol grip)
•    Break Apart Nozzle (with pistol grip)

Style Weight Body Size Inlet Coupling
Tip Only 2.8 lbs. 1.5"   1.5" full-time swivel
Nozzle 4.9 lbs.
Nozzle w/ Pistol Grip 5.15 lbs.

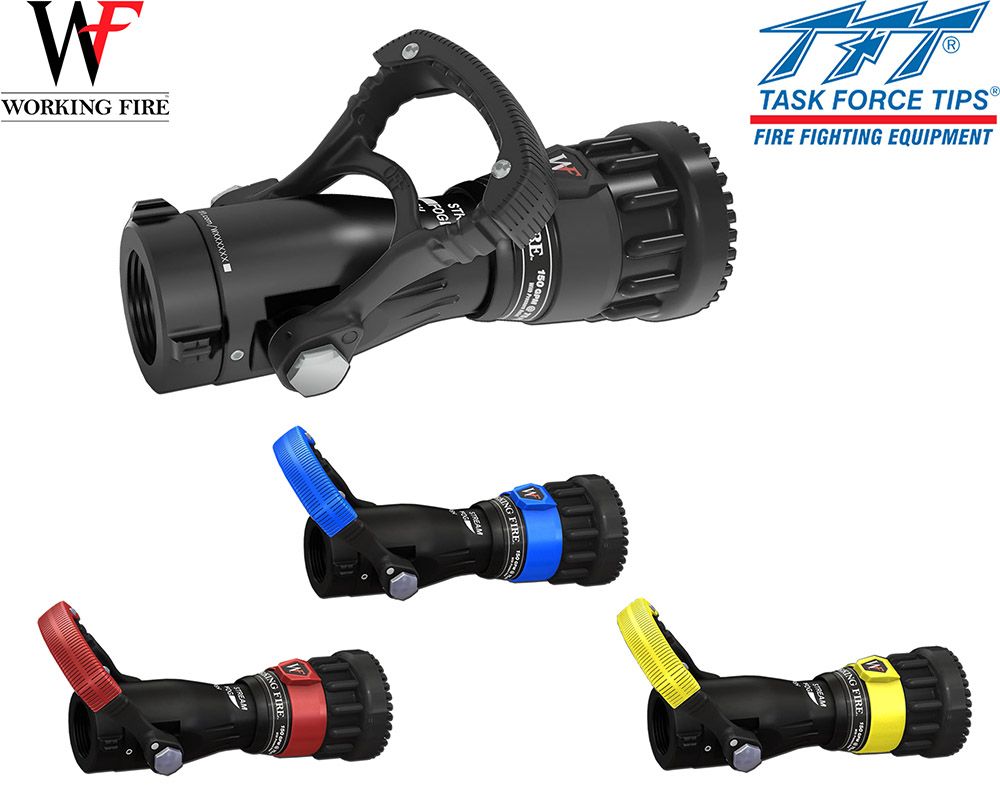

Color Coding:
•    Used to match hose colors and/or pump panel discharge labels
•    Changes the color of the pistol grip (if equipped), bail handle and indicator ring
•    Colors: Black, Blue, Red, Yellow

View TFT Working Fire Nozzle Product Sheet [PDF]

Add product to cart
SKU Price Qty
TFT-WF-XX
$901.00
