TFT - Mid-Matic Nozzle
TFT - Task Force Tips

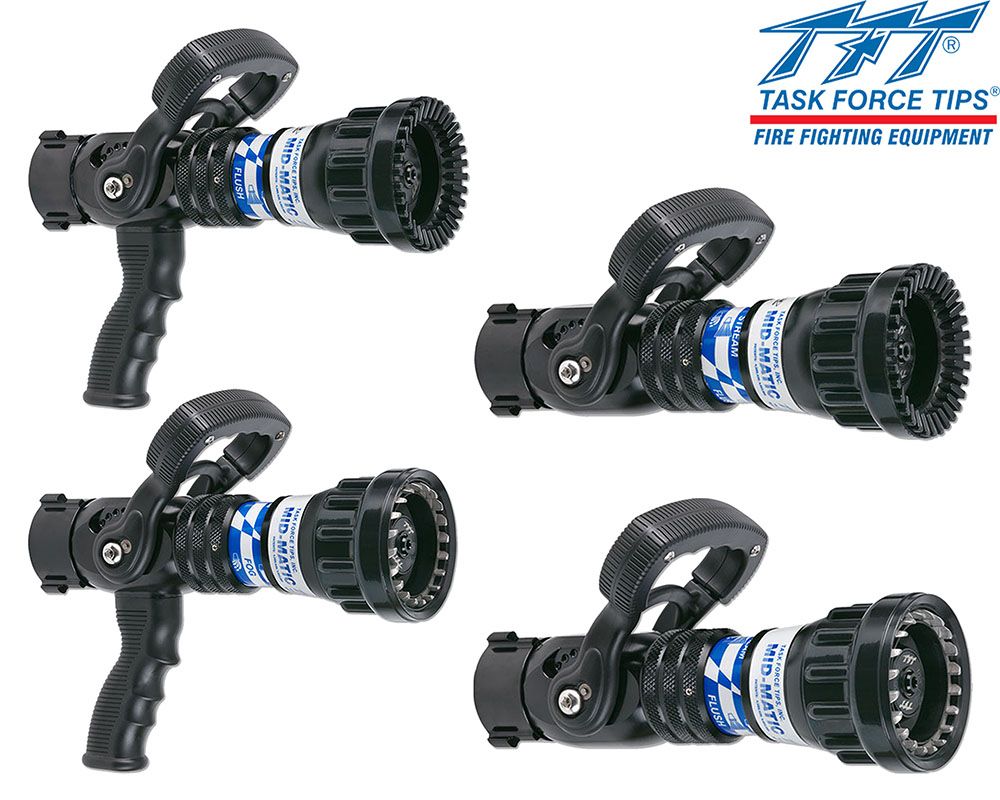

MID-MATIC NOZZLE 100 PSI 1.5" NH (38mm)
Automatic nozzle with a flow capacity of 70-200 gpm (260-760 l/min). Includes flush without shutting down, patented slide-type valve for turbulence-free flow control, six detent flow positions, and "Gasket Grabber" inlet screen. Lightweight hardcoat anodized aluminum for maximum resistance to corrosion and wear. Rocker lug 1.5" NH (38mm) full-time swivel coupling is standard. FM Approved.
| Feature | Details |
| Flow Control Method |
Automatic (constant pressure, variable flow, constant gallonage) Flow does not change with pattern. |
| Flow Rate | 70-200 gpm (260-760 l/min) |
| Coupling Size | 1 1/2 inch (38mm) |
| Coupling Style | Rocker |
| Coupling | Swivel (full time, even after tightening) |
| Pressure | 100 psi (7bar) |
| Nozzle Body Style | Nozzle with shutoff (with or without pistol grip) |
| Valve Design | Slide Valve (Stainless) |
| Valve Actuation Method | Horseshoe (Injection Molded Nylon w/ Colored Handle) |
| Fog Pattern Method | Molded Rubber Teeth (fixed) or Stainless Steel (spinning) |
| Nozzle Bumper Material | Rubber - bonded |
| Certifications | NFPA/FM |
| Available Pistol Grip and Handle Colors: | |
| Black (Std.) | Blue |
| Green | Orange |
| Red | White |
| Yellow | - |
