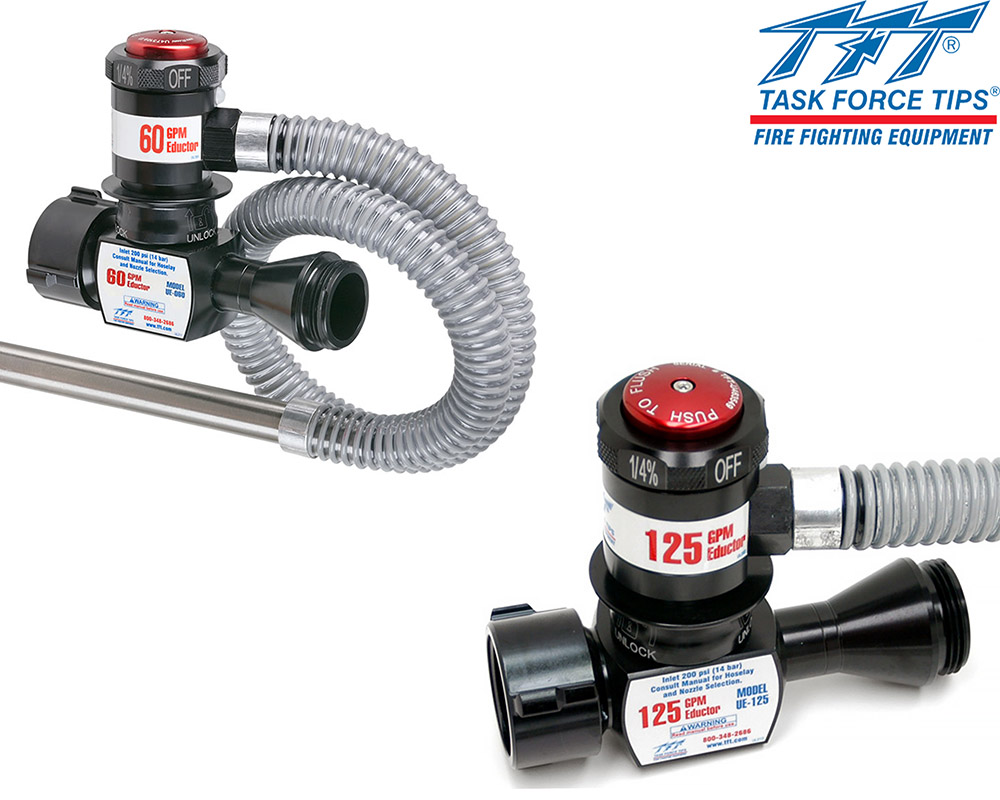

TFT Foam Eductor

The TFT Foam Eductors feature a large, easy-to-change, and simple-to-read injection rate metering head with indicators allowing for accurate mixing of Class A foam at ¼ and ½ %, and AFFF, or AFFF-AR foam concentrates at 1%, 3%, or 6%.

The extra-large 36” pickup hose and stainless steel wand are designed for use with all types of foams, including the thicker alcohol resistant concentrate which is easily and accurately picked up and injected into the hose line.

Unique push-button backflush feature allows for easy flushing of foam residue from the eductor, assuring functionality during the next operation. Quick Release Locker Ring allows eductor body to be detached from the metering head for easy storage.

•   Designed for easy use with gloves
•   Maximum allowable back pressure is 130 psi (9 Bar)
•   Weight: 4.5 lbs.
•   Length: 7.8”
•   Height: 6.5”
•   Flow Rates: 60, 95 or 125 GPM
•   Inlet: Choice of 1.5” NH or 2.5” NH
•   Outlet: 1.5” NH is standard
