Husky Leading Edge Tank - Aluminum Frame

Husky Containment

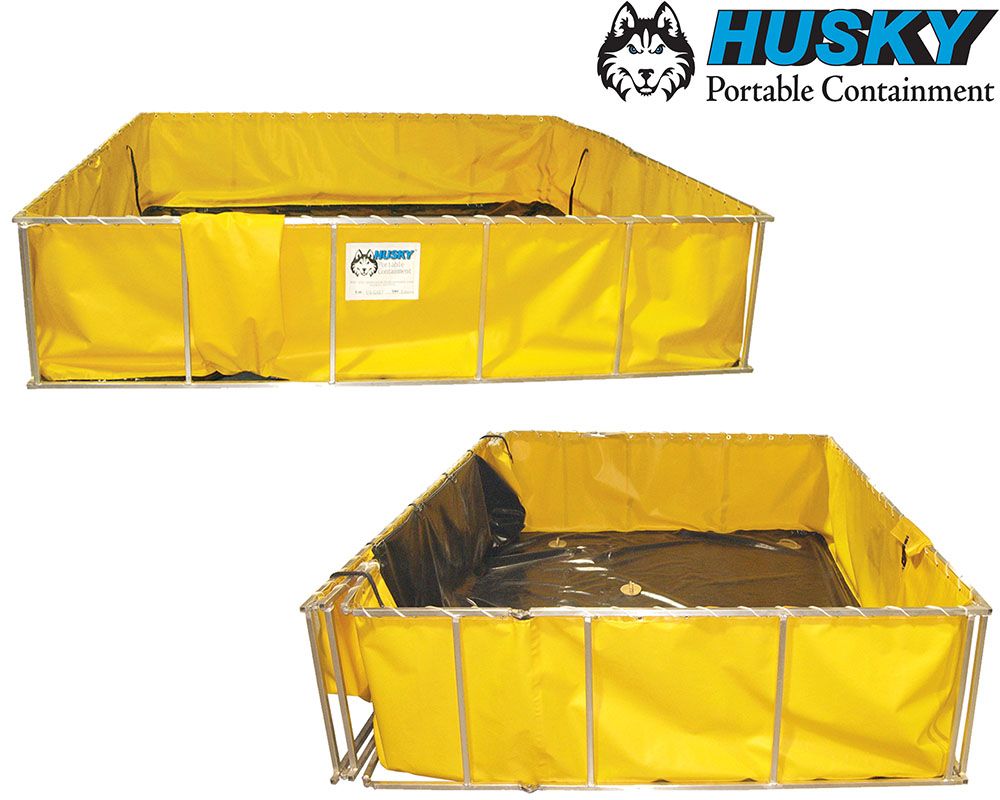

Husky’s Leading Edge Tank is the multipurpose tank design of the future.  Built as a standard tank, the  Leading Edge Tank can also be transformed into a narrower tank if needed. Husky has designed the frame to allow one side to be folded to create a narrower tank giving you added versatility for narrow rural roads or tight. cramped dump-sites.  The best part is that there is no assembly!  The Leading Edge Tank works just like a standard folding frame tank, but folds one more time. If you do not need the narrow-style tank, keep it as a full-size folding frame tank. You get the best of both tanks in one easy-to-use tank. Perfect for narrow roads with limited or no shoulder.

Husky's port-a-tank liners are designed so there are no bulky corners or sagging liner. The manufacturing process (patent pending) allows the use one continuous piece of material for the side panel, which is then welded to the floor material. Solid brass grommets are installed in a tight pattern, to alleviate any liner drooping at the frame. These features create the best fitting, most durable liner available.

Lifetime Warranty:
HUSKY will repair or replace any tank if a seam or weld comes apart or breaks. You can feel secure and safe with your portable tanks. Put A Husky On Your Team Today!

Quick Release Drain Tube:
The Husky Quick Release Drain Tube offers quick and easy attachment and detachment of the 10" drain tube.  The drain tube is secured with high tensile strength webbing using a durable heavy duty stainless steel buckle.  No more rope or knots that become impossible to untie in cold weather.  Husky drain tubes are mounted on the outside of the tank for easy access and draining.  Drain Tubes can be located on the inside of the tank but must be specified at the time of order (see ordering options below).



Husky's Easy Lift Handles:
With the heavy-duty handles attached to the floor of the tank, tear-down not only takes less effort, but also saves valuable time and man-power. Husky Easy Lift Handles are made with the same attention to quality and durability that makes Husky famous. All Husky Folding Frame Tanks come equipped standard with Easy Lift Handles where other manufacturers offer them as an option.




Aluminum Frames:
ALL HUSKY folding tanks feature superior heavy duty laser cut hinge design in either steel or aluminum frames.  The pinch free hinge design and heavy duty Mig welded construction come with a lifetime warranty on frame construction.
•    1" x 1" x 1/8" 6061 Square Tube Aluminum
•    Aluminum frame provides a 25% weight savings over steel and will not rust

Husky-Tough Vinyl Liners:
•    22 oz.

•    22 oz. sides with a 28 oz. floor
•    30 oz. Vinyl liners are available in a variety of colors and in NSF 61 approved 30 oz. potable material or chemical and fuel resistant materials that are great for oil spill clean-up or petroleum storage.

EXLON® Liner:
22 oz. Exlon is new from Husky Portable containment and has been designed to replace DuPont's discontinued Hypalon liner material. EXLON® was designed with UV resistance, heat resistance, abrasion, puncture resistance and excellent cold cracking qualities in mind allowing Husky to offer the best folding tank liner material on the market. EXLON® comes with a ten year warranty against UV and weather elements.

Double Folding Frame:
Water Tanks for the user that has limited storage space. These unique frame tanks have a second folding point on the long side of the frame allowing you to fold the frame tank one more time cutting the overall length in half. Just pull the special heavy duty pins from the laser cut hinges and fold your tank again. The pins are secured to the frame to assure they will not be lost.

Quick Dump Feature:
Husky Portable Containment's "Quick Dump" is the answer to getting your folding frame tank emptied quickly when the fire scene is in its tear down stages. Just release the d-rings and latch and watch your tank drain in about 20-30 seconds.



Reflective Edge
The Reflective Edge option adds a reflective trim on the top hem of the liner to help increase visibility of the tank at night. When any light hits the reflective edge it acts just like the reflective lettering on your turnout gear. It is easy for your tank to disappear in the night and in the heat of the moment more than one driver has accidentally backed into the tank damaging or destroying it. Help save your tank today with the Reflective Edge.

Lifetime Warranty:
HUSKY will repair or replace any tank if a seam or weld comes apart or breaks. You can feel secure and safe with Husky portable tanks. Put A Husky On Your Team Today

Available Options:
•    Additional Drain Tubes
•    Additional Easy Lift Handles
•    Quick Dump
•    Clear View Panel to view water level on side of tank
•    Reflective Edge
•    Custom Labeling (Capacity, Dept./Agency Name, etc...

Capacity

(Gal.)

Number of

Drain Sleeves

Easy Lift

Handles

1500 - 2100
1  7
2500 -3000
2  6
3500 - 5000
2  7

Additional drain sleeves and Easy Lift Handles are available.  See custom ordering options below.

Capacity

(Std.)

Open

Dimensions (Std.)

Capacity

(Narrow)

Open

(Skinny)

Folded

Dimensions

Weight (lbs.)

Easy Lift

Handles

1500 Gal. 10' 3" x 10' 3" x 29" 1450 Gal. 8" x 10' 3" x 29" 10' 3" x 7" x 29" 114  7
2100 Gal. 11' 3" x 11' 3" x 29" 1620 Gal. 8" x 11' 3" x 29"  11' 3" x 7" x 29"  129  7
2500 Gal. 12' 3" x 12' 3" x 29" 1750 Gal. 8" x 12' 3" x 29"  12' 3" x 7" x 29"  140  6
3000 Gal. 13' 3" x 13' 3" x 29" 1900 Gal. 8" x 13' 3" x 29" 13' 3" x 7" x 29"  154  6
3500 Gal. 14' 3" x 14' 3" x 29" 2050 Gal. 8" x 14' 3" x 29" 13' 3" x 7" x 29"  172  7

SHIPPING NOTE: Due to the size/weight of this product, shipping/truck delivery must be arranged by phone or email. You may complete your order online, however there will be no shipping charges displayed at checkout.  A First Out Rescue specialist will contact you to make delivery arrangements and give you the final cost for your order including freight charges.
