HEN Blade Series Nozzle
HEN Nozzles
HEN adjustable smoothbore nozzles have the reach and penetration of traditional smoothbore nozzles along with the ability to switch to an in-line blade pattern. A simple quarter turn converts the tight solid stream into a solid in-line blade stream. Both stream choices deliver large droplet patterns at a constant gallonage. HEN Blade Nozzles are available in GPM settings ranging from 20 to 265 GPM.

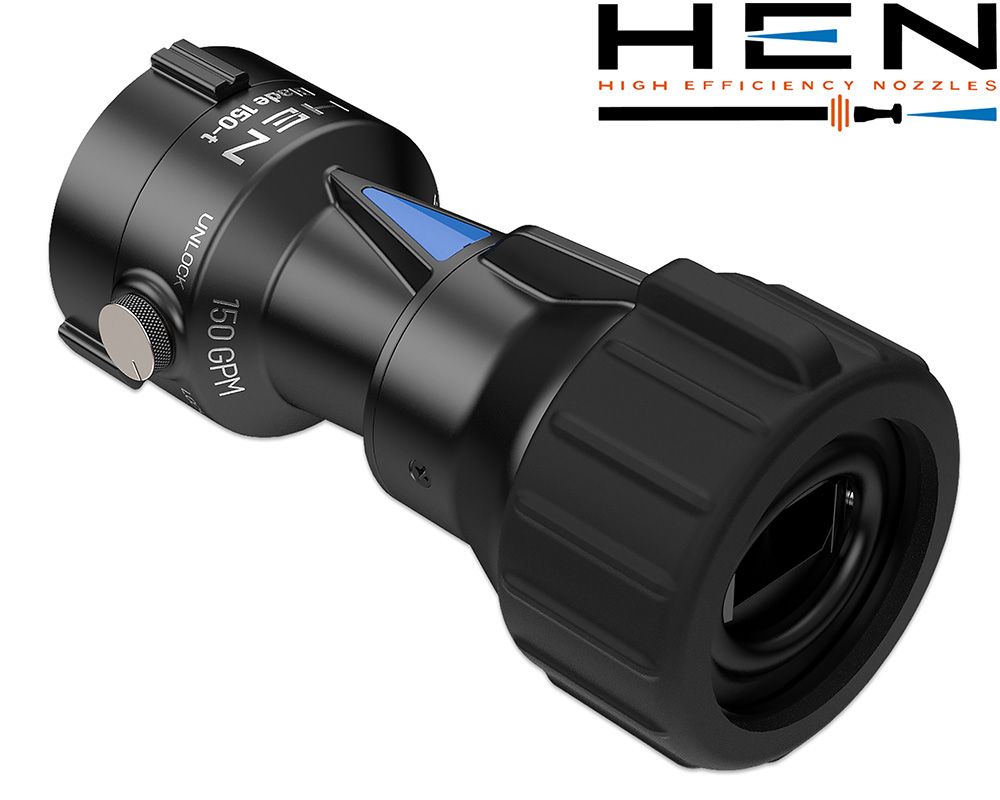

| HEN BLADE NOZZLE - 150 GPM @ 75 psi |
| A Deep Dive into HEN Nozzles: Blade, Hydro, and Turbo |
Key Features:
• Quarter-turn from solid tight to solid blade pattern
• Ergonomic design and heavy-duty construction
• Optimized placement and droplet size
• Aluminum alloy body for maximum durability
• NFPA 1964 compliant
| Nozzle | GPM | Pressure (PSI) | Swivel Lock | Inlet Size | Weight | Length | Compatable Shutoff | Inlet Thread |
| Blade 20-t | 20 | 100 | No | 1" | 0.88 lb. | 4.96" | HYDRO-100 |
NH or NPSH |
| Blade 45-t | 45 | 100 | No | 1" or 1.5" | 0.9 lb./1.0 lb. | 5.2"/5.53" | HYDRO-100 | |
| Blade 95-t | 95 | 100 | No | 1.5" | 1.2 lb. | 5.68" | HYDRO-100 | |
| Blade 150-t | 150 | 75 | Yes | 1.5" | 1.7 lb. | 6.58" | HYDRO-138 | |
| Blade 160-t | 160 | 50 | Yes | 1.5" | 1.7 lb. | 6.59" | HYDRO 138 or HYDRO FORCE 138 | |
| Blade 185-t | 185 | 50 | Yes | 1.5" | 1.7 lb. | 6.59" |
or |
|
| Blade 265-t | 265 | 50 | Yes | 1.5" or 2.5" | 1.9 lb./2.45 lb. | 6.98"/7.77" |
HYDRO 138 or |
|
| Blade Force 175 | 175 | 45 | Yes | 1.5" | 1.7 lb. | 6.59 | HYDRO FORCE 138 | |
| Blade Force 250 | 250 | 45 | Yes | 2.5" | 2.45 lb. | 7.77" | HYDRO FORCE 138 |
