Heavy Duty JAYMAZ Stand Pipe Kit

First Out Rescue

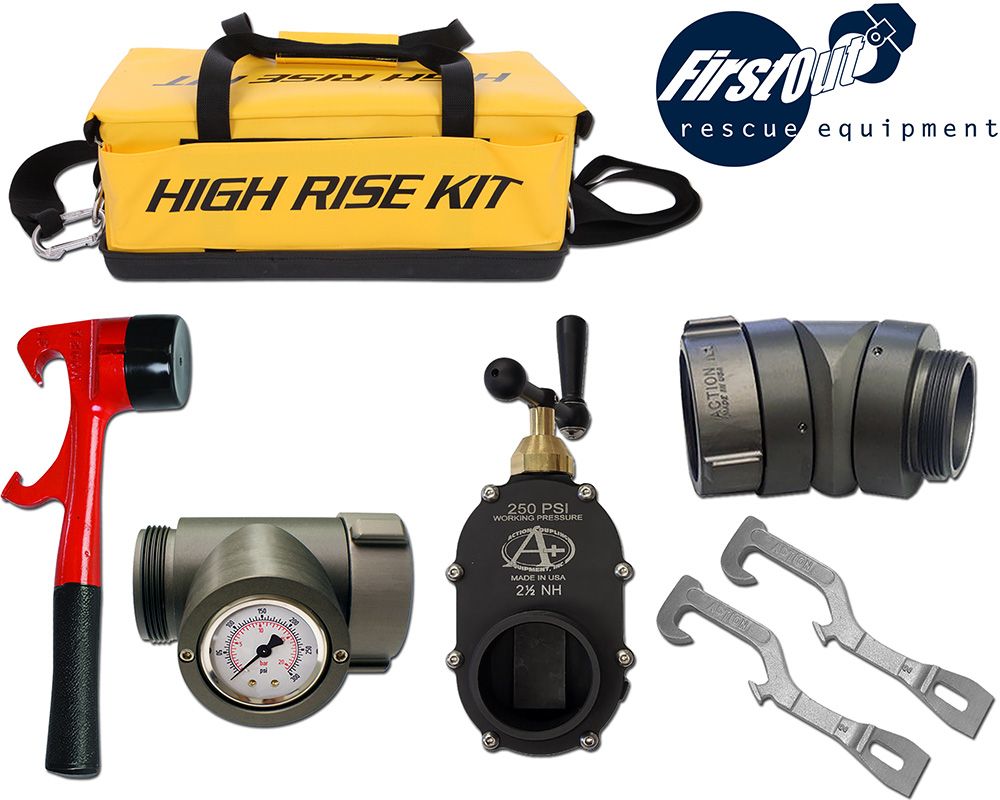

The First Out Rescue Equipment JAYMAZ STANDPIPE KIT has been configured with high quality components that have been proven in the field.  Carry everything you need in one bag to establish a standpipe connection in this heavy duty kit bag that can stand up to the rigors of the most demanding fire ground operations.

Total Kit Weight:  Approximately 21 lbs.

R & B Fabrications High-Rise Bag:
Constructed with R&B Fabrication's "Tuff Bottom" for superior durability.  Outside walls of the bag are constructed of heavy duty, reinforced vinyl.  An internal rigid plastic insert supports the bag and helps protect the contents. This bag will hold a pipe wrench, spanner wrench, flow-thru pressure gauge, gate valve, wedges, adapters, door straps and rope.
•    Dimensions: 25"L X 13"W X 13"H
•    Weight: 9 lbs.
•    Color:  Yellow

#21 Jr. Span-Hammer:
The smaller version of the Full Size Span-Hammer, the Jr. Span-Hammer is perfect for those tight areas on the pump panel and for standpipe operations breaking loose frozen hose connections. The No-Mar striking face is perfect for seating long eared swivels, caps and other fittings. The spanner wrench works on pin lug and rocker lug connections up to 3".
•    Aluminum alloy casting
•    Tough, Replaceable, polyurethane striking cap
•    Pebble grain grip handle
•    Dimensions: 2 5/8” dia. x 13" long
•    Weight: 2.25 lbs.

In-Line Protected Gauge:
Made for standpipe use, with a fully enclosed gauge to protect against damage.  The Gauge body is made from 6061-T6 aluminum alloy and is hard-coated for durability.
•    Rocker lug female connection
•    2.5” NH thread (1.5” thread also available)
•    Glycerine filled gauge registers 0 to 300 PSI
•    Weight: 2.7 lbs.

Gate Valve:
This high-strength gate valve features a lightweight aluminum wedge seat and a brass non-rising stem and crank handle.  2.5" NST female inlet and a 2.5" NST male outlet.  Made in the USA.  Weight: 5.3 lbs.

450 Lightweight Elbow
•    2.5” NH threads
•    Reduce hose kinks

Universal Spanner Wrench
For use in multiple applications, such as but not limited to:
•    Rocker lug type couplings
•    Long handle type couplings
•    Pin lug style couplings
•    Standard gas valve shutoff
•    Wide End Pry bar

Spanner Specifications:
•    Material: 356-T6 Cast Aluminum
•    Weight: 9oz.
•    Length: 11 inches
•    Width: 3 inches
