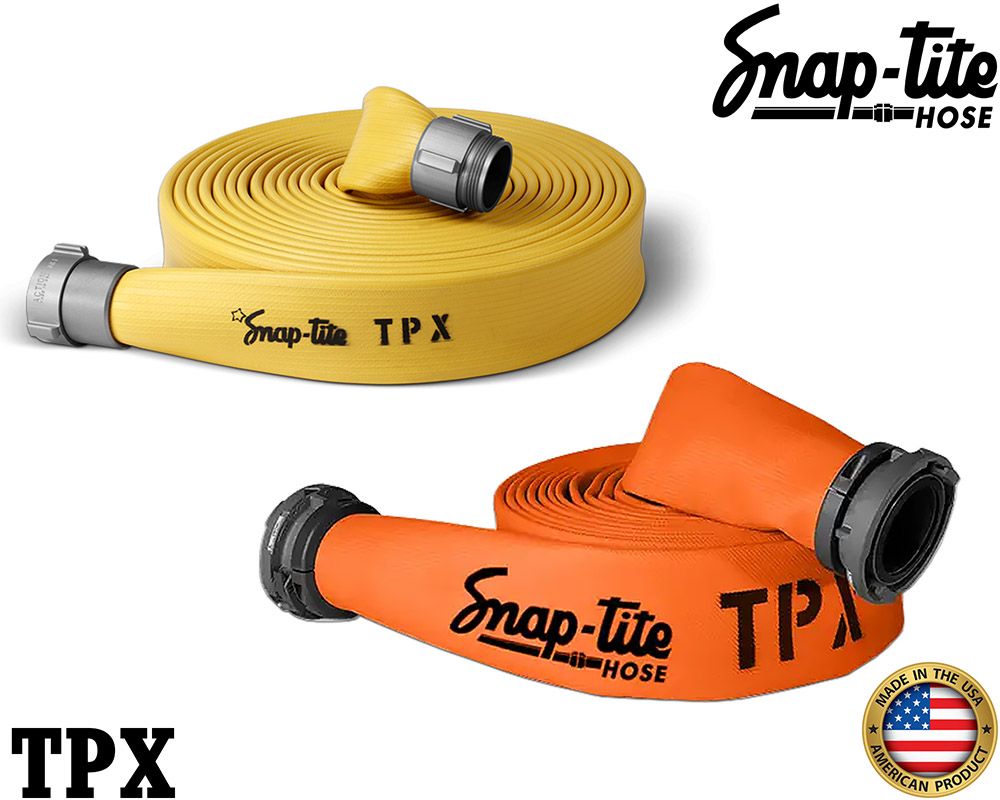

Snap-Tite TPX Hose

Snap-Tite Hose

3-PLY NITRILE RUBBER ATTACK/SUPPLY HOSE

Lean and mean, Snap-Tite TPX hose is the ultra-tough municipal rubber fire hose you have been looking for—but without the bulk and weight.  Traditionally manufactured extruded hose can vary in thickness, becoming bulky and heavy.  TPX’s unique 3-ply design features a ribbed cover and smooth nitrile liner that are extruded independently.  The cover is inserted inside the tight-weave polyester reinforcement, vulcanized, then turned inside-out. The liner is then inserted and the hose is vulcanized a second time to form a bond of all three plies, guaranteeing a consistent, compact hose wall.  This makes the lightweight TPX more resistant to puncture and easier to pack and store, requiring less hose bed space than typical extruded hose.



•    3-ply nitrile rubber hose features both cover and liner extruded independently
•    High tensile strength polyester reinforcement, for maximum durability and flexibility
•    High-Performance, smooth liner reduces friction loss for maximum flow
•    Durable Nitrile rubber cover greatly increases abrasion resistance, provides long service life and resists puncture
•    Lifetime guarantee against delamination
•    3-ply design affords incredible strength but with a lightweight profile making it easy to manage on the fireground
•    Hose remains flexible to temperatures as low as -5°F (-20°C)
•    Resistant to ozone, oxidation, and most chemicals or petroleum products
•    Versatile - Suitable for attack, supply and suction applications
•    Manufactured in accordance with NFPA 1961 Standard, latest edition within our ISO-9001 certified quality assurance system

3-Ply Construction:
•    Nitrile Rubber Cover
•    Polyester Inner Jacket
•    Nitrile Rubber Liner

Temperature Range: -5° to 200°F (-20° to 93°C)

Hose Lengths: 50 ft. and 100 ft. standard.  Contact Us to discuss custom lengths.

Hose Colors:  Yellow, Red, Orange

Standard Couplings:
•    Aluminum Rocker Lug - NH/NST thread
•    Brass Rocker Lug – NH/NST thread
•    Aluminum Storz

Customized Hose Stenciling:
•    Standard stenciling of hose is per NFPA 1961 (mfg, country origin, month & year of mfg.and service test psi)
•    Custom stencils in addition to NFPA stenciling available
•    Custom stencils (max. 25 characters at 2 places on hose).  No additional charge
•    Longer and/or more frequent custom stenciling available.  Contact Us for pricing.

SNAP-TITE TPX HOSE SPECIFICATIONS
HOSE SIZE

COUPLING SIZE

COUPLING

MATERIAL

SERVICE

TEST

PROOF

TEST

BURST

WEIGHT

(50 FT. COUPLED)

FLAT

WIDTH

Inches Inches   PSI PSI PSI Pounds Inches
2" 1.5" NH Aluminum 400 800 1,200 24 3.6"
2.5" 2.5" NH Alum. or Brass 330 660 1,000 33  4.3"
3" 2.5" NH Aluminum 300 600 950 37  5.1"
4" 4" NH or Storz Aluminum 250 500 750 46  6.6"
5" 5" NH or Storz Aluminum 225 450 675 60  8.2"

View Snap-Tite TPX Product Data Sheet [PDF]

Optional Couplings:
•    Brass Pin Lug - NH/NST thread
•    IPT thread available for rocker lug and pin lug threaded couplings.
•    3” Aluminum Storz
•    Please Contact Us to discuss your specialty coupling needs.

Note:
•    As per NFPA 1961 – The service test pressure is to be 10% greater than the “normal highest operating pressure” at which the hose is expected to be used.

SHIPPING NOTE: Due to the size/weight and potential large quantity orders of this product shipping will be quoted on a per order basis.  You may complete your order online, however there will be no shipping charges displayed at checkout.  A First Out Rescue specialist will contact you to provide you with the final cost for your order including freight charges and to make delivery arrangements.
