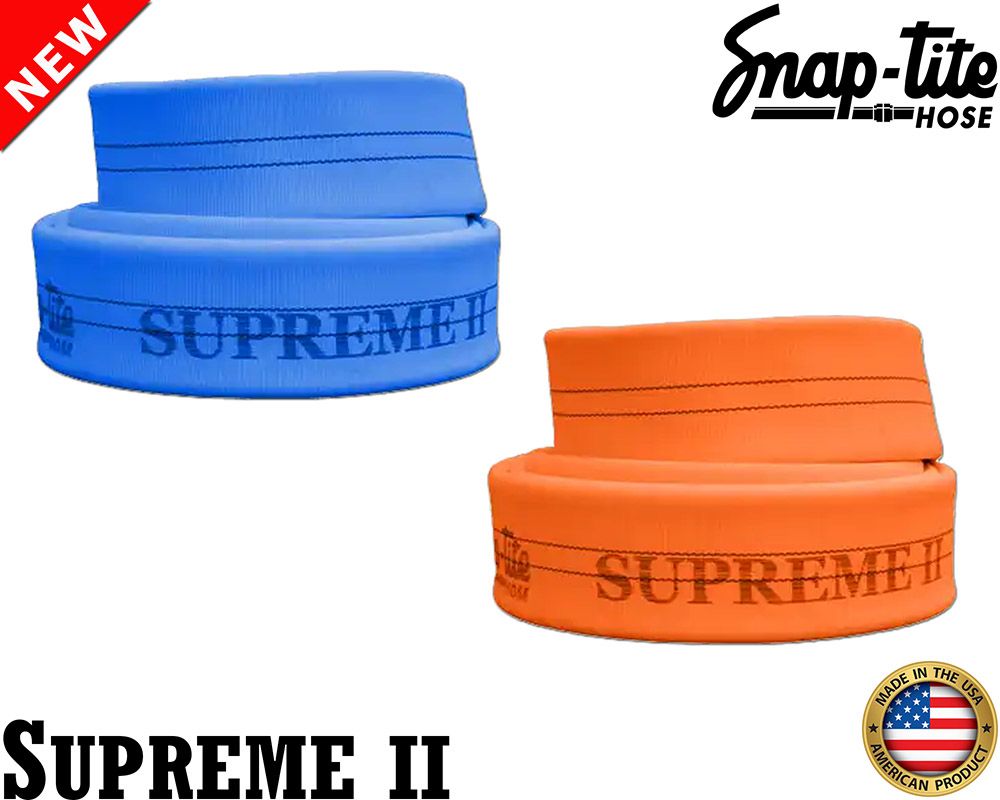

Snap-Tite Supreme II (2FS) Hose
Polyester outer jacket, extruded thru-the-weave onyx nitrile liner
Supreme™ ll is a premier double jacketed fire hose and one of the best values on the market today. Originally designed over 40 years ago, Supreme™ has become the hose to which all others are compared. With hose sizes up to 3” and manufactured to exacting standards, Supreme™ ll features a polyester outer jacket that encompasses an onyx nitrile rubber thru-the-weave liner. Performing well at high and low pressures, Supreme™ ll has a smooth and enhanced waterway for better flow and less kinking.
Features:
• Premium quality outside polyester jacket with onyx nitrile rubber thru-the-weave liner construction.
• Constructed from 100% high tensile strength ring-spun polyester yarn
• Liner is attached to the inner jacket using a vulcanized calendared rubber backing
• Mechanical and chemically bonds the onyx rubber lining to the inside jacket
• No adhesive used assuring the lining will never delaminate.
• Remains flexible at temperatures as low as -40°F (-40°C)
• Resistant to ozone and oxidation.
• Kink resistance exceeds that of lightweight jacketed hose.
• Suitable for use with CAFS and foam solutions.
• Certified and manufactured in accordance with NFPA 1960 Standard
• ISO-9001 certified quality assurance system.
• Made in the USA
• Potable water approved: No
Rugged Durability: Standard Dura-Cote™ protective treatment greatly increases abrasion, heat, flame and petrochemical resistance while virtually eliminating water pick-up. The coating protects from mildew and no drying is required.
Temperature Range: -40° to 150°F (-40° to 65°C)
Warranty:
• Free from defects in materials or workmanship over a period of ten (10) years from the original date of shipment.
• 2-Year all hazard warranty
• Lifetime warranty against delamination
Hose Lengths: 50 ft. and 100 ft. standard. Contact Us to discuss custom lengths.
Standard Hose Colors: Yellow, Red, Blue, Orange, Green, White.
Special Order Hose Colors: Tan and Purple. (400 ft. min. qty. same color/size)
Stripe Colors: Yellow, Red, Blue, Black, Green. (400 ft. min. qty. same color/size)
NOTE: Not all stripe colors are available with all hose sizes & colors.
Couplings:
• Aluminum Rocker Lug - NH/NST thread
• IPT thread is available for rocker lug threaded couplings. Contact Us for pricing.
Customized Hose Stenciling:
• Standard NFPA 1961 stenciling: mfg, country origin, month & year of mfg. and service test psi
• Custom stencils in addition to NFPA stenciling available
• Custom stencils (max. 25 characters at 2 places on hose). No additional charge
• Longer and/or more frequent custom stenciling available. Contact Us for pricing.
| SNAP-TITE SUPREME II HOSE SPECIFICATIONS | |||||||
| HOSE SIZE |
COUPLING SIZE |
COUPLING MATERIAL |
SERVICE TEST |
PROOF TEST |
BURST |
WEIGHT (50 FT. COUPLED) |
FLAT WIDTH |
| Inches | Inches | PSI | PSI | PSI | Pounds | Inches | |
| 1.5" | 1.5" NH | Aluminum | 400 | 800 | 1,200 | 15.6 | 2.71" |
| 1.75" | 1.5" NH | Aluminum | 400 | 800 | 1,200 | 21.5 | 3.35" |
| 2" | 1.5" NH | Aluminum | 400 | 800 | 1,200 | 25 | 3.46" |
| 2" | 2.5" NH | Aluminum | 400 | 800 | 1,200 | 28 | 3.46" |
| 2.5" | 2.5" NH | Aluminum | 400 | 800 | 1,200 | 35 | 4.33" |
| 3" | 2.5" NH | Aluminum | 400 | 800 | 1,200 | 42 | 5.19" |
| 4" | NH or Storz | Aluminum | 300 | 600 | 900 | 58 | 7.3" |
| 5" | NH or Storz | Aluminum | 300 | 600 | 900 | 69 | 8.4" |
View Snap-Tite Supreme II Attack Hose Data Sheet [PDF]
View Snap-Tite Supreme II LDH Data Sheet [PDF]
Notes:
• As per NFPA 1962 – The service test pressure is to be 10% greater than the “normal highest operating pressure” at which the hose is expected to be used.
SHIPPING NOTE: Due to the size/weight and potential large quantity orders of this product shipping will be quoted on a per order basis. You may complete your order online, however there will be no shipping charges displayed at checkout. A First Out Rescue specialist will contact you to provide you with the final cost for your order including freight charges and to make delivery arrangements.
