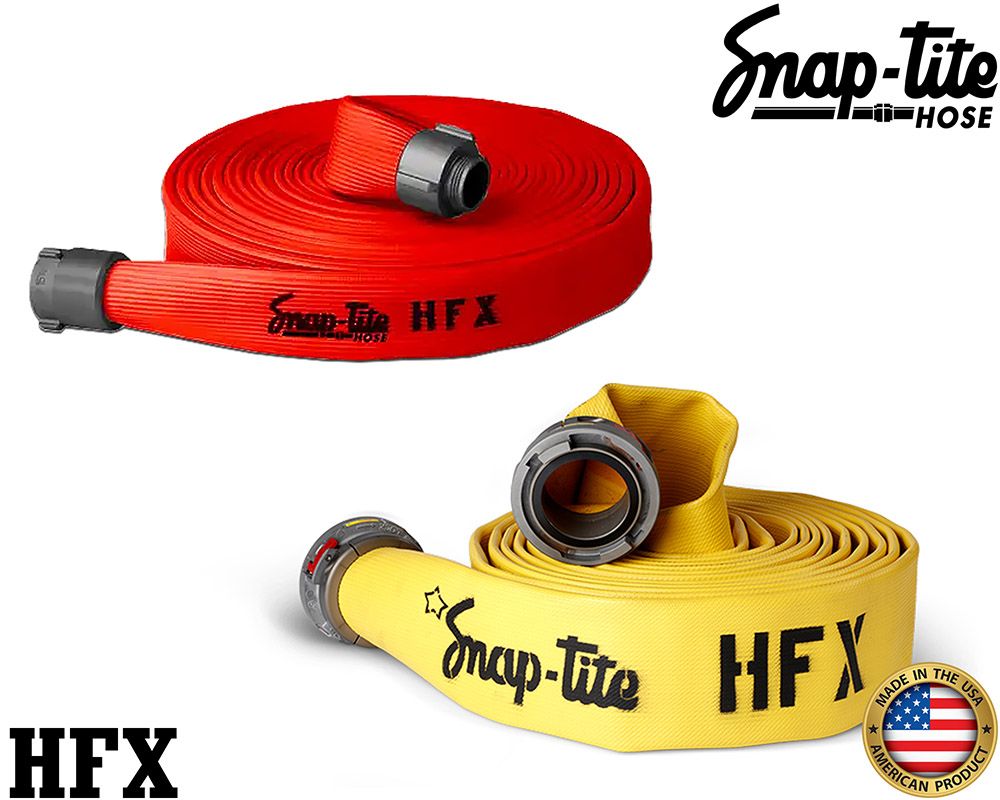

Snap-Tite HFX Hose
EXTRUDED NITRILE RUBBER ATTACK/SUPPLY HOSE
Snap-Tite HFX™ is a nitrile thru-the-weave, rubber covered fire hose that utilizes polyester and nylon 6.6 yarn in the reinforcing jacket. Under pressure, the polyester keeps the hose from snaking, while the nylon allows for controlled dilation, reducing friction loss, and generating higher flow rates.
Snap-Tites special rubber compound provides a tough cover that resists heat, abrasion, snags, and hot embers. The interlocking matrix also means no adhesives are used and there is a permanent bond to all the warp and weft yarns. Snap-Tite HFX™ is highly resistant to both conductive and radiant heat.
FEATURES:
• Suitable for attack, soft sleeve suction, and relay applications.
• Extruded thru-the-weave, nitrile rubber fire hose.
• Reinforced with a blend of circular woven, twill weave, polyester, and nylon fibers.
• Ribs on the cover greatly increase abrasion resistance and increase service life.
• Resistant to ozone, oxidation, and most chemicals/petrochemicals.
• Thru-the-weave construction provides a flexible, easy to maneuver hose that is easy to pack.
• Certified and manufactured in accordance with NFPA 1960 Standard
• ISO-9001 certified quality assurance system.
• 1.5", 1.75", and 2.5" are UL/ULC Certified
• Made in the USA
• Potable water approved: No
Temperature Range:Remains flexible at temperatures as low as -40°F (-40°C)
Warranty:
• Free from defects in materials or workmanship over a period of ten (10) years from the original date of shipment.
• Lifetime warranty against delamination
Hose Lengths: 50 ft. and 100 ft. standard. Contact Us to discuss custom lengths.
Hose Colors: Yellow, Red
Standard Couplings:
• Aluminum Rocker Lug - NH/NST thread
• Brass Rocker Lug – NH/NST thread
• Aluminum Storz
Customized Hose Stenciling:
• Standard stenciling of hose is per NFPA 1961 (mfg, country origin, month & year of mfg.and service test psi)
• Custom stencils in addition to NFPA stenciling available
• Custom stencils (max. 25 characters at 2 places on hose). No additional charge
• Longer and/or more frequent custom stenciling available. Contact Us for pricing.
| SNAP-TITE HFX HOSE SPECIFICATIONS | |||||||
| HOSE SIZE |
COUPLING SIZE |
COUPLING MATERIAL |
SERVICE TEST |
PROOF TEST |
BURST |
WEIGHT (50 FT. COUPLED) |
FLAT WIDTH |
| Inches | Inches | PSI | PSI | PSI | Pounds | Inches | |
| 1" | 1.0" NH | Aluminum | 300 | 600 | 900 | 7 | 1.75" |
| 1.5" | 1.5" NH | Alum. or Brass |
300 | 600 | 900 | 16 | 2.76" |
| 1.75" | 1.5" NH | Alum. or Brass | 300 | 600 | 900 | 19 | 3.27" |
| 2.5" | 2.5" NH | Alum. or Brass | 300 | 600 | 900 | 30 | 4.21" |
| 3" | 2.5" NH | Aluminum | 300 | 600 | 900 | 34 | 5.0" |
| 4" | 4" NH or Storz | Aluminum | 250 | 500 | 750 | 49 | 6.75" |
| 5" | 5" NH or Storz | Aluminum | 225 | 450 | 675 | 56 | 8.2" |
View Snap-Tite HFX-Attack Hose Product Data Sheet [PDF]
View Snap-Tite HFX-LDH Product Data Sheet [PDF]
Optional Couplings:
• Brass Pin Lug - NH/NST thread
• IPT thread available for rocker lug and pin lug threaded couplings.
• 3” Aluminum Storz
• Please Contact Us to discuss your specialty coupling needs.
Note:
• As per NFPA 1962 – The service test pressure is to be 10% greater than the “normal highest operating pressure” at which the hose is expected to be used.
SHIPPING NOTE: Due to the size/weight and potential large quantity orders of this product shipping will be quoted on a per order basis. You may complete your order online, however there will be no shipping charges displayed at checkout. A First Out Rescue specialist will contact you to provide you with the final cost for your order including freight charges and to make delivery arrangements.
