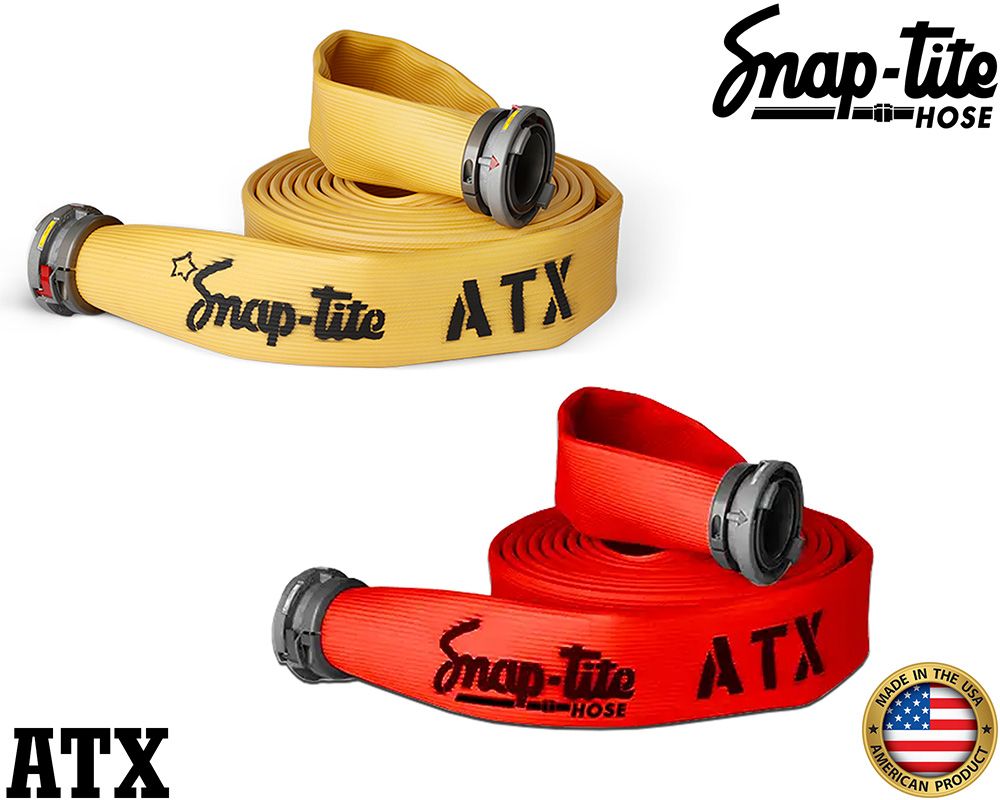

Snap-Tite ATX Hose

Snap-Tite Hose

HIGH PRESSURE EXTRUDED NITRILE RUBBER SUPPLY HOSE

ATX delivers superior performance under pressure.  ATX utilizes a 3-ply design where the cover and liner are extruded independently and are double vulcanized to guarantee a consistent, compact hose wall.  The polyester reinforcement is woven tighter, making this hose more resistant to puncture while also being easier to pack and store.  The stronger jacket increases the service test pressure of the LDH sizes to 300 psi (2070 kPa).

ATX is designed to meet and exceed the NFPA pressure requirements for supply, relay or attack operations on the fireground and is suitable for pumping to sprinklers and standpipes, industrial firefighting and supplying aerial devices.

•    Three-ply rubber hose with both the cover and liner made of heavy duty nitrile rubber
•    High tensile strength tight weave polyester reinforcement for max. durability and flexibility
•    Smooth liner keeps friction loss to a minimum for greater flow.
•    Tough Nitrile rubber cover greatly increases abrasion resistance increasing service life
•    Tightly woven reinforcement resists puncture.
•    Remains flexible to temperatures as low as -5°F (-20°C)
•    Resistant to ozone, oxidation and is highly chemically inert.
•    Versatile, suitable for attack, supply and relay applications.
•    Manufactured in accordance with NFPA 1961 Standard, latest edition within our ISO-9001 certified quality assurance system.



3-Ply Construction:
•    Nitrile Rubber Cover
•    Polyester Inner Jacket
•    Nitrile Rubber Liner

Temperature Range: -5° to 200°F (-20° to 93°C)

Hose Sizes:  4”, 5”

Hose Lengths: 50 ft. and 100 ft. standard.  Contact Us to discuss custom lengths.

Hose Colors:  Yellow, Red, Orange

Standard Couplings:
•    Aluminum Rocker Lug - NH/NST thread
•    Aluminum Storz

Customized Hose Stenciling:
•    Standard stenciling of hose is per NFPA 1961 (mfg, country origin, month & year of mfg.and service test psi)
•    Custom stencils in addition to NFPA stenciling available
•    Custom stencils (max. 25 characters at 2 places on hose).  No additional charge
•    Longer and/or more frequent custom stenciling available. Contact Us for pricing.

SNAP-TITE ATX HOSE SPECIFICATIONS
HOSE SIZE

COUPLING SIZE

COUPLING MATERIAL

SERVICE

TEST

PROOF

TEST

BURST

WEIGHT

(50 FT. COUPLED)

FLAT

WIDTH

Inches Inches   PSI PSI PSI Pounds Inches
4" 4" NH or Storz Aluminum 300 600 900 60  7.0"
5" 5" NH or Storz Aluminum 300 600 900 84  8.75"

View Snap-Tite ATX Product Data Sheet [PDF]

Optional Couplings:
•    IPT thread available for rocker lug threaded couplings.
•    Please Contact Us to discuss your specialty coupling needs.

Notes:
•    As per NFPA 1961 – The service test pressure is to be 10% greater than the “normal highest operating pressure” at which the hose is expected to be used.

SHIPPING NOTE: Due to the size/weight and potential large quantity orders of this product shipping will be quoted on a per order basis.  You may complete your order online, however there will be no shipping charges displayed at checkout.  A First Out Rescue specialist will contact you to provide you with the final cost for your order including freight charges and to make delivery arrangements.



Maximum 25 characters

Add product to cart
SKU Price Qty
STH-ATX-XX
$939.00
