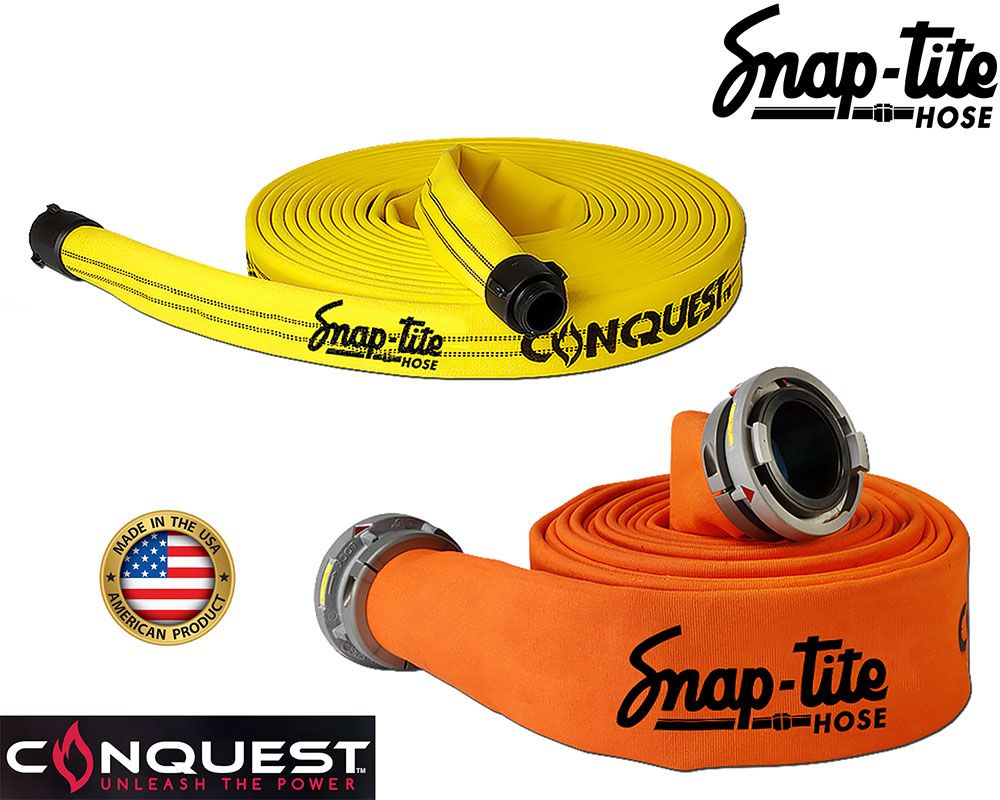

Snap-Tite Conquest (FC) Hose
POLYESTER DOUBLE JACKET ATTACK and SUPPLY HOSE
Today’s fires are hotter—so more water is needed at the nozzle to knock them down fast. Snap-Tite Conquest hose rises to the challenge with a patented thru-the-weave extruded polyurethane liner with a smooth surface that delivers maximum water flow. Conquest features friction loss reductions of up to 50% more compared to other hose designs, delivering more water at standard operating pressure.
Construction
• Polyester Double Jacket
• Extruded Polyurethane Inner Liner (thru-the-weave)
• Patented double jacket fire hose made from 100% high tensile strength ring-spun polyester outer jacket
• Extruded thru-the-weave polyurethane inner hose.
• NO adhesive is used. The lining will never delaminate.
• Meets all NFPA requirements for ozone resistance
• Passes 18" doorway kink test at 75 psi (1¾" diameter Conquest)
• Suitable for CAFS and foam concentrates
• Potable Water Approved: Yes
• Lining meets NSF/ANSI Standard 61 for drinking water
• Certified & manufactured to NFPA 1960 Standard, latest edition
• ISO-9001 certified quality assurance system
• 1-3/4” and 2-1/2” are UL/ULC Certified.
Rugged Durability: Standard Dura-Cote™ protective treatment greatly increases abrasion, heat, flame and petrochemical resistance while virtually eliminating water pick-up. The coating protects from mildew and no drying is required.
Temperature Range: -40° to 150°F (-40° to 65°C)
Warranty:
• Free from defects in materials or workmanship over a period of ten (10) years from the original date of shipment.
• Lifetime warranty against delamination
• Two (2) Year All Hazards Warranty
Hose Lengths: 50 ft. and 100 ft. standard. Contact Us to discuss custom lengths.
Standard Hose Colors: Yellow, Red, Blue, Orange, Green, White (coated).
Special Order Hose Colors: Tan and Purple (200 ft. min. qty. same color/size)
Stripe Colors: Yellow, Red, Blue, Black, Green. NOTE: Not all stripe colors are available with all hose sizes & colors.
Couplings:
• Aluminum Rocker Lug - NH/NST thread
• Aluminum Storz
• IPT thread is available for rocker lug threaded couplings. Contact Us for pricing.
Customized Hose Stenciling:
• Standard stenciling of hose is per NFPA 1961 (mfg, country origin, month & year of mfg.and service test psi)
• Custom stencils in addition to NFPA stenciling available
• Custom stencils (max. 25 characters at 2 places on hose). No additional charge
• Longer and/or more frequent custom stenciling available. Contact Us for pricing.
| SNAP-TITE CONQUEST HOSE SPECIFICATIONS | |||||||
|
HOSE SIZE |
COUPLING SIZE |
COUPLING MATERIAL |
SERVICE TEST |
PROOF TEST |
BURST |
WEIGHT (50 FT. COUPLED) |
FLAT WIDTH |
| Inches | Inches | PSI | PSI | PSI | Pounds | Inches | |
| 1.75" | 1.5" NH | Aluminum | 400 | 800 | 1,200 | 19 | 3.14" |
| 2" | 1.5" or 2.5" NH | Aluminum | 400 | 800 | 1,200 | 22 | 3.4" |
| 2.5" | 2.5" NH | Aluminum | 400 | 800 | 1,200 | 29 | 4.3" |
| 3" | 2.5"NH | Aluminum | 300 | 600 | 900 | 35 | 5.1" |
| 4" | 4" Storz | Aluminum | 300 | 600 | 900 | 50 | 6.6" |
| 5" | 5" Storz | Aluminum | 300 | 600 | 900 | 64.5 | 8.1" |
View Snap-Tite Conquest Attack Hose Data Sheet [PDF]
View Snap-Tite Conquest LDH Data Sheet [PDF]
Notes:
As per NFPA 1962 – The service test pressure is to be 10% greater than the “normal highest operating pressure” at which the hose is expected to be used.
