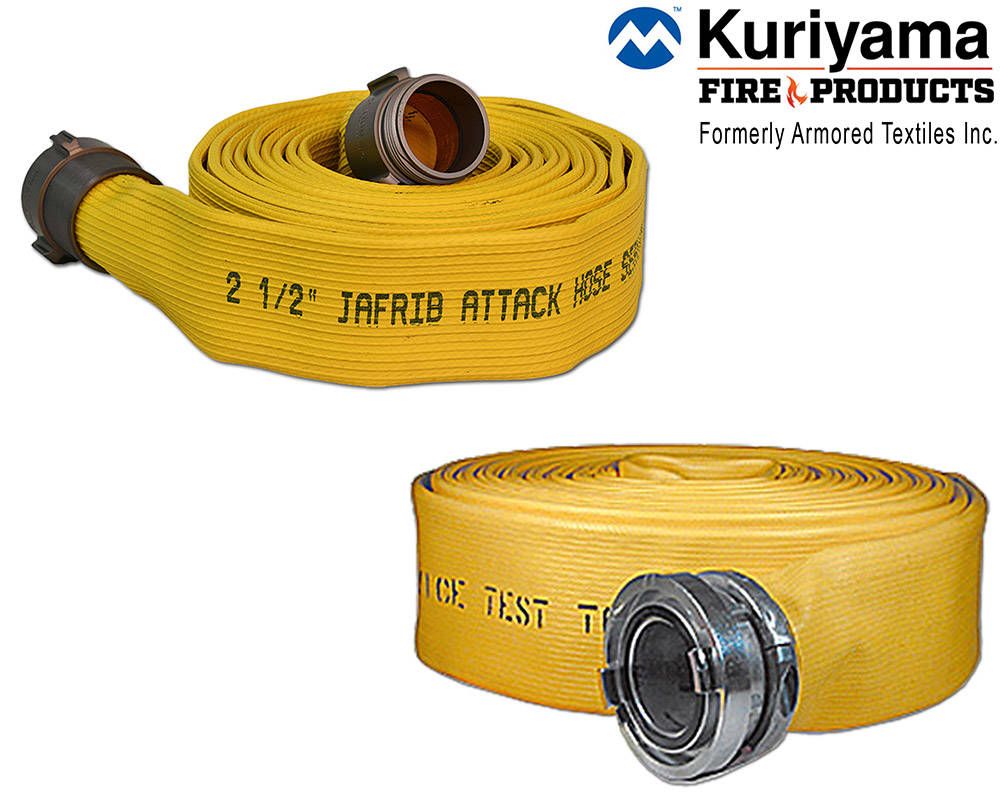

Jafrib Hose

Kuriyama - ATI Hose

JAFRIB is a synthetic, single-jacket hose with a nitrile/PVC rubber lining and cover. JAFRIB is made in a single extrusion, eliminating the risks of jacket separation. The outside jacket offers superior resistance to acids, alkalis, oils, gasoline and ozone.

General Applications:
•   Specially designed for municipal fire departments, petrochemical, nuclear plants, and other industrial services.
•   Superior nitrile/PVC rubber hose for use in supply and attack operations

Construction:
•   Made from circularly woven 100% high tenacity synthetic yarn
•   Fulley protected & locked-in by a tough, highly resistant synthetic nitrile rubber and PVC blend
•   Extruded through the weave and forming a single homogenous construction without the use of glues or adhesives.

Lining Properties:
•   The tensile strength of the lining and cover shall not be less than 1,750 PSI (12,000 kPa)
•   Ultimate elongation of liner and cover not less than 450%.

Abrasion Resistance:
As stated in National Fire Protection Association (NFPA) 1961, Underwriters Laboratories (UL) 19 and Factory Mutual Approval Standard (FM) 2111, hose shall withstand 1 ½ times the service test pressure without rupturing or breaking any thread in the jacket or reinforcement after 300 cycles of abrasion for a single jacketed hose.  Hose shall also not leak or burst after 3,000 cycles by an abrasion wheel.

Features and Advantages:
•   Resistant to petroleum, chemicals, and abrasion.
•   Reliable and robust.
•   Lightweight and flexible.
•   Fast deployment and retrieval.
•   All-weather performance – Retains pliability to -40ºF (-40°C).
•   Available sizes: 2.5", 3.0”, 4.0”, 5.0”, 6.0”
•   Color Options: Red or Yellow
•   2.5” – 3.0” Couplings NH/NST thread expansion-type couplings
•   4.0 - 6.0” Couplings: Storz
•   Lengths:  25, 50' and 100'
•   10-year warranty

Jafrib Specifications

Nominal Dia.

(in.)

Coupling

Type

Weight/ 50 ft. (lbs.)

Uncoupled

Service Pressure

(PSI)

Accptance Pressure

(PSI)

Burst Pressure

(PSI)

2.5" NH/NST 23 300 600 900
3" NH/NST 32 300 600 900
4" Storz 41 250 500 750
5" Storz 47 225 450 675
6" Storz 64 200 400 600
•  Meets or exceeds National Fire Protection Association (NFPA) 1961 Standard on Fire Hose (current edition).
•  Underwriters Laboratories (UL) 19 and Underwriters Laboratories of Canada (ULC) – S511-14 Certified*.
•  ISO 9001 - ARMTEX® Jafrib® fire hose products are manufactured in a registered facility in Barcelona, Spain.

•   Prices listed are for hose with couplings.
•   Standard couplings on 2.5" and 3" diameter hose are NH/NST
•   Standard couplings on 4", 5" and 6" diameter hose are Storz
•   Special threaded couplings and custom hose lengths are available by special order.  Please Contact Us to discuss your needs.

SHIPPING NOTE: Due to the size/weight and potential large quantity orders of this product shipping will be quoted on a per order basis.  You may complete your order online, however there will be no shipping charges displayed at checkout.  A First Out Rescue specialist will contact you to provide you with the final cost for your order including freight charges and to make delivery arrangements.
