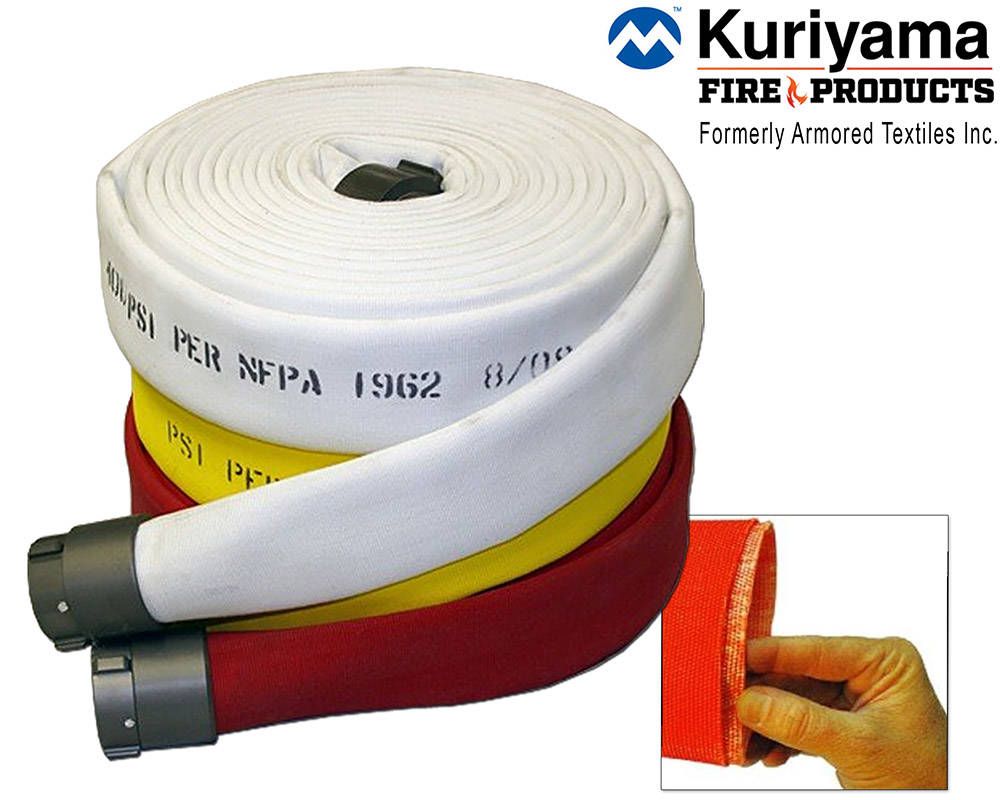

Jafline LDH

Kuriyama - ATI Hose

General Applications:

• Municipal fire departments

• Industrial fire brigades

• Attack and supply lines

Construction:

Jafline LDH® is an all polyester double-jacket hose with a polyurethane lining.

Features and Advantages:

• High Burst Rating – 1,200 psi up to 3" diameter, 900 psi for 4" and 5"

• Superior Performance – Very low friction loss.

• Maintenance Free – Immune to mildew and rot.

• All-weather performance – Retains pliability to -40ºF (-40°C).

• Available LDH sizes of: 3.0”, 4.0”, 5.0”

• Color Options: 3" Blue, Green, Black, Orange, Purple, Red, Tan, White, Yellow

• Color Options: 4" & 5": Blue, Green, Orange, Red, Tan, White, Yellow

• 3.0” Couplings: NH/NST thread expansion-type couplings

• 4.0 - 5.0” Couplings: Storz

• Lengths: 25, 50' and 100'. Please CONTACT US for custom lengths

• 10-year warranty.

• All colored hose is impregnated with our tough heat-set polymer coating for the superior abrasion resistance.

Jafline LDH Specifications
Nominal Dia. (in.)	Coupling Type	Weight/ 50 ft. (lbs.) Uncoupled	Service Pressure (PSI)	Accptance Pressure (PSI)	Burst Pressure (PSI)
3"	NH/NST	37	400	800	1200
4"	Storz	43	300	600	900
5"	Storz	55	300	600	900

Meets or Exceeds NFPA Comprehensive fire hose standard 1961, current edition.

• Prices listed are for hose with couplings.
• Standard couplings on 3" hose is NH/NST. Storz couplings standard on 4" and 5".
• Special threaded couplings and custom hose lengths are available by special order. Please Contact Us to discuss your needs.

SHIPPING NOTE: Due to the size/weight and potential large quantity orders of this product shipping will be quoted on a per order basis. You may complete your order online, however there will be no shipping charges displayed at checkout. A First Out Rescue specialist will contact you to provide you with the final cost for your order including freight charges and to make delivery arrangements.
