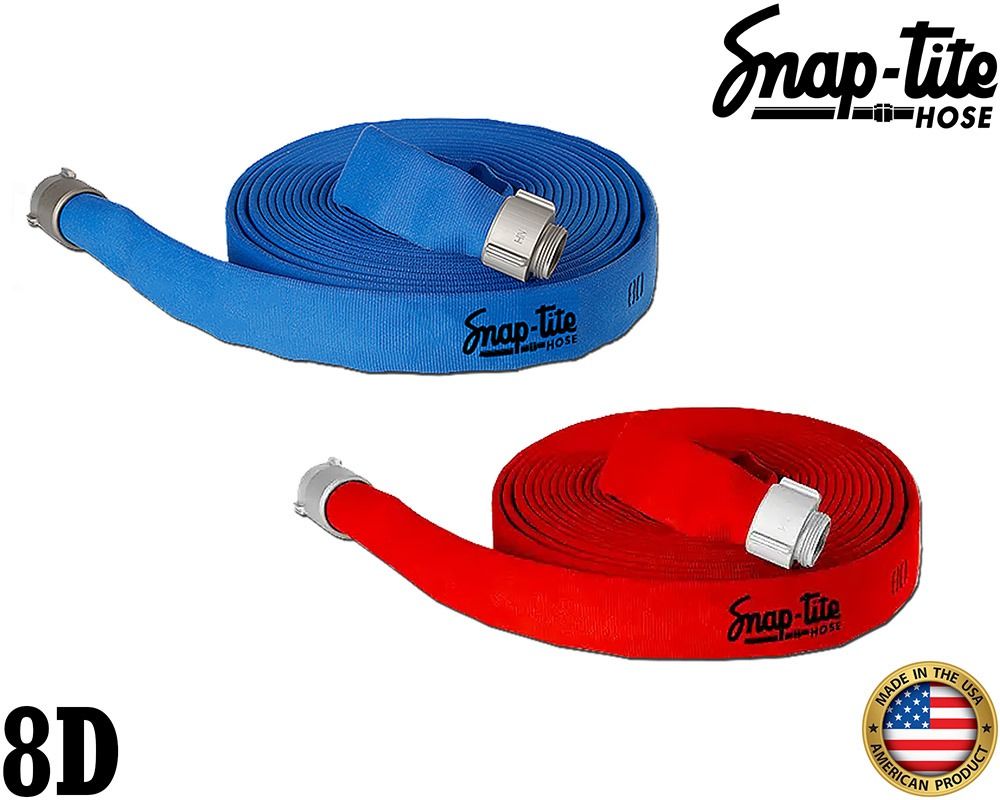

Snap-Tite 8D Hose
POLYESTER DOUBLE JACKET HOSE
Rugged and quality-built to meet NFPA 1961 Standard requirements, Snap-Tite 8D is the essential municipal-grade, double jacket attack hand line hose. The lightweight Ethylene Propylene Diene Monomer (EPDM) rubber liner creates consistent flow and is manufactured to a service test pressure of 400 psi to handle the toughest fireground challenges. It boasts a wide temperature range – capable of being used at a mine in Alaska or a construction site in Arizona – which helps earn 8D its reputation as the ultimate multi-purpose hose.
Construction
• Polyester Double Jacket Hose with EPDM Rubber Inner Liner
• 100% high tensile strength ring-spun polyester yarn with a lining of extruded EPDM
• Excellent for tough applications such as construction sites, mines and industrial firefighting
• Outside jacket utilizes a tight weave that is less likely to “catch” while dragging
• Outside jacket also helps to reduce kinking at low pressures, keeping flow constant
• 40° to 150°F (-40° to 65°C) Highly resistant to ozone and oxidation.
• Certified and manufactured in accordance with NFPA Standard 1961, latest edition within our ISO-9001 certified quality assurance system.
Rugged Durability
Standard Dura-Cote™ protective treatment greatly increases abrasion, heat, flame and petrochemical resistance while virtually eliminating water pick-up. The coating protects from mildew and no drying is required.
Temperature Range: -40° to 150°F (-40° to 65°C)
Hose Lengths: 50 ft. and 100 ft. Contact Us to discuss custom lengths.
Standard Hose Colors: Yellow, Red, Blue, Orange, Green, White.
Special Order Hose Colors: Tan and Purple (200 ft. min. qty. same color)
Couplings:
• Aluminum Rocker Lug - NH/NST thread
• IPT thread is available for rocker lug threaded couplings. Contact Us for pricing.
Customized Hose Stenciling:
• Standard stenciling of hose is per NFPA 1961 (mfg, country origin, month & year of mfg.and service test psi)
• Custom stencils in addition to NFPA stenciling available
• Custom stencils (max. 25 characters at 2 places on hose). No additional charge
• Longer and/or more frequent custom stenciling available. Contact Us for pricing.
| SNAP-TITE - 8D HOSE SPECIFICATIONS | |||||||
|
HOSE SIZE |
COUPLING SIZE |
COUPLING MATERIAL |
SERVICE TEST |
PROOF TEST |
BURST |
WEIGHT (50 FT. COUPLED) |
FLAT WIDTH |
| Inches | Inches | PSI | PSI | PSI | Pounds | Inches | |
| 1" | 1" NH | Aluminum | 400 | 800 | 1,200 | 13 | 2.1" |
| 1.5" | 1.5" NH | Alum. or Brass | 400 | 800 | 1,200 | 15 | 2.8" |
| 1.75" | 1.5" NH | Aluminum | 400 | 800 | 1,200 | 16 | 3.2" |
| 2" | 1.5" NH | Aluminum | 400 | 800 | 1,200 | 20 | 3.7" |
| 2.5" | 2.5" NH | Alum. or Brass | 400 | 800 | 1,200 | 27 | 4.5" |
| 3" | 2.5" NH | Aluminum | 400 | 800 | 1,200 | 33 | 5.3" |
View Snap-Tite 8D Fire Hose Data Sheet [PDF]
Note:
As per NFPA 1961 – The service test pressure is to be 10% greater than the “normal highest operating pressure” at which the hose is expected to be used.
SHIPPING NOTE: Due to the size/weight and potential large quantity orders of this product shipping will be quoted on a per order basis. You may complete your order online, however there will be no shipping charges displayed at checkout. A First Out Rescue specialist will contact you to provide you with the final cost for your order including freight charges and to make delivery arrangements.
