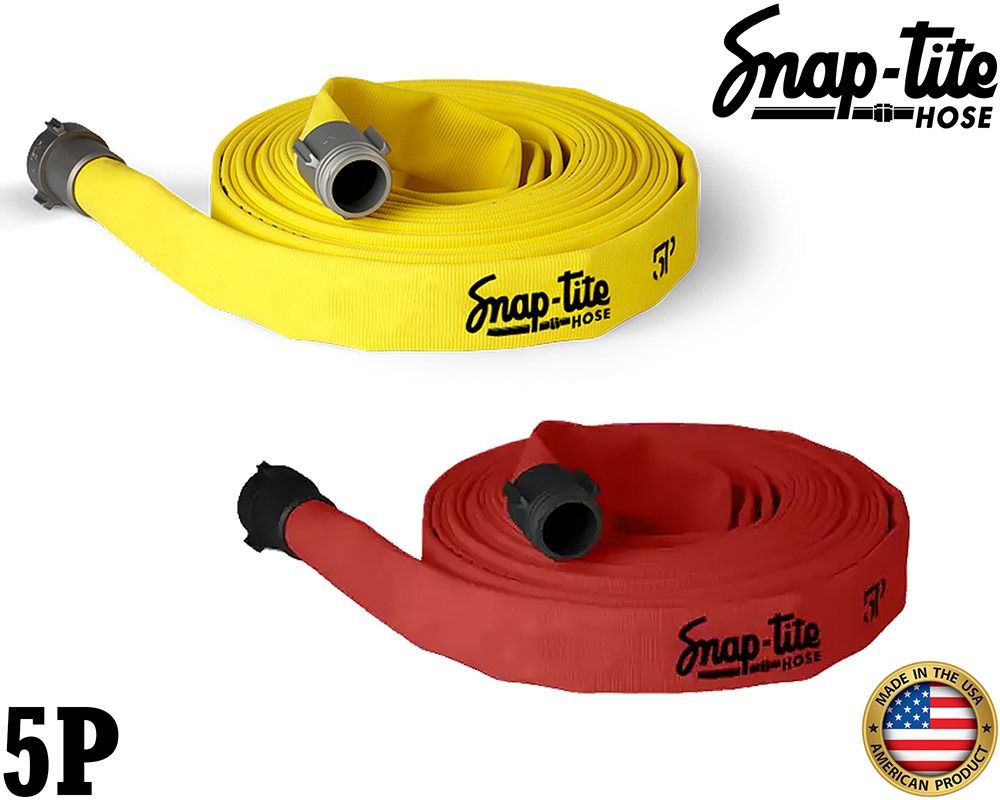

Snap-Tite 5P Hose
POLYESTER SINGLE JACKET EPDM RUBBER LINED HOSE
The Snap-Tite Super-Duty 5P™ single jacket EPDM rubber lined hose is an excellent all-around performer: Strong, flexible, and WELL suited for all exterior and interior firefighting applications. It delivers medium pressure and high-end performance at a value-driven price point. Snap-Tite 5P™ is a polyester single jacket hose with a rugged Ethylene Propylene Diene Monomer (EPDM) rubber liner that can handle most fluids, including some petrochemicals. It boasts a maximum operating pressure of 250 psi (1723 kPa) and is enhanced with Dura-Cote™ treatment for a higher level of abrasion resistance.
Designed for the following applications: General industrial and construction use; discharge hose; in-facility fire protection; wash down/decontamination and maintenance.
Construction
• Single jacket, polyester, EPDM rubber lined hose.
• Dura-Cote™ protective treatment.
• Hose remains flexible at temperatures as low as -40°F (-40°C)
• Resistant to ozone and oxidation.
• Available with aluminum or brass couplings.
• 1½” and 2½” sizes are UL, ULC, and FM certified
• ISO-9001 certified quality assurance system.
• Made in the USA
• 1-3/4” and 2-1/2 are ULC Certified.
• Potable water approved: No
Rugged Durability: Standard Dura-Cote™ protective treatment greatly increases abrasion, heat, flame and petrochemical resistance while virtually eliminating water pick-up. The coating protects from mildew and no drying is required.
Temperature Range: -40° to 150°F (-40° to 65°C)
Warranty: Free from defects in materials or workmanship over a period of tone (1) year from the original date of shipment.
Hose Lengths: 50 ft. and 100 ft. Contact Us to discuss custom lengths.
Standard Hose Colors: Yellow, Red
Couplings:
• Aluminum or Brass Rocker Lug - NH/NST thread
• IPT thread is available for rocker lug threaded couplings. Contact Us for pricing.
| SNAP-TITE - 5P HOSE SPECIFICATIONS | |||||||
|
HOSE SIZE |
COUPLING SIZE |
COUPLING MATERIAL |
SERVICE TEST |
PROOF TEST |
BURST |
WEIGHT (50 FT. COUPLED) |
FLAT WIDTH |
| Inches | Inches | PSI | PSI | PSI | Pounds | Inches | |
| 1.5" | 1.5" NH | Alum. or Brass | 250 | 500 | 750 | 9.5 | 2.59" |
| 2.0" | 1.5" NH | Aluminum | 250 | 500 | 750 | 15 | 3.54" |
| 2.5" | 2.5" NH | Alum. or Brass | 250 | 500 | 750 | 16.5 | 4.09" |
| 3" | 2.5" NH | Aluminum | 250 | 500 | 750 | 18.5 | 5.31" |
View Snap-Tite 5P Fire Hose Data Sheet [PDF]
SHIPPING NOTE: Due to the size/weight and potential large quantity orders of this product shipping will be quoted on a per order basis. You may complete your order online, however there will be no shipping charges displayed at checkout. A First Out Rescue specialist will contact you to provide you with the final cost for your order including freight charges and to make delivery arrangements.
