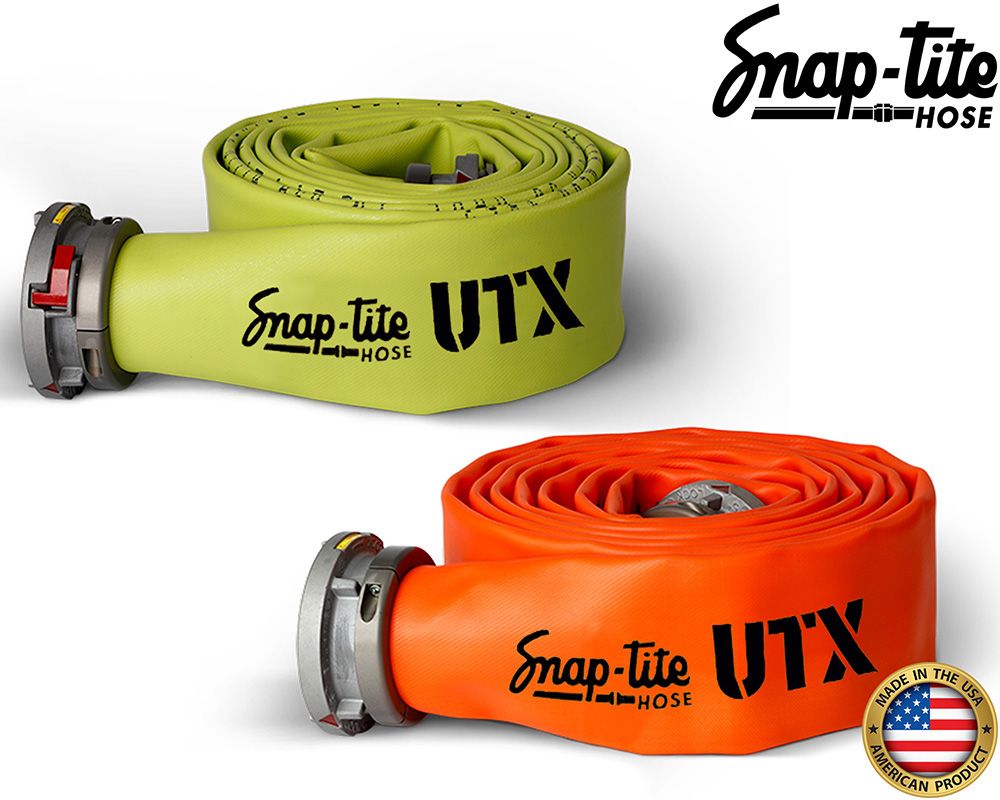

Snap-Tite UTX Hose

Snap-Tite Hose

ENHANCED FLOW AND VISIBILITY ON THE FIREGROUND

LARGE DIAMETER POLYURETHANE SUPPLY HOSE
Snap-Tite UTX™ LDH gives fire departments that extra edge in flow and support - all in a high-visibility, lightweight supply line. A tough polyurethane outer cover combines with an exclusive thru-the-weave polyurethane liner to offer greater resistance to punctures and abrasion. But it doesn’t stop there. UTX™ is compact, taking up less room in the hose bed, and durable - with higher resistance to oils, chemicals, and ozone. Snag proof and kink resistant, UTX™ will not mildew or rot and is guaranteed for life to never delaminate.

Typical rubber extruded fire hose can vary in thickness, becoming bulky and heavy. UTX™ LDH incorporates a circular woven polyester jacket that is completely encapsulated by an extruded thru-the-weave polyurethane cover and liner that provides abrasion and puncture resistance while remaining light and service worthy.

Features:
•   UTX™ weighs 20% less than conventional rubber supply hose.
•   Extruded thru-the-weave polyurethane construction
•   Ultra-smooth liner minimizes friction loss.
•   Engineered to deliver more flow and more efficient packability.
•   Remains flexible to -50°F (-46°C).
•   Resists ozone, oxidation, and most chemical/petroleum products.
•   Manufactured in accordance with NFPA 1960 Standard, latest edition.
•   ISO-9001:2015 certified quality assurance system.
•   Made in the USA
•   Potable water approved: Yes





Temperature Range: -50° to 160°F (-46° to 71°C)

Warranty:
•  Free from defects in materials or workmanship over a period of ten (10) years from the original date of shipment.
•  Lifetime warranty against delamination
•  Two (2) Year All Hazards Warranty

Hose Lengths: 50 ft. and 100 ft. standard. Contact Us to discuss custom lengths.

Hose Colors:  Hi-Viz Green, Blaze Orange, Yellow, Red

Couplings:
•    Aluminum Rocker Lug - NH/NST thread
•    Aluminum Storz

Customized Hose Stenciling:
•    Standard stenciling of hose is per NFPA 1960 (mfg, country origin, month & year of mfg.and service test psi)
•    Custom stencils in addition to NFPA stenciling available
•    Custom stencils (max. 25 characters at 2 places on hose).  No additional charge
•    Longer and/or more frequent custom stenciling available. Contact Us for pricing.

SNAP-TITE UTX LDH HOSE SPECIFICATIONS
HOSE SIZE

COUPLINGS

SERVICE

TEST

PROOF

TEST

BURST

WEIGHT

(100 FT. COUPLED)

FLAT

WIDTH

Inches   PSI PSI PSI Pounds Inches
4" 4" NH or Storz 200 400 600 70 6.5"
5" 5" NH or Storz 200 400 600 93  7.75"

View Snap-Tite UTX LDH Product Data Sheet [PDF]

Notes:
•    As per NFPA 1962 – The service test pressure is to be 10% greater than the “normal highest operating pressure” at which the hose is expected to be used.
•    IPT thread is available for rocker lug threaded couplings. Contact Us for pricing.

SHIPPING NOTE: Due to the size/weight and potential large quantity orders of this product shipping will be quoted on a per order basis.  You may complete your order online, however there will be no shipping charges displayed at checkout.  A First Out Rescue specialist will contact you to provide you with the final cost for your order including freight charges and to make delivery arrangements.
