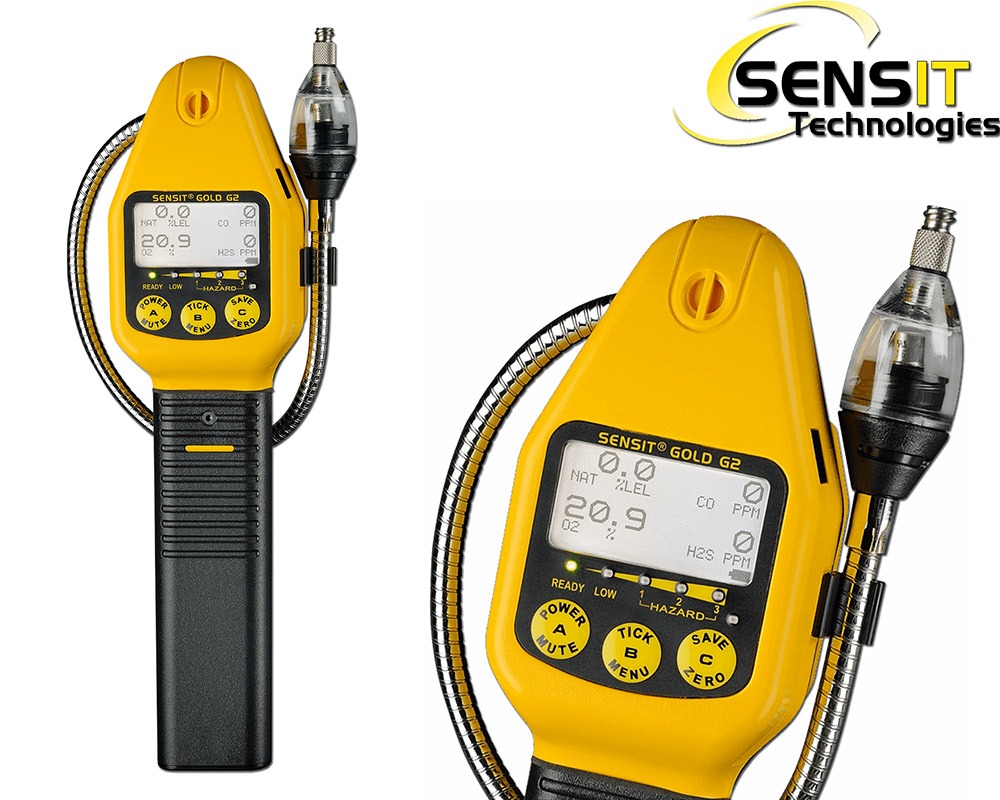

SENSIT GOLD G2 Mult-Gas Detector
DISPLAYS UP TO 4 GASES SIMULTANEOUSLY
The SENSIT® GOLD G2 multi gas detector is a highly advanced instrument designed to locate gas leaks and use in confined spaces. It is suitable for detecting combustible gases in oxygen-free environments, making it ideal for inert gas operations.
SENSIT® GOLD G2 finds its applications in detecting combustible gas leaks, gas leak surveys, underground leak pinpointing, carbon monoxide investigations, confined space monitoring, combustible gas measurements, pipeline purging, method 21 emissions testing, and inert gas operations.
The instrument can be configured for combustible gas readings in PPM, LEL and/or percent volume, and various toxic gases and oxygen.
|
|
|
SENSIT® GOLD G2 is extremely accurate, durable, and easy to use and maintain. It can display up to four gases simultaneously, including:
• LEL (% volume)
• Oxygen, Carbon Monoxide
• Hydrogen Sulfide
• Hydrogen Cyanide (optional)
• It also has selectable gas types, such as methane (natural gas) and propane.
A partial list of gases sensed by the Gold G2 include:
• Butane
• Carbon Monoxide
• Gasoline
• Hydrogen Sulfide
• Hydrogen Cyanide
• Methane
• Natural Gas
• Oxygen
• Propane
Sensit Gold G2 Standard Features:
• Intrinsically Safe Design (certified)
• Internal Pump for Fast Sampling
• Audible “Tick” Control for Fast Leak Location
• Low Cost of Ownership
• Long Life Sensors
• LED Warning Lights
• Bright Graphic Display
• Loud Audible Alarm
• Battery Strength Indicator
• Internal Memory
• Exceptional Water Protection
Certifications: The SENSIT GOLD G2 is certified by ATEX and UL.
| Sensor Specifications | |||
| Type | Resolution | Range | Accuracy |
| PPM | 1 PPM – 10 PPM | 0 – 10,000 PPM | +10% |
| LEL | 0.1% - 2.0% | 0 – 100% LEL | +10% |
| % Nat. Gas | 0.1% | 5 – 100% gas | +5% |
| % Propane | 0.1% | 2.2 – 100% Gas | +5% |
| O2 | 0.1% | 0 – 25% | +0.2% or 10% ** |
| CO | 1 PPM | 0 – 2000 PPM | +5 PPM or 5% ** |
| H2S | 1 PPM | 0 – 100 PPM | +2 PPM or 5% ** |
| HCN | 1 PPM | 0 – 30 PPM | +1 PPM or 5% ** |
| **Whichever is greater | |||
• Dimensions: 11.5” x 3” x 2.32” (29.2 x 7.6 x 5.9 cm)
• Weight: 1.2 lbs. (544 g)
• Operational Temp.: -4 to 1040F (-20 to 400C)
• Battery Life (alkaline): Approx. 18 hrs. continuous use
SENSIT GOLD G2 Kit Includes:
• Hard Carrying Case or Soft Pouch
• 3 "C" Batteries
• Extra Sensor Cap
• Wrist Strap
• Confined Space Probe
• Instruction Manual
