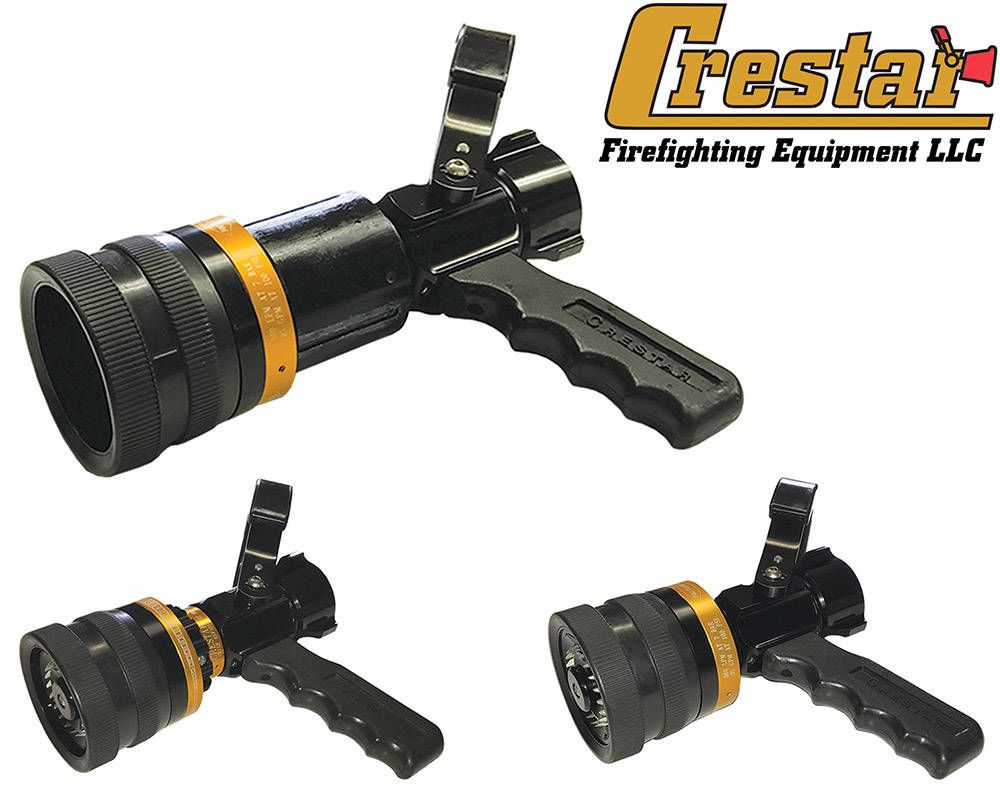

Retractable Foam Nozzle


The Retractable Foam Nozzles from Crestar feature a retractable foam aspirating sleeve that offers the added versatility to aspirate foam as well as flow a straight stream or fog pattern all from the same nozzle.

•    Selectable gallonage or Constant Gallonage models available
•    Selectable Gallonage: 30, 60, 95, 125 GPM
•    Constant Gallonage: 60, 95 or 125 GPM (factory pre-set at 95 GPM)
•    75 PSI operating pressure on selectable and constant gallonage nozzles
•    Stainless steel spinning teeth
•    Permanent anodized indicator bands
•    Straight stream to wide fog and flush without shutting down
•    Female inlet swivel with strainer
•    Stainless steel ball valve operates smoothly at all pressures
•    Lightweight aluminum construction
•    Includes pistol grip
•    NFPA 1964 compliant design and performance
•    NH or NPSH threads available

Model Inlet Length Weight (lbs.) Flow (GPM)
SF125 FOAM TUBE 1.5" 10" w/ sleeve deployed 4.6 30-60-95-125
CF95 FOAM TUBE 1.5" 10" w/ sleeve deployed 4.4 60, 95 or 125 (pre-set at 95)


Grouped product items
SKU Product Name Qty
SF125 FOAM TUBE Retractable Foam Nozzle - Selectable Gallonage
CF95 FOAM TUBE Retractable Foam Nozzle - Constant Gallonage
