Arapaho NFPA Escape/Ladder Belt
NFPA Escape & Ladder Belt
NFPA Class II Harness

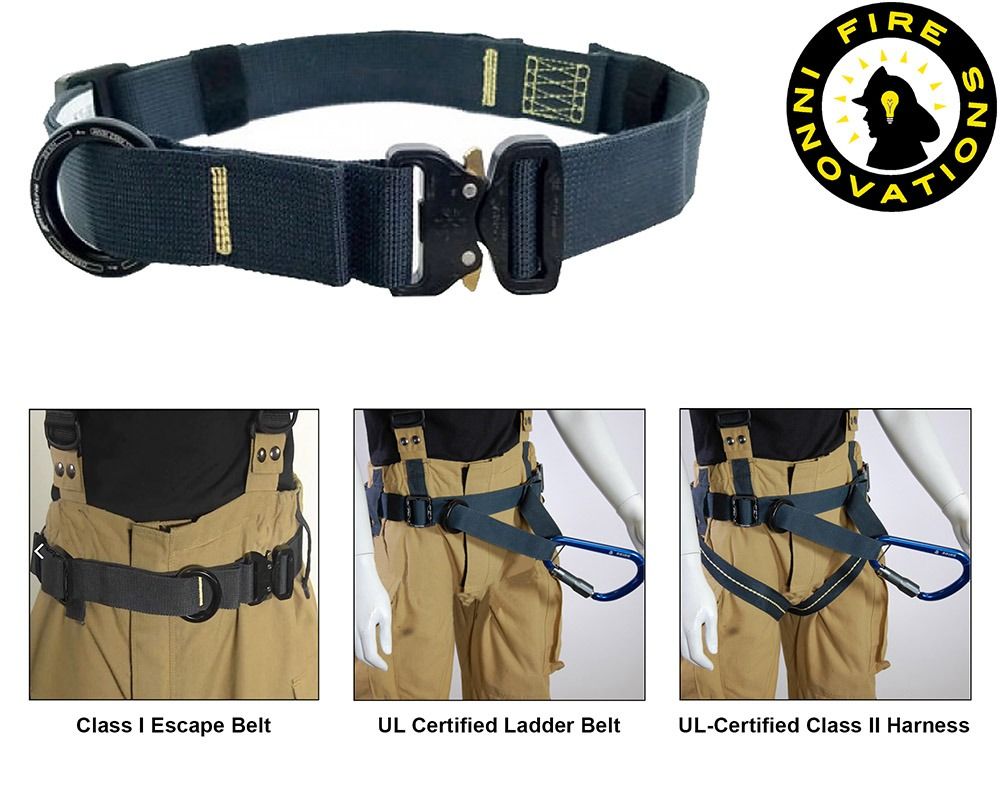

The Arapaho Belt is designed to be lightweight, comfortable and modular in design. With the collapsible A-frame, the Arapaho belt can be used as either an NFPA Escape Belt with a bailout system, or an NFPA Ladder Belt using a ladder hook. The Arapaho Belt can also be configured as an NFPA Class II harness by adding the optional leg loops.
The Arapaho is adjustable from 28” to 52” to easily accommodate most firefighters and can be outfitted with a ladder hook along with a bailout system for added versatility.
Features:
• NFPA Escape & Ladder Belt
• NFPA Class II Harness (with optional leg loops)
• Can be configured for left or right closure
• Two (2)-NFPA Positioning Points (O-Ring & A-Frame)
• Two (2)-NFPA Attachment Points/Positioning Points (O-Rings & A-Frame)
• A-Frame webbing stores securely until deployed
• Sliding aluminum O-ring deploys with A-frame
• O-ring simplifies pre-connection of bailout system
• Sliding O-ring allows bailout systems to be placed on right or left side
Construction:
• UL Rated NFPA Certified Aluminum Cobra® Hardware
• Cobra buckles proof tested to 2,500 lbs.
• O-Ring design to stretch at 3000lbs (shock absorber)
• 1” tear away at 800lbs Kevlar strap on the A-Frame (shock absorber)
• Manufactured with 1.75” 100% Kevlar® webbing
• Made in the USA
Versitility:
• Extremely lightweight (.8 lbs. belt), (.6 lbs. leg loops)
• Sized to be donned over turnout pants
• Waist sizing based on regular waist sizing, (NOT turnout pants)
• Waist Sizes: 28”-42”, 43”-54”, 55”-66”
Certifications:
• NFPA 1983:2017 Escape/Ladder Belt
• Add optional leg loops for NFPA 1983:2017 Class II Harness
(NOTE: The Large Leg Loops should only be used with the 55"-66" belt size).
