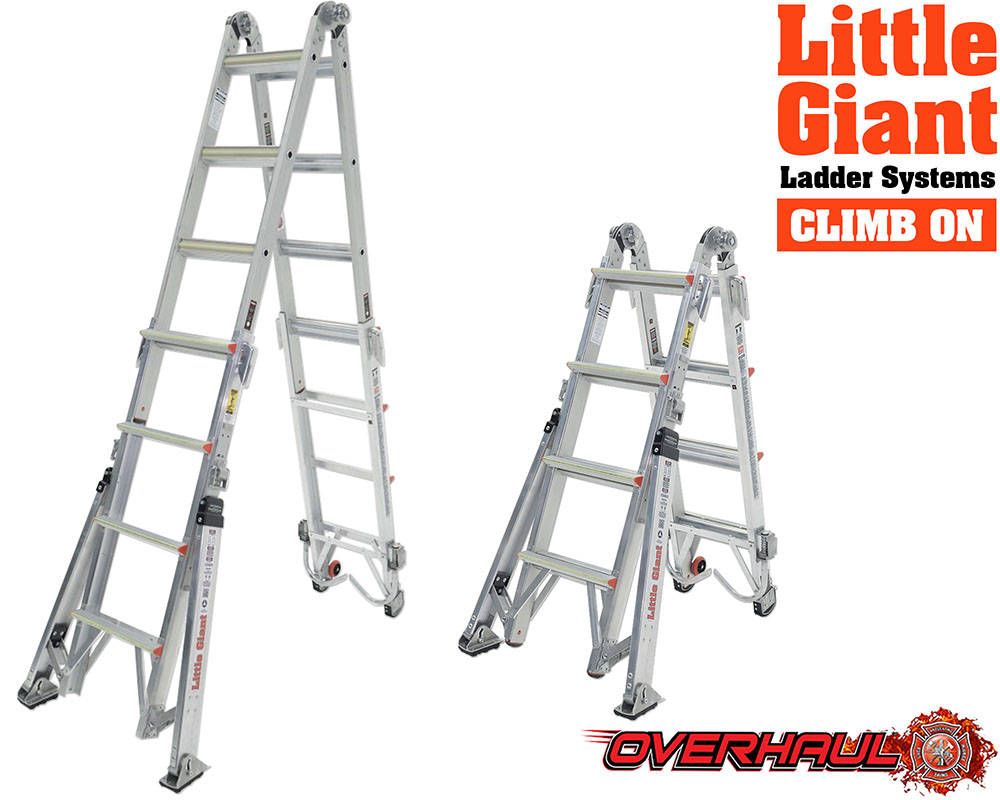

OVERHAUL Little Giant Ladder

Little Giant Ladder

The Little Giant Overhaul™ ladder system was designed by firefighters for firefighters. The Little Giant Overhaul Ladder has been engineered to address the unique challenges that firefighters face every day.  The Overhaul ladder extends to 17 feet but is compact enough to carry into an elevator, up a flight of stairs, or around tight corners. The ladder is just 4 foot 7 inches tall when fully retracted!

Ratchet Levelers™ – Working on uneven ground due to slope or debris? The Ratchet Levelers adjust in seconds to provide an even, level setup over a wide range of uneven surfaces or debris. The Ratchet Levelers are specifically designed for easy operation while wearing heavy firefighting gloves.

Roof & Rafter Hooks – The Overhaul Ladder is equipped with folding roof and rafter hooks that secure the ladder to a rafter or truss to prevent the ladder from “slipping out” from underneath during salvage, overhaul and fire investigation operations.

High-Visibility – Each rung on the Overhaul Ladder is equipped high-viz reflective labels and Little Giant’s exclusive Safety Insight™ photo-luminescent strips to help identify rung location in low light conditions. This durable material glows for up to 16-hours when charged, is integrated into the rung, and will not rub off like tape.

Dual Position Spike Feet – Adjustable non-slip rubber feet provide stability on wet or slippery surfaces and flip down spike feet provide stability on grass, carpet and other soft surfaces.

Easy Transport – The Overhaul Ladder is equipped with heavy duty casters for quick, easy transport.

Easy Carrying – The Overhaul Ladder is designed to be extremely mobile and easy to move from place to place. It is equipped with a large, solid aluminum carrying handle that is easy to grip while wearing firefighter gloves.

Heat Sensing Technology – The Overhaul Ladder has special heat-sensing labels that indicate when the ladder has been exposed to damaging temperatures and should be taken out of service.



Little Giant Overhaul Ladder - A-Frame Configuration

A-Frame Ladder

With a simple click of the patented hinge, the Little Giant can be used as a traditional A-Frame ladder.
 Little Giant Overhaul Ladder - Staircase Configuration

Staircase Ladder

Because it's adjustable in one-foot increments, the Little Giant allows one side of the ladder to be extended allowing safe use on uneven surfaces like staircases, curbs or docks.
 Little Giant Overhaul Ladder - 90 degree configuration

90° Ladder

Traditional ladders make working close to walls nearly impossible. With the Little Giant, one adjustment allows you to safely work against any vertical surface.
 Little Giant Overhaul Ladder - extension ladder configuration

Extension Ladder

For large projects the Little Giant easily converts to a stable extension ladder allowing you to reach rooftops, tree limbs and more with ease.
 Little Giant Overhaul Ladder - scaffolding configuration

Scaffolding

Since the Little Giant pulls apart to form two scaffold trestles, you just add the optional work plank (sold separately) and trestle brackets (sold separately) to form a convenient scaffolding system.





Overhaul Firefighter Ladder - Type 1AA
 A-Frame Max. Height 7 ft. 5 in.
 A-Frame Max. Standing Height  4 ft. 10 in.
 A-Frame Min. Height 4 ft. 5 in.
 Extension Max. Standing Height 11 ft. 9 in.
 Extension Max. Height 15 ft.
 Extension Min. Height 9 ft.
 Max. Footprint 5 ft. 4 in.
 Feet   Front Section: Aluminum Swivel Shoe
 Rear Section: Aluminum & Rubber Hoop Shoe
 Ladder Weight 55 lbs.
 Ladder Material Aluminum
 Storage Depth 10.5 in.
 Storage Height 4 ft. 7.5 in.
 Storage Width @ Base 1 ft. 10 in.
 Unique Configurations 24
 Warranty 5 Years
 Weigt Capacity 375 lbs.


NFPA Compliance – The Little Giant Overhaul ladder system is designed to meet the requirements of NFPA 1931, Standard for Manufacturer’s Design of Fire Department Ground Ladders, and has been tested to the requirements of NFPA 1932-2015, Standard on Use, Maintenance, and Service Testing of In-Service Fire Department Ground Ladders.

Little Giant’s Overhaul and Defender ladders are the only articulating ladder systems that meet the requirements of NFPA 1901-2009, Standard for Automotive Fire Apparatus, section 5.7.1.3 for pumpers, section 8.7.5 for ladder trucks, and section 9.7.1.3 for quints.

Insurance Services Office (ISO) – The Little Giant Overhaul Ladder meets ISO requirements for credit on pumper and ladder apparatus.



SHIPPING - The Little Giant OVERHAUL Ladder Ships FREE to the contiguous United States (excluding Alaska and Hawaii).

Please Contact First Out Rescue Equipment to arrange shipments to Hawaii, Alaska, and Puerto Rico. Shipping to Canada, Mexico or other country will be quoted on an individual basis.  Please use our REQUEST A QUOTE option to obtain a shipping quote.

Add product to cart
SKU Price Qty
15197-303
$1,285.00
