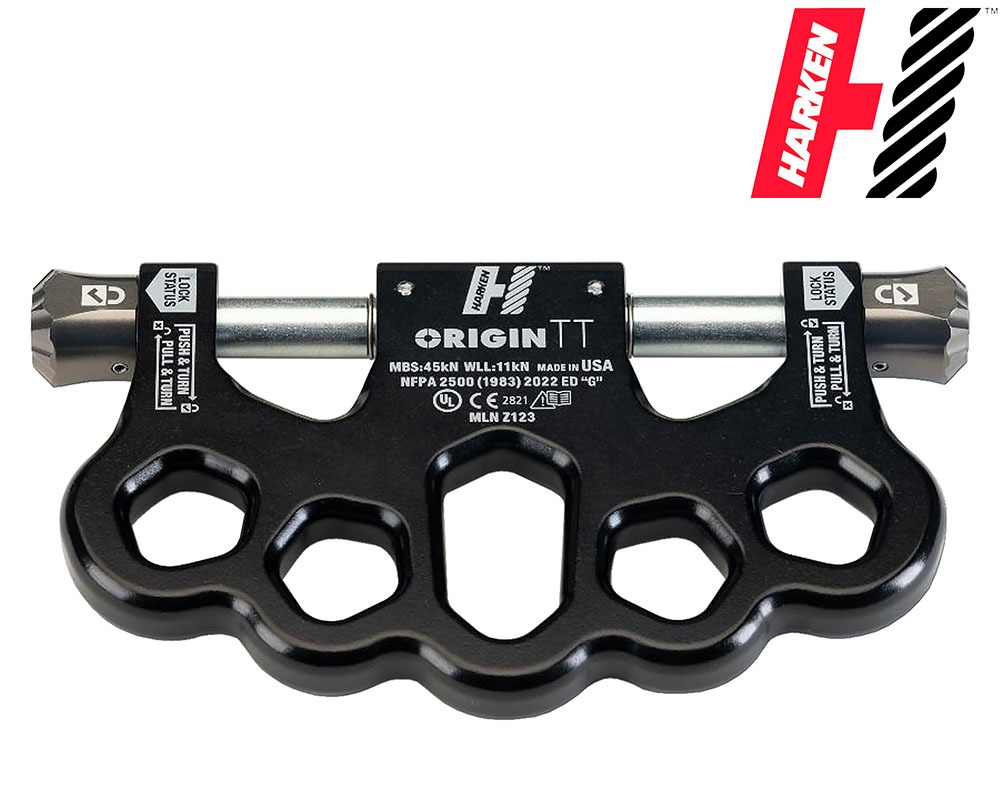

ORIGIN TT Rigging Plate

The Origin TT multi-purpose rigging plate was designed specifically to improve the rigging and performance of Twin-Tensioned Rope Systems (TTRS).  Unlike rigging plates that use a single bolt system to mount two side-by-side (MPD or CLUTCH), Origin TT employs two quick-release locking pins. This enables independent attention to either of the twin devices managing ropes in the system, while the other remains safely tensioned. All while making your set-up simpler and easier.

On the raise/lower side, Origin TT provides a seamless link with the CLUTCH and similar multi-purpose devices from other manufactures, eliminating the need for carabiners and shortening overall system length. There are five attachment points on the anchor side which enable rigging of ‘SERENE’ systems (Systems Strong, Equalized, Redundant, Efficient with No Extension potential).

Eliminating carabiners also removes play in the system that can diminish coordination between the two lowering devices.  The Origin TT allows each devise to remain immediately adjacent and aligned and allows coordinated precision when using dual-handled operation (Sharkfinning).  This is where the Origin TT Rigging Plate excels.
Lowering operations happen at the same pace on each device, greatly diminishing uncomfortable jerking for the humans at the end of the line.  The connected devices stay better synchronized and better aligned with the load on hauls which become more efficient as well.

Specifications:
•    Weight: 1.2 lb. (521 G)
•    Material: Aluminum
•    Dimensions: 7.5 X 4.5 X 7/8 IN (19 X 11.4 X 2.2 CM)
•    WLL: 11kN
•    MBS: 45kN
•    CE Certified: PPE Regulation (EU) 2016/425.
•    NFPA Certified: NFPA 2500 (1983) 2022 ED “G” General Use
