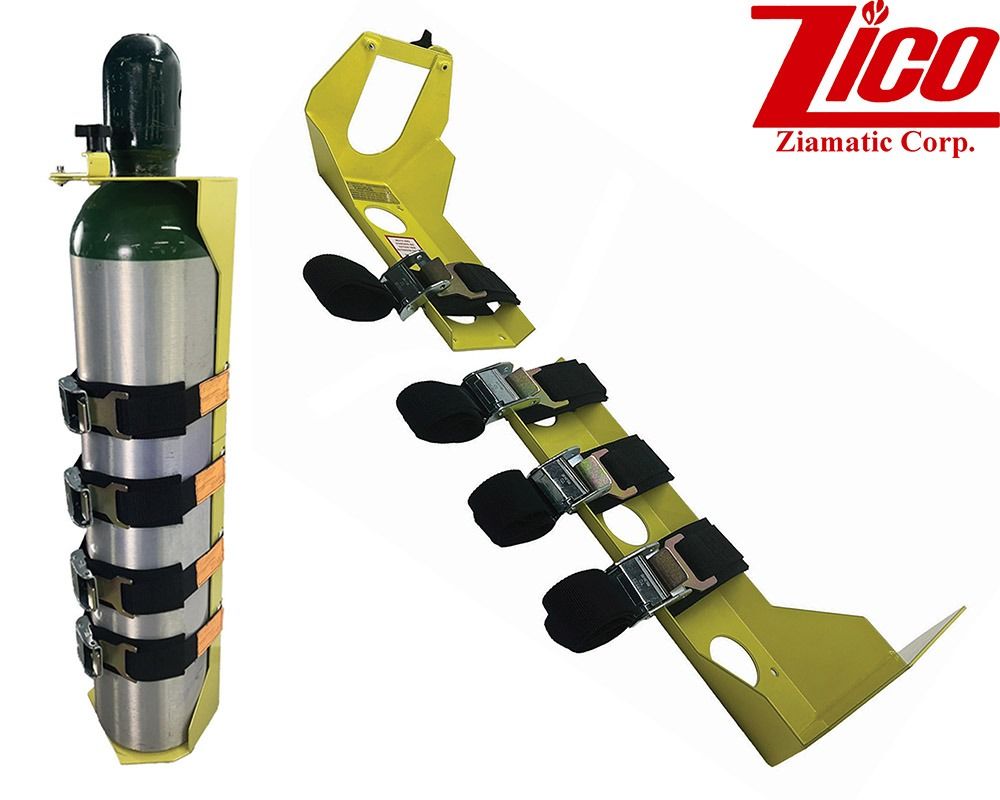

Multiversal Oxygen Cylinder Bracket

You work hard enough, you might as well work smarter, and easier!  Ziamatic’s new Patent Pending Quick Release Multiversal Cylinder Bracket with hook strap and quick release gate is easy to use with a new hook and cam buckle combination.  Simply press on the cam buckle to loosen or tighten the heavy duty 2- inch strap.  When properly tightened, the hooks, buckles and straps hold a cylinder securely in place.

The Quick Release Multiversal Cylinder Bracket consists of two separate ends (a base and retainer).  The base and retainer ends can be spaced apart to accommodate “M”, “G”, “H”, and “J” cylinders.

This Quick Release Multiversal Cylinder Bracket features an ambidextrous, quick release gate that remains secured and attached from two ¼” 20 weld nuts and held tight by a durable hand knob. Simply swing closed, and tighten the knob to secure the cylinder.

•    Four (4) Hook Straps (with cam buckle)
•    Straps adjust to cylinder diameters of 6-3/4″ to 9-1/4″
•    Base Dimensions: 21” L  x 9” W  x 8” D
•    Retainer Dimensions: 14-3/8″ L x 9″ W x 8” D
•    Four (4) Hook Straps w/ cam buckles: 2”x 40”
•    Four (4) J-Hooks:  3 1/8” L
•    Four (4) Cam buckles: 3” L

Complies with SAE-J3043, AMD Standard 003 for oxygen tank retention systems, and GSA KKK specification when used as recommended. Complies with OSHA and insurance safety regulations.

Oxygen Cylinder NOT INCLUDED.
