ICS LED Landing Zone Kit

Pi-Lit

Rotary wing aircraft operated by Law Enforcement, Fire, Med-Evac and Military must often set down in non-controlled landing areas, with natural and man-made obstacles (trees, power lines, buildings, etc.). Once ground-based personnel identify a landing zone (LZ) free of these obstacles, the area is typically defined with incendiary/flame flares, cones, and/or random flashing LED flares.  When multiple emergency vehicles are on site the result is an array of flashing lights that make it very difficult for the pilot to quickly and easily identify the designated landing-zone.

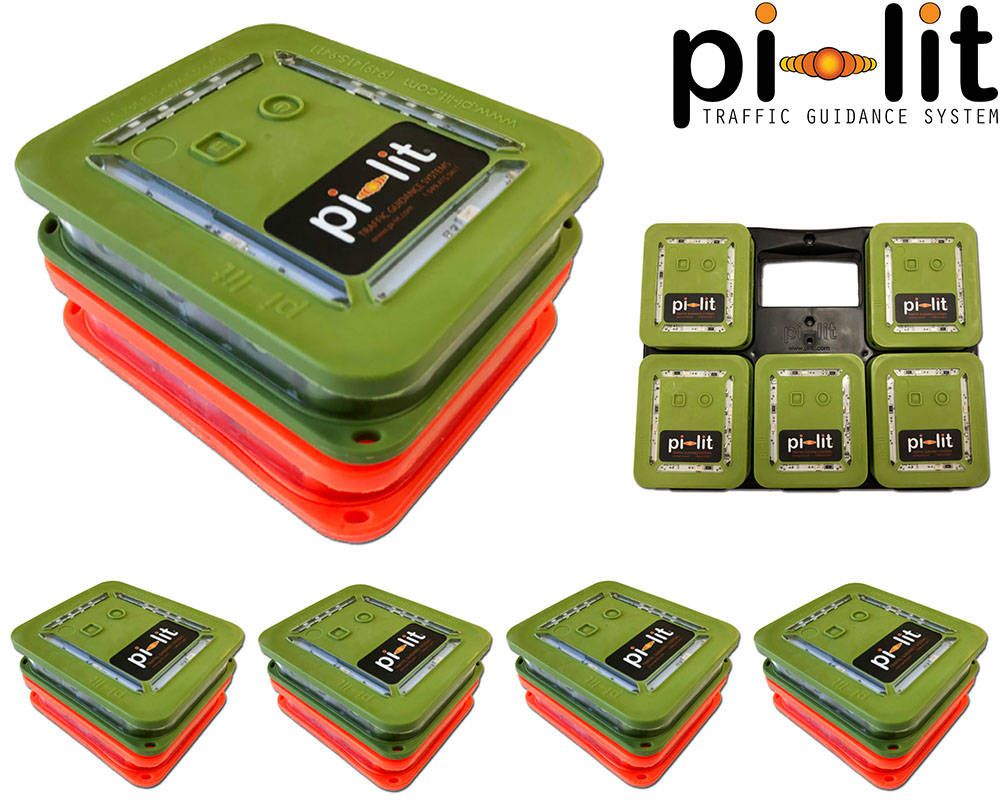

The Pi-Lit® LZ Kit solves all these problems with one solution.  The Pi-Lit LZ Kit includes 5 radio-linked LED flares with both visible and infrared LEDs.  The flares are placed at the corners of the designated LZ (typically a 100 foot (30 meter) square) with one placed outside to designate wind direction OR as an inverted “Y” free of obstacles.

•   Any one of the 5 flares can be used to control the entire group with the push of a button
•   Flares flash in unison alternating between visible and infared (default settng)
•   LEDs can be 'locked' to flash on visible or infared
•   Infrared LED’s are perfect for pilots using “nigh-vison” technology for night-operations



Features:
•   Intelligent radio-linked network (no master or slave; no infrared communication)
•   100 foot range (30 meters) when on ground (farther when elevated off ground)
•   360 degree horizontal viewing angle, 180 degree vertical viewing angle
•   (12) Infrared Top LEDs
•   (4) Visible Green Side LEDs
•   Default flash pattern alternates between top and side LEDs
•   Operator can lock-on infrared flashing only or visible flashing only
•   Any one LZ flare can control the entire network of LZ flares
•   Turn all flares off with a press of one button (collect all flares then "Group Off")
•   Battery status check with push of a button
•   Can be used in conjunction with multiple sets to form a larger landing area
•   Five range extender bases are heavy enough to not be affected by rotor wash
•   Use in all weather conditions (sunny, cloudy, snow, rain, ice, fog, etc.)
•   Compact, rugged and easy to store inside emergency vehicles
•   1-year manufacturer’s warranty
•   FCC Compliant

Alkaline Battery Version:
•   Battery life: 36+ hours of continuous flash
•   Powered by (4) AA-Alkaline batteries (batteries included)
•   Battery Status Check with a push of a button
•   (12) High-Power Infrared LEDs (top)
•   (4) High-Power Visible Green LEDs (side)
•   Autonomic synchronization of LZ Flares (quick, easy, and safe deployment)
•   IP67 water and dust rating
•   30,000 lbs (13,600 kg) crush strength (lab tested and certified)
•   Flare specification: Weight = .61 lbs.
•   Dimensions: L = 4.25 in, W = 3.5 in, H = 1 in

Alkaline Kit Includes:
•   Carrying/Charging case
•   5 Radio-Connected LZ Flares
•   5 Ballasted Range Extender Bases
•   AA-Alkaline batteries installed


Rechargeable Battery Version:•   20+ Hour of runtime (continued flash)
•   Powered by Lithium-Ion Rechargeable Battery
•   6 hour recharge time from a completely dead battery
•   Battery status check with push of a button
•   (12) High-Power Infrared LEDs (top)
•   (4) High-Power Visible Green LEDs(side)
•   Flare automatically turns on when removed from the case
•   IP67 water and dust rating
•   30,000 lbs (13,600 kg) crush strength (lab tested and certified)
•   Flare specification: Weight = .5 lbs.
•   Dimensions: L = 4.25 in, W = 3.5 in, H = 1 in

Rechargeable Kit Includes:
•   Carrying/Charging case
•   5 Radio-Connected LZ Flares
•   5 Ballasted Range Extender Bases
•   DC 12/24V Vehicle Plug and 110/240V Wall plug

Grouped product items
SKU Product Name Qty
ICSG2LZGIRG ICS Landing Zone Flare [Alkaline] - Each
$109.00
ICSG2LZGIRG-5 ICS Landing Zone Flare [Alkaline] - Set of 5
$578.00
ICSG2LZGIRG-RE ICS Landing Zone Flare [Rechargeable] - Each
$127.00
ICSG2LZGIRG-5RE ICS Landing Zone Flare [Rechargeable] - Set of 5
$720.00
