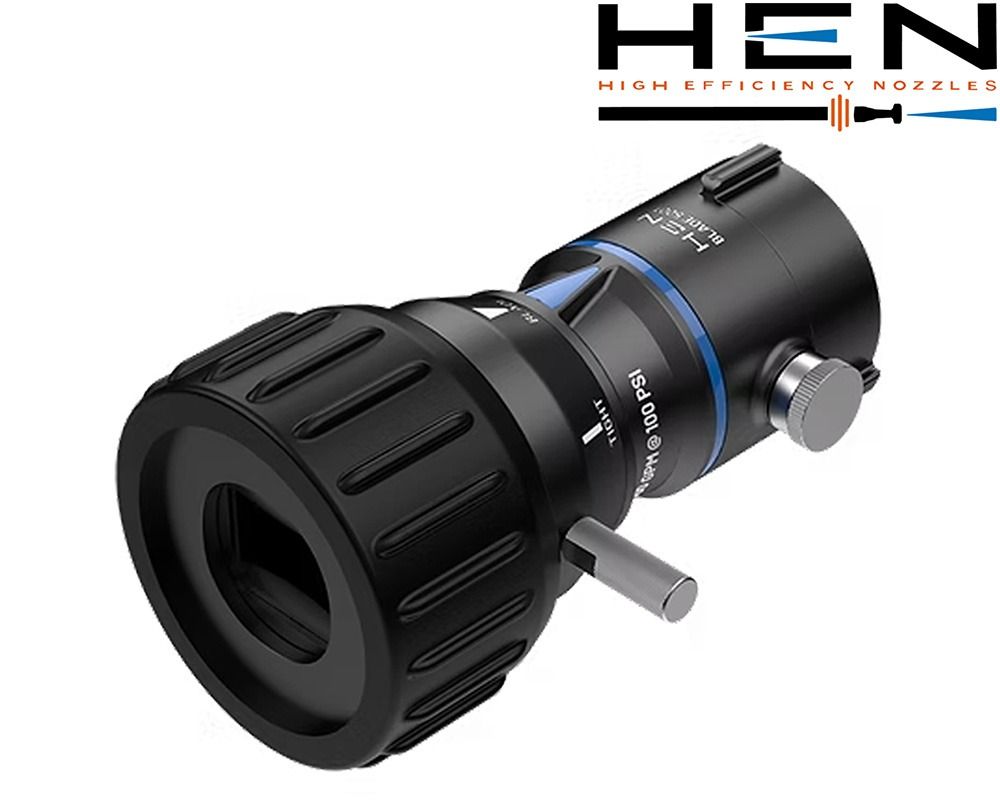

HEN TITAN BLADE Master Steam Nozzle
The HEN TITAN BLADE™ Master Stream nozzle delivers powerful, stable streams with large droplet formation for deep penetration and optimal exterior coverage. The adjustable BLADE™ stream offers tight, high-reach configurations or a solid linear BLADE™ for maximum coverage and suppression.
The TITAN BLADE™ 500 is a game-changer, perfect for portable ground monitors—delivering up to 500 GPM with precise control. Built for versatility and power, the BLADE™ 500 redefines modern master stream performance.
The TITAN BLADE™ 750 and TITAN BLADE™ 1000 deliver unmatched versatility and control, combining large droplet formation with variable velocity for superior stream stability, reach, and penetration. The adjustable BLADE™ stream width and vertical-to-horizontal positioning allow for precise suppression in any fireground scenario. The TITAN BLADE™ 750 and TITAN BLADE™ 1000 are engineered for maximum performance on any structure fire—from residential to high-rise.
| Coverage | |
| Width | Reach |
| ------- 21.3' -------- | 50' |
| ------ 17' ------ | 40' |
| ----- 12.8' ----- | 30' |
| ---- 8.5' ---- | 20' |
| --- 4.3' --- | 10' |
Key Features:
• Solid tight pattern with large water droplets
• Solid linear BLADE™ for maximum coverage
• Hard-coat anodized aluminum construction
• Available with 2.5” NH and 2.5" NPSH
• NFPA 1960/1964 compliant
• 5-Year Warranty
| Model | TITAN BLADE 500 | TITAN BLADE 750 | TITAN BLADE 1000 |
| Target Flow | 500 gpm (1895 lmp) | 750 gpm (2893 lpm) | 1000 gpm (3785 lpm) |
| Target Pressure | 100 psi (7 bar) | ||
| Weight | 7.3 lbs. (3.3 kg) | 7.3 lbs. (3.3 kg) | 6.8 lbs (3.1 kg) |
| Length | 9.5" (241.3 mm) | ||
| Width | 8.0" (203.2 mm) | ||
| Height | 3.7" (94 mm) | ||
| Pressure | Flow Rate | ||
| 50 psi (3.4 bar) | 354 gpm (1340 lpm) | 530 gpm (2006 lpm) | 707 gpm (2676 lpm) |
| 75 psi (5.2 bar) | 433 gpm (1639 lpm) | 650 gpm (2462 lpm) | 866 gpm (3278 lpm) |
| 100 psi (7 bar) | 500 gpm (1893 lpm) | 750 gpm (2839 lpm) | 1000 gpm (3785 lpm) |
| 125 psi (8.6 bar) | 560 gpm (2120 lpm) | 839 gpm (3176 lpm) | 1119 gpm (4236 lpm) |
| 150 psi (10.3 bar) | 613 gpm (2320 lpm) | 919 gpm (3479 lpm) | 1225 gpm (4637 lpm) |
