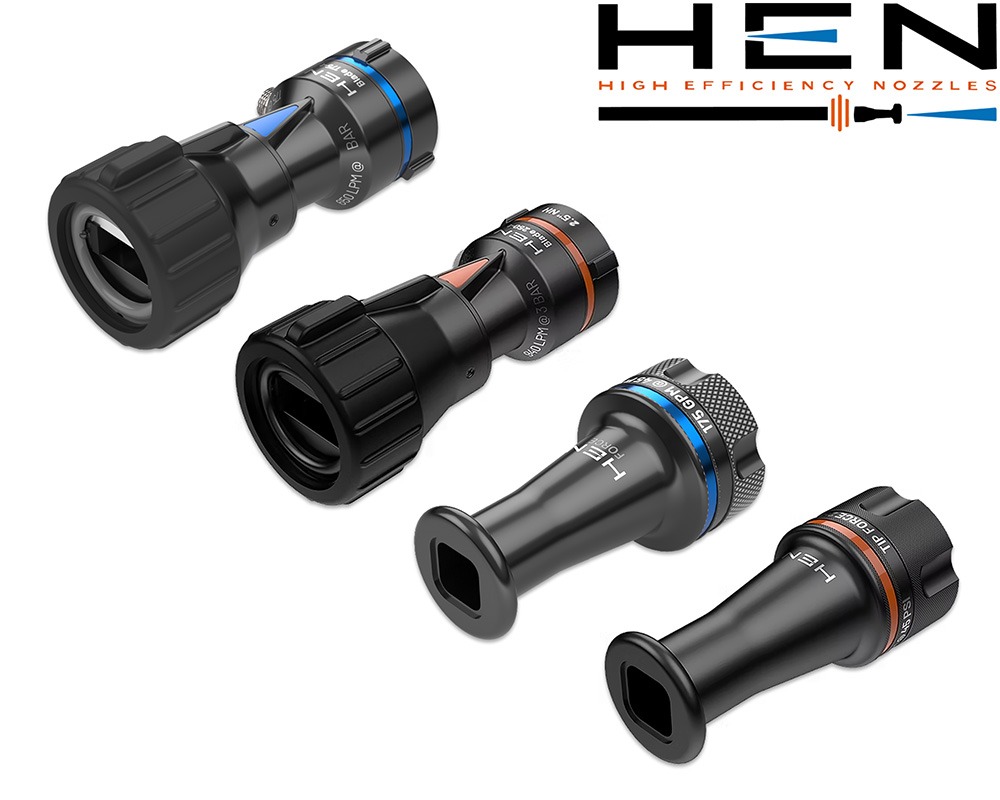

HEN Force Series
- - - BLADE FORCE™ - - -
Combines the power of a smoothbore nozzle with a solid linear BLADE™ stream, delivering both a tight, solid stream for penetration and a blade-like pattern for enhanced fire attack versatility.
Key Features:
• Designed exclusively for use with HYDRO FORCE™ Shutoff with integrated TURBO
• Integrated TURBO in shutoff produces 75 PSI inlet/back pressure
• Works with ALL 1.75" and 2.5" hoselines
• Reduces nozzle whip & hose kinks
• Ergonomic design and heavy-duty construction
• Optimized placement and droplet size
• Aluminum alloy body for maximum durability
• NFPA 1964/1960 compliant
| Model | GPM | Nozzle Pressure (PSI) | Reaction Force (lbs.) | Compatable Shutoff |
| Blade Force 150 | 150 | 45 | 53 | HYDRO FORCE™ 138 (1.5" Inlet) |
| Blade Force 175 | 175 | 45 | 60 | HYDRO FORCE™ 138 (1.5" Inlet) |
| Blade Force 250 | 250 | 45 | 89 | HYDRO FORCE™ 138 (2.5" Inlet/1.5" Outlet) |
- - - TIP FORCE™ - - -
A square-tip smoothbore that when paired with the HYDRO FORCE™ Shutoff produces up to 250 GPM @ 45 PSI with just 60 pounds of nozzle reaction.
Key Features:
• Compatible with HYDRO FORCE™ Shutoff with integrated TURBO
• Integrated TURBO in shutoff produces 75 PSI inlet/back pressure
• Works with ALL 1.75" and 2.5" hoselines
• Reduces nozzle whip & hose kinks
• Ergonomic design and heavy-duty construction
• Optimized placement and droplet size
• Aluminum alloy body for maximum durability
• NFPA 1964/1960 compliant
| Model | GPM | Nozzle Pressure (PSI) | Reaction Force (lbs.) | Compatable Shutoff |
| Tip Force 175 | 175 | 45 | 60 | HYDRO FORCE™ 138 (1.5" Inlet) |
| Tip force 250 | 250 | 45 | 89 | HYDRO FORCE™ 138 (2.5" Inlet/1.5" Inlet) |
