Floating Barrel Strainer

Kochek

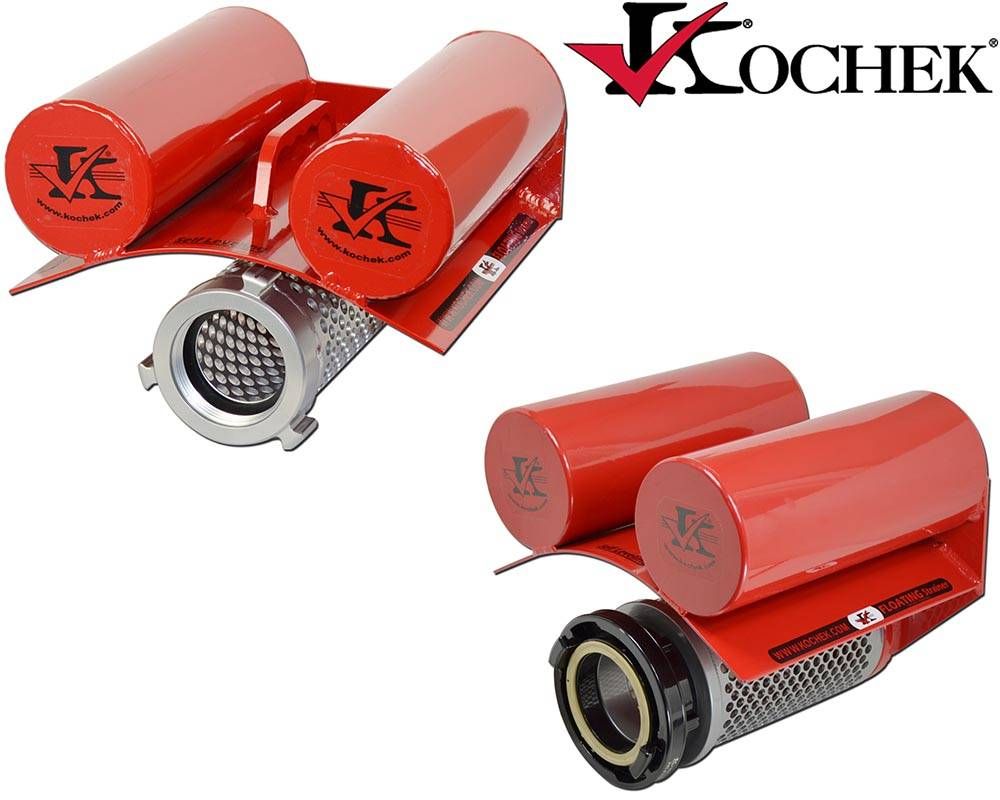

The Kochek Self Leveling Floating Strainer is designed to achieve maximum pump flow capacity with its innovative strainer design. The all-aluminum strainer is equipped with a self-leveling float system that makes drafting possible under almost any condition and the vortex shield protects against whirl pooling.

The Kochek floating strainer is one of the lightest, most compact floating strainers on the market and is available with threaded and Storz connections from 2.5” to 6” sizes. With its balanced handle and light-weight design the self-leveling strainer is easy to carry and deploy quickly. The compact design of the strainer makes for convenient storage.





•    Available in 1.5” - 6” sizes
•    NH threads and Storz connections available
•    Aluminum construction
•    Silver power coat on strainer
•    Red powder coat on floats & shield

 Big Water Model #FBS602
•    Recommended for pump capacities over 1,500 GPM
•    Features 8″ dia. screen with 6” hose connection
•    Big Water model available only with 6" NH threads

Model Weight (lbs.) Length (in.) Height (in.) Width (in.)
FBS15* 2.9 8.5 8.25 5
FBS25 8.75 11.5 11.5 10.25
FBS30 9 11.35 11.5 10.25
FBS40 11.95 11.75 13 14
FBS45 12.1 11.75 13 14.5
FBS50 12.4 11.75 13 15
FBS60 15.8 13.5 14.5 15.2
FBS602** 17 13.5 14.5 15.25

* FBS15 has a single float
** The FBS602 "Big Water" 6 inch Straner is recomended for pumps over 1,500 GPM
Floats and barrel sizes will change according to the size/flow



Grouped product items
SKU Product Name Qty
FBS15-P07-P09 1.5" Floating Strainer - NH Threads
$264.00
FBS25-P07-P09 2.5" Floating Strainer - NH Threads
$486.00
FBS30-P07-P09 3" Floating Strainer - NH Threads
$505.00
FBS40-P07-P09 4" Floating Strainer - NH Threads
$651.00
FBS45-P07-P09 4.5" Floating Strainer - NH Threads
$648.00
FBS50-P07-P09 5" Floating Strainer - NH Threads
$678.00
FBS60-P07-P09 6" Floating Strainer - NH Threads
$729.00
FBS602-P07-P09 Big Water 6" Floating Strainer - NH Threads
$873.00
FBS257-P07-P09-P18 2.5" Floating Strainer - Storz Connection
$522.00
FBS307-P07-P09-P18 3" Floating Strainer - Storz Connection
$514.00
FBS407-P07-P09-P18 4" Floating Strainer - Storz Connection
$755.00
FBS507-P07-P09-P18 5" Floating Strainer - Storz Connection
$762.00
FBS607-P07-P09-P18 6" Floating Strainer - Storz Connection
$935.00
