CMC SL Variable Anchor Strap

CMC

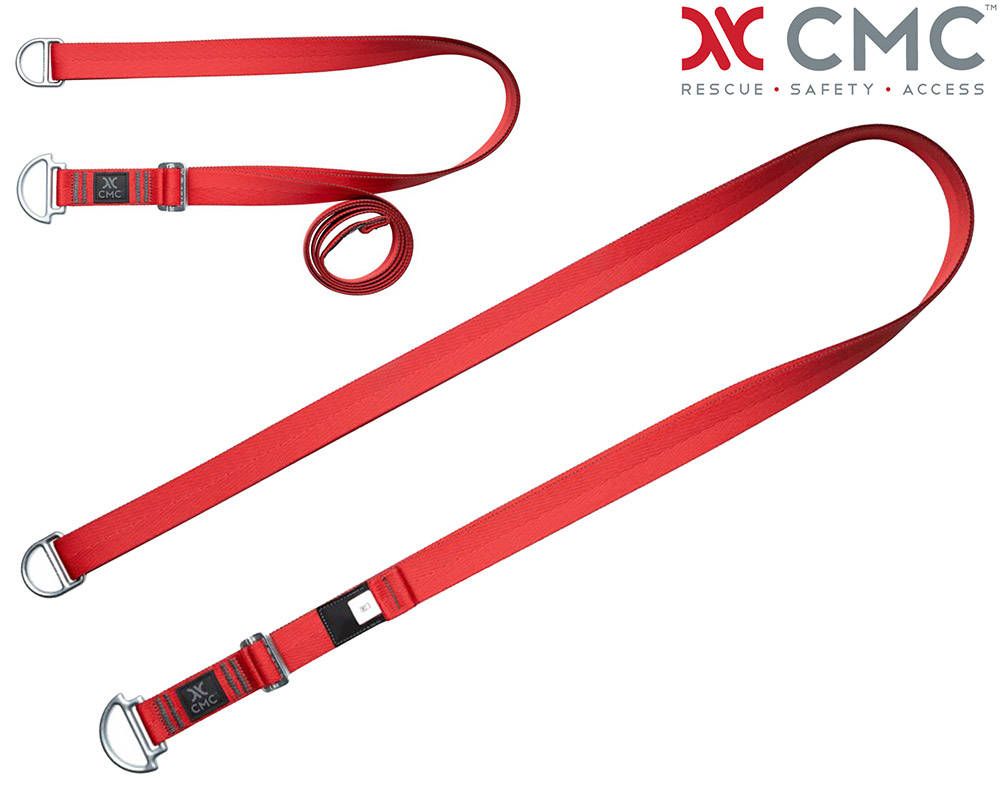

The CMC SL Variable Anchor Strap differs significantly in design and performance from other adjustable anchor straps. By using an additional length of web, it can handle a higher load before slipping. The CMC SL Variable Anchor Strap adjusts from 3 ft. (91 cm) to 7 ft. (213 cm).

The D-ring on one end is larger so the other end can pass through, allowing the strap to be rigged in a choker (girth hitch) configuration and still be adjusted. The high strength, quick adjustability and variable length make this strap a jack of all trades.




The CMC SL Variable Anchor Strap is constructed from a single layer of polyester webbing. Lightweight and compact, CMC SL Variable Anchor Straps are easy to pack, carry, and deploy. It is classified to NFPA General Use for Basket (U) and End-to-End, providing a high breaking strength to withstand heavy loads on the system.

Compared to nylon, the polyester webbing is more resistant to UV , water, and has less elongation. The webbing also stands out due to its bright red color, selected for high visibility, and its contrasting gray stitching that aids with inspection.

CMC SL Variable Anchor Straps are supple, pliable and form easily around structures and feed smoothly through metal grating. It combines NFPA General Use strength with a compact, smooth-handling design that excels in challenging conditions. Consider pairing SL Anchor Straps with CMC’s Anchor Strap Sleeves for increased versatility, durability, and lifetime performance.

Features:
•   Variable length ranges from 3ft to 7ft, increasing versatility
•   Quickly and easily adjusts to desired length, even when rigged in choker
•   Additional length of webbing withstands high load before slipping
•   Steel D-Rings sized to pass through one another for easy girth hitching
•   Single-layer design is compact and lightweight – easy to pack, carry, and deploy
•   Proof-loaded steel hardware and weather-resistant polyester webbing
•   Polyester is more resistant to UV and water, and has less elongation than nylon
•   Supple and pliable – bends easily around structures and metal grating
•   Bright red for high visibility with contrasting gray stitching to aid inspection
•   Combines with anchor sleeves and edge guards to add versatility & durability
•   Classified to NFPA General Use for Basket (U), Choker (Girth Hitch) and End-to-End
•   Made in the USA

Strength Specifications:
•   Basket (U) Configuration: 61 kN (13,713 lbf)
•   Choker (Girth Hitch) Configuration: 31.2 kN (7,014 lbf)
•   End-to-End Configuration: 22.5 kN (5,058 lbf)

Note: CMC recommends using a Delta Quick Link connector (part #382121) to prevent possible tri-axial loading of a carabiner when used in a basket configuration.

Delta 12 mm Link
•    Weight: 9.1 OZ (258 G)
•    Bar Diameter: 12 MM
•    Inside Length: 3-3/16 IN (81 MM)
•    Material: Galvanized Steel
•    Working Load: 10.8 KN (2,425 LBF)
•    Breaking Load: 53.9 KN (12,125 LBF)



Anchor Strap Sleeves
Made from tough #4 duck canvas and a layer of vinyl coated polyester, CMC Anchor Strap Sleeves protect anchor straps from the elements and surface abrasion, reducing wear and tear and increasing safety and service life. Available sizes: Small-Large

Size Weight Length Color
Small 7 oz. 2 ft. Black
Medium 12 oz. 4 ft.
Large 1.2 lbs. 6 ft.

Anchor Straps and Sleeves are sold separate.

Grouped product items
SKU Product Name Qty
201042 SL Variable Anchor Strap
$62.00
382121 Quick Link - Delta - 12mm
$20.50
294032 Anchor Strap Sleeve - Small - 2 ft.
$37.00
294033 Anchor Strap Sleeve - Medium - 4 ft.
$43.00
294034 Anchor Strap Sleeve - Large - 6 ft.
$45.00
