CMC SL Anchor Strap

CMC

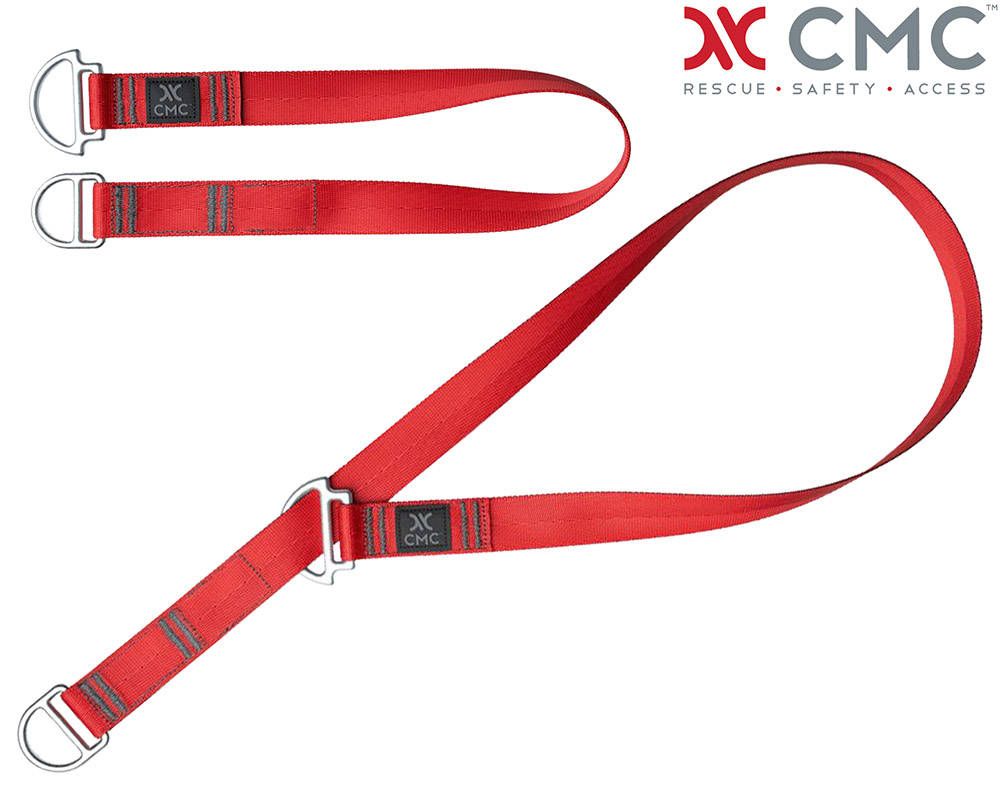

The CMC SL Anchor Straps feature polyester web construction and forged steel D-rings individually proof loaded and sized for easy choker (girth-hitch) configuration. Lightweight and compact, CMC SL Anchor Straps are easy to pack, carry, and deploy. SL Anchor Straps are classified to NFPA General Use for Basket (U), Choker (Girth Hitch) and End-to-End, providing a high breaking strength to withstand heavy loads on the system.

Compared to nylon, the polyester webbing is more resistant to UV , water, and has less elongation. The webbing also stands out due to its bright red color, selected for high visibility, and its contrasting gray stitching that aids with inspection.

CMC SL Anchor Straps are supple, pliable and form easily around structures and feed smoothly through metal grating. It combines NFPA General Use strength with a compact, smooth-handling design that excels in challenging conditions. Consider pairing the SL Anchor Straps with CMC’s Anchor Strap Sleeves for increased versatility, durability, and lifetime performance.





Features:
•   Steel D-Rings sized to pass through one another for easy girth hitching
•   Single-layer design is compact and lightweight – easy to pack, carry, and deploy
•   Proof-loaded steel hardware and weather-resistant polyester webbing
•   Polyester is more resistant to UV and water, and has less elongation than nylon
•   Supple and pliable – bends easily around structures and metal grating
•   Bright red for high visibility with contrasting gray stitching to aid inspection
•   Combines with anchor sleeves and edge guards to add versatility & durability
•   Classified to NFPA General Use for Basket (U), Choker (Girth Hitch) and End-to-End
•   Made in the USA

Strength Specifications for All Sizes:
•   Basket (U) Configuration: 69.7 kN (15,669 lbf)
•   Choker (Girth Hitch) Configuration: 33.9 kN (7,621 lbf)
•   End-to-End Configuration: 33.1 kN (7,441 lbf)

Size Weight Length Color NFPA Rating
Small 0.8 lbs. 3 ft. Red General Use
Medium 0.96 lbs. 5 ft.
Large 1.1 lbs. 7 ft.
X-Large 1.34 lbs 10 ft.
XX-Large 1.73 lbs. 15 ft.

Note: CMC recommends using a Delta Quick Link connector (part #382121) to prevent possible tri-axial loading of a carabiner when used in a basket configuration.

Delta 12 mm Link
•    Weight: 9.1 OZ (258 G)
•    Bar Diameter: 12 MM
•    Inside Length: 3-3/16 IN (81 MM)
•    Material: Galvanized Steel
•    Working Load: 10.8 KN (2,425 LBF)
•    Breaking Load: 53.9 KN (12,125 LBF)



Anchor Strap Sleeves
Made from tough #4 duck canvas and a layer of vinyl coated polyester, CMC Anchor Strap Sleeves protect anchor straps from the elements and surface abrasion, reducing wear and tear and increasing safety and service life. Available sizes: Small-Large.

Size Weight Length Color
Small 7 oz. 2 ft. Black
Medium 12 oz. 4 ft.
Large 1.2 lbs. 6 ft.

Anchor Straps and Anchor Sleeves are sold separate.



Grouped product items
SKU Product Name Qty
201052 CMC SL Anchor Strap - Small - 3 ft.
$39.00
201053 CMC SL Anchor Strap - Medium - 5 ft.
$41.00
201054 CMC SL Anchor Strap - Large - 7 ft.
$44.00
201055 CMC SL Anchor Strap - XL - 10 ft.
$48.00
201056 CMC SL Anchor Strap - XXL - 15 ft.
$54.00
382121 Quick Link - Delta - 12mm
$20.50
294032 Anchor Strap Sleeve - Small - 2 ft.
$37.00
294033 Anchor Strap Sleeve - Medium - 4 ft.
$43.00
294034 Anchor Strap Sleeve - Large - 6 ft.
$45.00
