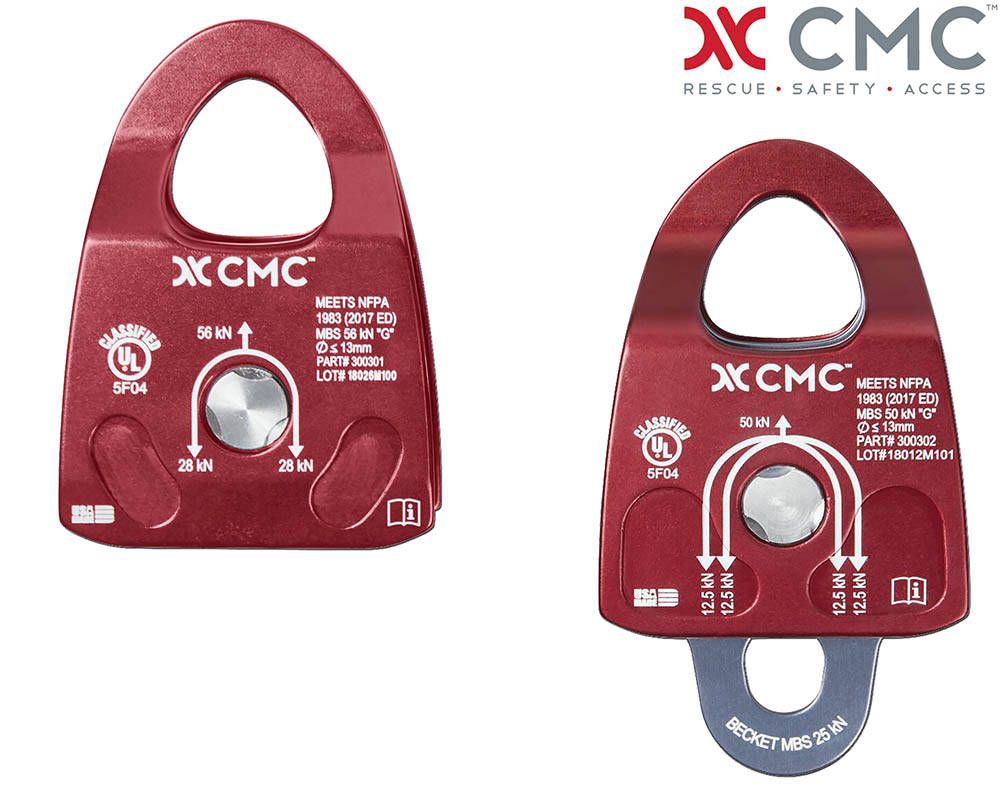

CMC Rescue Pulleys
The CMC Rescue Pulley’s are lightweight, full-strength, Prusik-minding pulley’s that are ideal for mountain rescue, swiftwater, or other technical teams where equipment weight is a consideration. By machining the side plates, the thickness of the metal can be varied to maximize the strength-to-weight ratio, a process that cannot be done with traditional bent metal side plates.
The sealed ball bearings provide high efficiency and aluminum side plates protect the rope. An extremely low-profile stainless steel axle assembly reduces snagging on rocks, roots, and uneven surfaces.
• Designed for life-lines up to 1/2 inch, (13 mm) in diameter.
• Available in Single or Double versions.
• Note: Do not load a single side only of a double sheave pulley.
| Type | Weight | Sheave Thread Size | Color | NFPA Rating | MBS (LBF) |
| Single | 5.1 oz. (145 G) | 1.5" x 0.5" (38mm x 13mm) | Red | General Use | 12,588 lbf. (56 kN) |
| Double | 8.8 oz. (249 G) |
