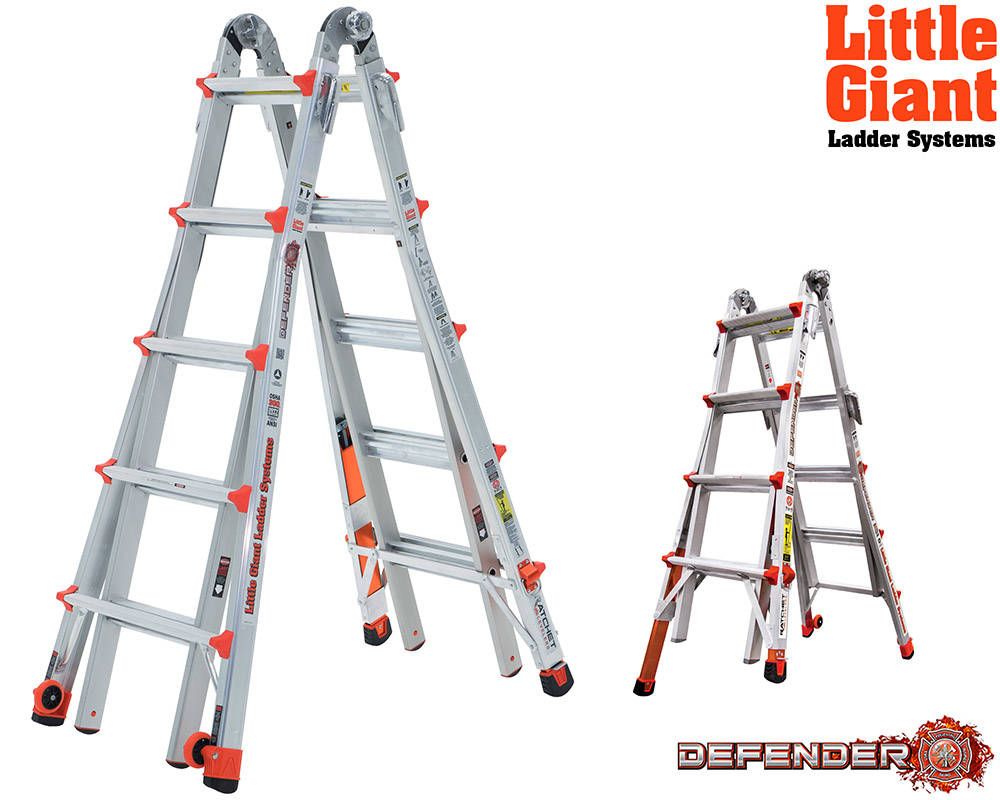

DEFENDER Little Giant Ladder

Little Giant Ladder

The Little Giant Defendr™ ladder system was specifically designed for use by firefighters, the Little Giant Defender offers a number of unique features that cannot be found on just any ladder. Designed to fit in the storage space of most fire apparatus, this lightweight ladder offers the strength and versatility necessary when facing an emergency situation.

Addressing the Needs of Firefighters

To help meet the unique needs of firefighters, the Little giant Defender boasts a number of features designed with firefighters in mind. The Quad-Lock hinge and the Rock Locks rung fasteners, both of which are designed to be easily adjusted while wearing heavy firefighter gloves. The special high-viz reflective labels and heat-sensor labels also alert firefighters when the ladder has been exposed to excessive heat and needs to be taken out of service. The Defender ladder also boasts a lightweight design that makes it easy for transport and deployment.

Ratchet Levelers™ – Working on uneven ground due to slope or debris? The Ratchet Levelers adjust in seconds to provide an even, level setup over a wide range of uneven surfaces or debris. The Ratchet Levelers are specifically designed for easy operation while wearing heavy firefighting gloves.

Versatility and Ease of Use

To help meet the needs of any emergency situation, the Defender ladder can be configured in dozens of different ways. Among these is a 90-degree ladder, an A-frame, an extension ladder and a trestle-and-plank scaffolding system. The ladder also boasts heavy-duty casters to allow for easy and fast transport, while the wide-flared legs and aluminum construction help to increase safety and stability.

Easy Transport – The Overhaul Ladder is equipped with heavy duty casters for quick, easy transport.

Easy Carrying – The Overhaul Ladder is designed to be extremely mobile and easy to move from place to place. It is equipped with a large, solid aluminum carrying handle that is easy to grip while wearing firefighter gloves.

Heat Sensing Technology – The Overhaul Ladder has special heat-sensing labels that indicate when the ladder has been exposed to damaging temperatures and should be taken out of service.

	A-Frame Ladder With a simple click of the patented hinge, the Little Giant can be used as a traditional A-Frame ladder.
	Staircase Ladder Because it's adjustable in one-foot increments, the Little Giant allows one side of the ladder to be extended allowing safe use on uneven surfaces like staircases, curbs or docks.
	90° Ladder Traditional ladders make working close to walls nearly impossible. With the Little Giant, one adjustment allows you to safely work against any vertical surface.
	Extension Ladder For large projects the Little Giant easily converts to a stable extension ladder allowing you to reach rooftops, tree limbs and more with ease.
	Scaffolding Since the Little Giant pulls apart to form two scaffold trestles, you just add the optional work plank (sold separately) and trestle brackets (sold separately) to form a convenient scaffolding system.

Defender Firefighter Ladder - Type 1AA
	Model 17	Model 22
Weight Capacity	300 lbs.	300 lbs.
90⁰ Ladder	Yes	Yes
ANSI Duty Rating	Type IA - Extra Heavy Duty	Type IA - Extra Heavy Duty
Country of Origin	USA	USA
Extension Max. Height	14' 11"	18' 11"
Extension Max. Reach	18' 1"	22'
Extension Max. Height	14' 11"	18' 11"
Extension Min. Height	8' 11"	10' 11"
Extension Total Length of Sections	17' 2"	21' 2"
Extension Highest Standing Level Max	11' 7"	15' 6"
Extension Max Working Length	14' 11"	18' 11"
Extension Lock	Rock Locks	Rock Locks
Feet	Non-marring	Non-marring
Ladder Weight	46 lbs.	46.5 lbs.
Inside Clear Width	1' 0.5"	1' 0.5"
Ladder Material	Aluminum	Aluminum
Outter Rung Depth	1.5"	1.5"
Hinge Lock System	Quad-Lock	Quad-Lock
Rung Size Double Section	3.5"	3.5"
Rung Size Single Section	1.38"	1.38"
Stepladder Highest Standing Level	4' 10"	6' 8"
Stepladder Max. Footprint	5' 2.25"	6' 4.5"
Stepladder Max. Reach	11' 4"	13' 2"
Storage Depth	9"	9"
Storage Height	4' 7"	5.7"
Top Width	1' 6"	1' 6"
Storage Width @ Base	2'	2' 3"
Tip & Glide Wheels	Yes	Yes
Warranty	5 Years	5 Years

NFPA Compliance – The Little Giant Defender ladder system is designed to meet the requirements of NFPA 1931, Standard for Manufacturer’s Design of Fire Department Ground Ladders, and has been tested to the requirements of NFPA 1932-2015, Standard on Use, Maintenance, and Service Testing of In-Service Fire Department Ground Ladders. The ladder meets or exceeds all OSHA and ANSI standards and is IA rated to hold 300 lbs., and in its stepladder configuration, can hold 300 lbs. on both sides.

SHIPPING NOTE: Due to the length of this item, shipping carries (UPS, FedEx and USPS) charge an “over-length” shipping fee.

1. You may complete your order online, however there will be no shipping charges displayed at checkout. A First Out Rescue Equipment specialist will contact you to make delivery arrangements and provide the final cost of your order, including the actual shipping charges.

2. You can use the "Request A Quote" payment option at checkout. A First Out Rescue Equipment specialist will be in contact and provide the total cost of your order, including the shipping charges.

Grouped product items
SKU	Product Name	Qty
15187-882	DEFENDER Little Giant - Model 17 $620.00
15182-882	DEFENDER Little Giant - Model 22 $775.00

DEFENDER Little Giant Ladder

A-Frame Ladder

Staircase Ladder

90° Ladder

Extension Ladder

Scaffolding
