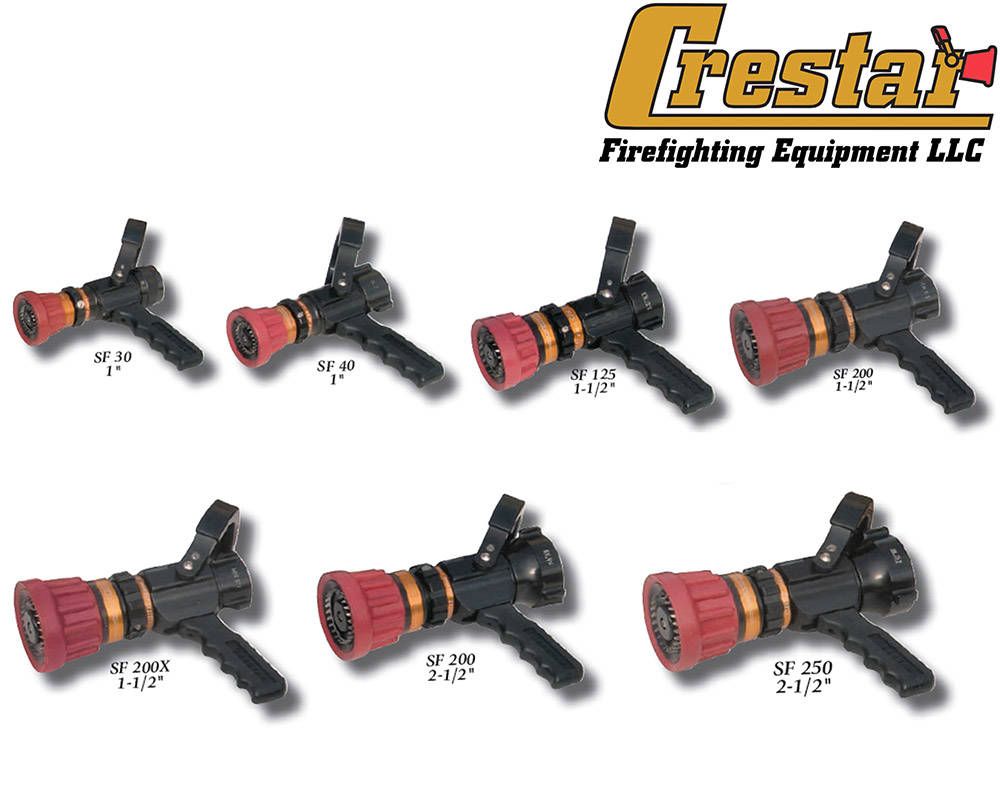

Crestar Select Flow Nozzle
• Selectable gallonage nozzle with multiple flow settings
• Stainless steel spinning fog teeth
• Stainless steel ball enables ball shut off handle to work smoothly at extreme ranges
• Straight stream to wide fog and flush without shutting down
• Permanent anodized indicator bands
• Metal Horseshoe handle
• Multiple pattern detents for positive positioning
• Swivel female inlet with strainer
• Wide fog for maximum operator protection
• NFPA 1964 compliant
• 100 PSI (7.0 BAR), 75 PSI (5 BAR) or 50 PSI (3.5 BAR) models available
• NH or NPSH threads
• All nozzles available with or without pistol grip
Tip Only Models Available: (Tip Only models do not include pistol grip or ball shut-off)
• SF125T
• SF200T
• SF250T
| Model | Inlet | Length | Weight (lbs.) |
Pressure PSI/BAR |
Gallons/Minute |
| High Pressure Models (100 PSI / 7 Bar) | |||||
| SF30 | 1" | 7" | 3.8 | 100/7.0 | 12-23-30 |
| SF40 | 1" | 7" | 3.8 | 100/7.0 | 5-10-24-40 |
| SF125 | 1.5" | 8.5" | 3.8 | 100/7.0 | 30-60-95-125 |
| SF125T (Tip Only) | 1.5" | 6.4" | 2.0 | 100/7.0 | 30-60-95-125 |
| SF200-1.5 | 1.5" |
9.8" | 5.5 | 100/7.0 | 95-125-150-200 |
| SF200-2.5 | 2.5" | 9.8" | 5.5 | 100/7.0 | 95-125-150-200 |
| SF200T (Tip Only) | 1.5" | 7" | 3.2" | 100/7.0 | 95-125-150-200 |
| SF200X-1.5 | 1.5" |
9.8" | 5.5 | 100/7.0 | 30-60-95-125-150-200 |
| SF200X-2.5 | 2.5" | 9.8" | 5.5 | 100/7.0 | 30-60-95-125-150-200 |
| SF250 | 2.5" | 9.8" | 6.3 | 100/7.0 | 95-125-150-200-250 |
| SF250T (Tip Only) |
1.5" | 7" | 3.2 | 100/7.0 | 95-125-150-200-250 |
| Low Pressure Models (75 PSI / 5 Bar) | |||||
| SF125-LP75 | 1.5" | 8.5" | 3.8 | 75/5 | 30-60-95-125 |
| SF125T-LP75 (Tip Only) | 1.5" | 6.4" | 2.0 | 75/5 | 30-60-95-125 |
| SF150-LP75 | 1.5" | 9" | 3.9 | 75/5 | 30-60-95-125-150 |
| SF200-LP75-1.5 | 1.5" | 9.8" | 5.5 | 75/5 | 95-125-150-200 |
| SF200-LP75-2.5 | 2.5" | 9.8" | 5.5 | 75/5 | 95-125-150-200 |
| SF200T-LP75 (Tip Only) |
1.5" | 7" | 3.2 | 75/5 | 95-125-150-200 |
| SF200X-LP75-1.5 | 1.5" | 9.8" | 5.5 | 75/5 | 30-60-95-125-150-200 |
| SF200X-LP75-2.5 | 2.5" | 9.8" | 5.5 | 75/5 | 30-60-95-125-150-200 |
| SF250-LP75 | 2.5" | 9.8" | 6.3 | 75/5 | 95-125-150-200-250 |
| SF250T-LP75 (Tip Only) |
1.5" | 7" | 3.2 | 95-125-150-200-250 | |
