CMC USAR Task Force Rigging Kit
The CMC USAR Task Force Rigging Kit contains the necessary rope rescue equipment for Urban Search and Rescue (USAR) operations. It includes the primary rope rescue equipment on most FEMA and USAR requirements lists and serves as an excellent choice for a truck or engine company that responds to over-the-side rescues or needs vertical lift capability for trench or confined space rescues.
The equipment provided in the CMC USAR Task Force Rigging Kit allows for a main and belay line, mechanical advantage, litter with patient-packaging system, gear for building anchors, AZTEK ProSeries™ LT System, and two of the CMC CLUTCH™ BY HARKEN™ for efficient raising and smooth lowering. The innovative features of the CLUTCH make it ideal for technical rescues including the ratcheting rotating sheave, Anti-Panic brake, force limiting protection, and integrated becket.

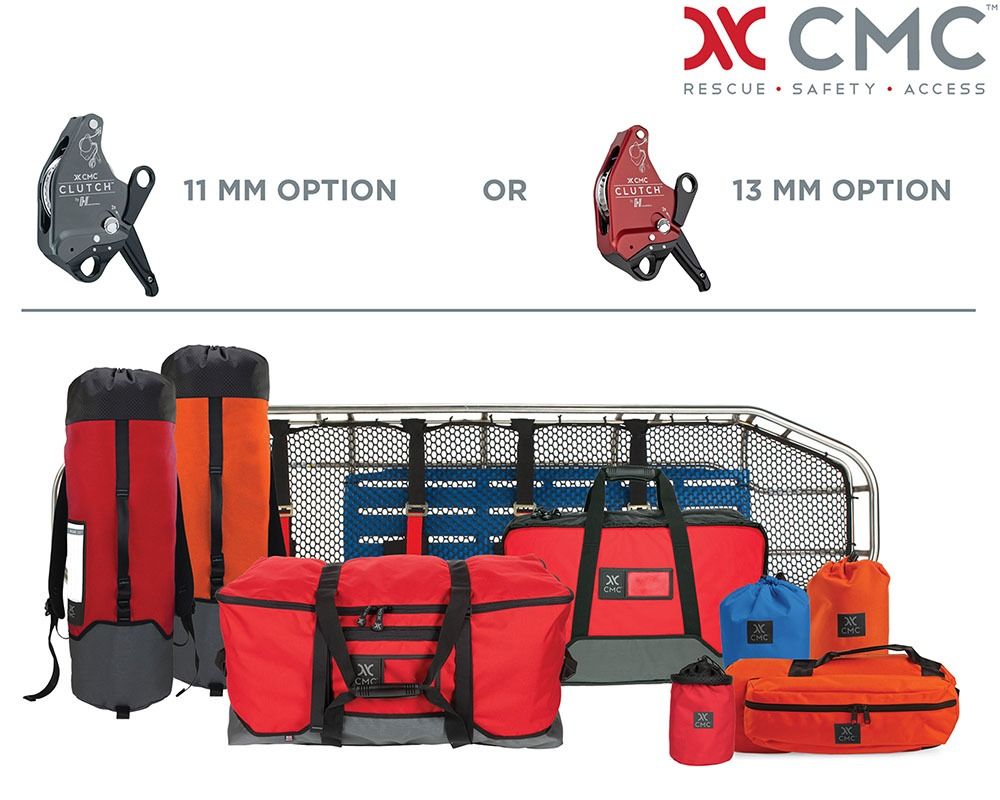

Two options of this kit are available based on the desired rope size:
• The 11 mm (7/16 in) USAR Rigging Kit includes all the items below plus two 11 mm CLUTCH units and two 200 ft lengths of 11 mm G11™ rope.
• The 13 mm USAR Rigging Kit includes all the items below plus two 13 mm CLUTCH units and two 200 ft lengths of 12.5 mm Static-Pro™ rope.
In addition to the equipment provided in this USAR Rigging Kit, CMC recommends outfitting each team member with the gear in the CMC Technical Rope Rescuer Personal Kit.
The CMC USAR Task Force Rigging Kit comes with bags and packs for easy equipment organization, storage, transport, and deployment.
|
|
|
| 11 mm & 13 mm Kit Contents | |
| Qty. | Bags & Packs |
| 1 | Shasta Gear Bag w/ Shoulder Strap- Red |
| 1 | Truck Cache Bag-Red |
| 1 | Liter Pack Bag - Orange |
| 1 | #2 CMC Rope Bag - Orange |
| 1 | #2 CMC Rope Bag - Red |
| Technical Gear | |
| 1 | AZTEK ProSereis LT System |
| 9 | ProSeries Aluminum Screw-Lock Carabiner-Brite |
| 3 | ProSwivel Pulley 1.5” Single PMP |
| 1 | ProSwivel Pulley 1.5” Double |
| 6 | 1" Tubular Webbing - Green - 5 ft. |
| 6 | 1" Tubular Webbing - Yellow - 12 ft. |
| 6 | 1" Tubular Webbing - Blue - 15 ft. |
| 6 | 1" Tubular Webbing - Red - 20 ft. |
| 2 | SL Strap, Fastlink Anchor Strap, Med. Red |
| 1 | Fastlink Pick-Off Strap |
| 5 | Prusik Sewn Loop, 8mm, Red, 18” |
| 1 | CMC Rope Rescue Manual |
| Patient Packaging | |
| 1 | ProSereis Liter Harness |
| 1 | Patient Tie-In System (1 pc. Liter) |
| 1 | Pelvic Harness Tie-In System |
| 1 | Lifesaver Victim Harness |
| 4 | Adjustatble Liter Strap |
| 1 | Stainless Steel Rectangular Liter Basket |
| Edge Protection | |
| 2 | Anchor Strap Sleeve Med. |
| 2 | Edge Pad - XL |
| 1 | Ultra Pro 4 Edge Protector |
11 mm Kit Includes:
• CLUTCH, 11 MM (7/16 IN) (Qty. 2)
• ROPE, G11, 11 MM (7/16 IN), BLU/WHITE (200 ft)
• ROPE, G11, 11 MM (7/16 IN), RED/WHITE (200 ft)
13 mm Kit Includes:
• CLUTCH, 13 MM (1/2 IN) (Qty. 2)
• ROPE, STATIC-PRO, 12.5 MM (1/2 IN), ORG (200 ft)
• ROPE, STATIC-PRO, 12.5 MM (1/2 IN), RED (200 ft)
View CMC USAR Task Force Rigging Kit Product Sheet [PDF]
SHIPPING NOTE: Due to the size and weight of the Rope Rescue Rigging Kit, there will be no shipping charges displayed at checkout for these items. Truck freight/shipping must be arranged by phone or email. You may complete your order online and a First Out Rescue specialist will contact you to make delivery arrangements and provide the final cost for your order including freight charges.
