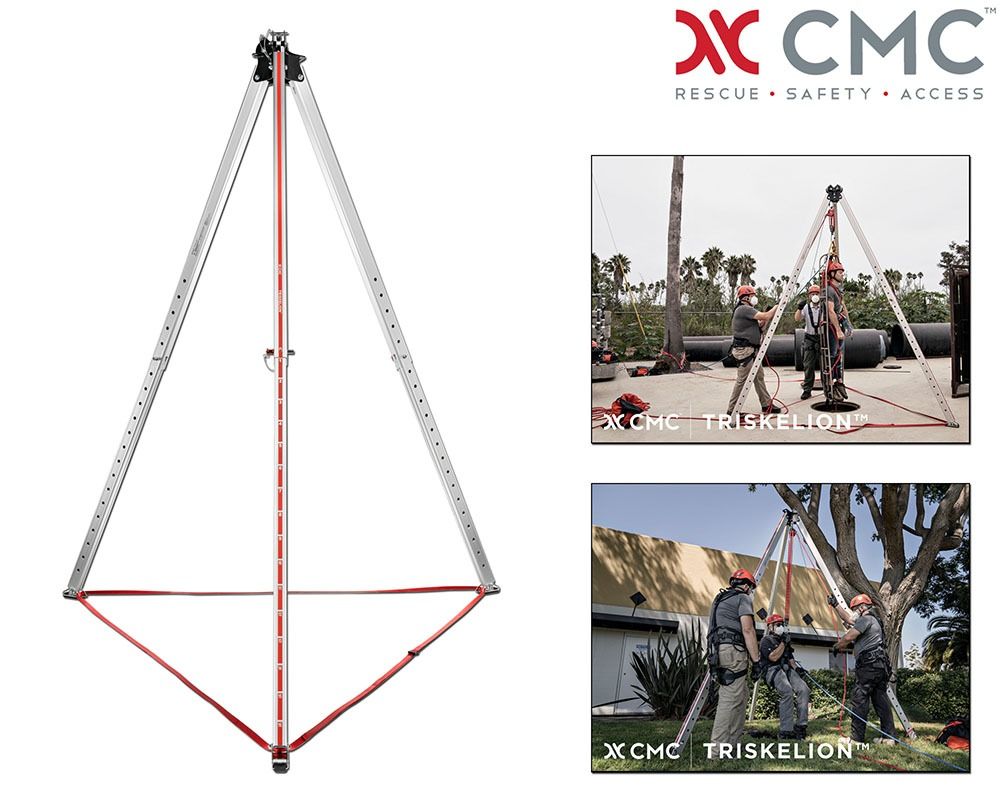

CMC TRISKELION Confined Space Tripod
The CMC Triskelion is a full featured industrial rescue tripod that sets a new benchmark for rapid deployment, ease of use, and versatility. With height adjustment from 5.5 ft. – 10 ft working height, certification to NFPA and EN standards, and multiple rigging options, the CMC Triskelion delivers greater safety and efficiency for confined space and industrial rescues.
The Triskelion’s modern, user-friendly design increases both the safety and efficiency of each rescue. In the words of CMC School Instructor Doug McElmury, “The Triskelion is easily the most user friendly and practical tripod I have used in my 36 years in technical rescue. From the head to the feet, this well-designed tripod shows that CMC listened to what rescuers wanted and made it a reality”.
The CMC Triskelion’s wide working height range adapts to fit low-clearance areas and extends to haul patients in full-size litters. Triskelion unique features include:
• Compatibility with cable and rope up to 13 mm (1/2 in)
• Anchor points for pulley systems
• Multiple winch mounting options
• Rectangular legs with built-in stoppers
• Tethered push pins
• High contrast graphics
• Pivoting feet
• Quick-connect webbing hobble strap
• Reinforced carry bag for single or two-person transport.
Triskelion Features:
Height:
• 5.5ft min. working height facilitates access to low-clearance areas
• 10ft max. (allows rescuers to haul patients using a harness or litter)
Rigging:
• Two head-mounted stainless steel pulleys
• Pulleys are compatible with cable and rope up to 13 mm (1/2 in)
• Three side-plate anchor points ideal for 4:1 MA like the CSR2 pulley system
• Three tie-off points for additional rigging or stabilization
• Mounting option for the Harken LokHead Winch
Legs:
• Rectangular shape prevents spinning and aligns adjustment holes & tripod feet
• Built-in stoppers keep the inner legs from pulling out all the way
• Legs will fully extend without risk of separation.
• 4 in. leg height increments allow for custom height adjustment
Pins:
• Legs are secured using large, quick-action, ball-lock push pins
• Pins are easily handled with gloves
• Push pins reassuringly snap into place
• Robust pin lanyards keep them from getting lost or separated
Graphics:
• High contrast graphics are easy to see in low light
• Leg height numbering is clearly communicated in noisy environments
• Icons guide winch installation to align with head-mounted pulleys
Feet:
• Pivoting feet adapt the Triskelion to a variety of surfaces and/or angles
• Feet have non-slip tread for hard surfaces/floors and spiked tips for soft earth
Hobble:
• Red webbing hobble strap secures all three legs at the base
• Hobble strap uses a single quick-connect Cobra Buckle
• Single webbing strap is lighter than chain and faster than multiple lengths of material
• Red color is easy to see reducing risk of a trip hazard
Storage/Transport Bag:
• Includes a reinforced carry bag with a diagram indicating proper orientation for balanced single-person transport.
• Single person carry using the padded center shoulder strap.
• Easily carried by two people using the end handles
Triskelion Specifications:
• Min Working Height: 1.7 m (5.5 ft)
• Max Working Height: 3 m (10 ft)
• Tripod Weight: 32 kg (70 lb)
• Packed Length in Bag: 2.1 m (7 ft)
• Packed Width x Height: .1 m (1 ft) x .1 m (1ft)
Tripod Footprint:
• Inside Diameter of Feet:
o Minimum Height: 158 cm (62.2 in)
o Maximum Height: 282 cm (111 in)
• Outside Diameter of Feet:
o Minimum Height: 193 cm (76 in)
o Maximum Height: 317 cm (124.8 in)
MBS:
• Attached directly to head: 36 kN (8,093 lbf)
• Attached to leg over pulley: 22 kN (4946 lbf)
Certification:
• NFPA – General Use
• EN 795:2012 Type B for Single Person Use
• CEN/TS 16415:2013 Type B for 2 Person Use
Triskelion Components:
• Triskelion Tripod
• Hobble Strap
• Carry Bag
• Leg Strap
• User Manual
The Triskelion is also supported by numerous accessories that enhance its capabilities and increase ease of use. TRISKELION Accessories are Sold Separately.
Equipment Bracket
• Provides additional anchor/tie-off point when attached to the leg
• Attaches quickly and easily using two push-pins equipped with wire lanyards
• Installs on inside or outside of tripod leg, allowing multiple rigging options
• Supports M/A systems, rope devices, and use of pulleys at the Triskelion head
• MBS 22 kN, working load limit of 220 kg (484 lb) based on 10:1 safety factor
LokHead Winch Adapter
• Enables the Harken LokHead Winch to be mounted and used with the Triskelion
• Quickly and smoothly installed using large, quick-action, ball-lock push pins
• Easier, more refined installation than the traditional u-bolt and anchor strap system
• Self-contained, secure attachment that mounts on inside and outside of legs
Triskelion Foot Step
• Quick and safe way to correct problems, adjust rigging, and perform safety checks while Triskelion is fully extended
• Allows operator to reach the head after setup
• Mounts to the lower section of the Triskelion leg
• Weight (each): 1.4 lbs. (637 G)
• Dimensions: 8.8” x 5.6” x 7.1” (224 mm x 143 mm x 180 mm)
• Available as single step (760010) or as a pair (760015)
Ground Stake Kit
• Integrates with the Triskelion feet to provide additional security on soft ground
• Stake Weight (each): 2.3 lbs. (1 kg)
• Stake Dimensions (each): 8.8” x 5.6” x 7.1” (224 mm x 143 mm x 180 mm)
• Set of 3 Ground Stakes
