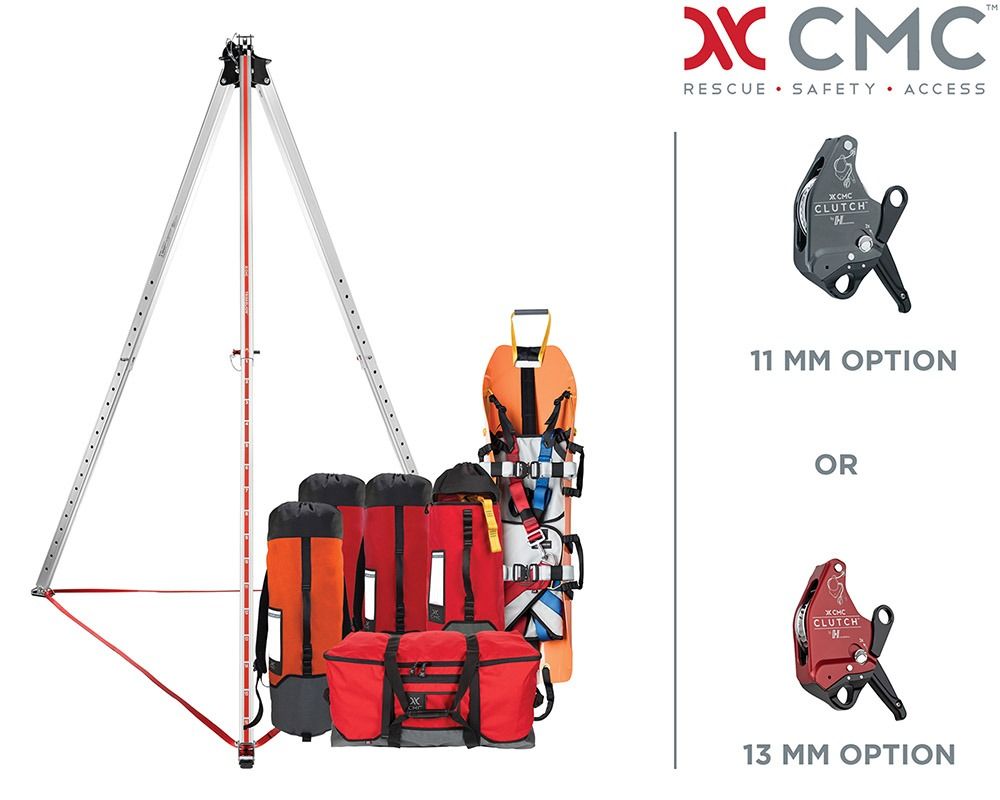

CMC Confined Space Rigging Kit
The CMC Confined Space Rigging Kit contains the necessary equipment for vertical entry in confined space rescue operations. It includes a primary access line, belay/retrieval system, and patient packaging equipment. The products in the CMC Confined Sace Rigging Kit are provided for optimal safety and efficiency including the CMC CSR2 Pulley System™ for 4:1 raising and lowering, the CMC Triskelion™ as artificial high directional, and the CMC CLUTCH™ BY HARKEN™ for smooth rope management. Innovative features of the CLUTCH make it ideal for technical rescues including the ratcheting rotating sheave, Anti-Panic brake, force limiting protection, and integrated becket.
Two options of this kit are available based on the desired rope size. The 11 mm (7/16 in) Kit includes all the items below plus the 11 mm CLUTCH, three 200 ft lengths of 11 mm G11™ rope, and the 11 mm CSR2 Pulley System.
The 13 mm Kit includes all the items below plus the 13 mm CLUTCH, three 200 ft lengths of 12.5 mm Static-Pro™ rope, and the 12.5 mm CSR2 Pulley System. In addition to the equipment provided in this CSR Rigging Kit.
In addition, CMC recommends outfitting each team member with the gear in the Confined Space Entrant Personal Kit.
The CMC Confined Space Rigging Kit comes with bags and packs for easy equipment organization, storage, transport, and deployment.
| CMC Confined Space Rigging Kit Contents | |
| Qty. | Equipment |
| Bags & Packs | |
| 1 | SHASTA Gear Bag - Red |
| 1 | Rope & Equipment Bag – Medium, Red |
| 1 | Rope Bag #2 - Orange |
| 1 | Rope Bag #2 - Red |
| Technical Gear | |
| 1 | CMC Triskelion tripod |
| 1 | Anchor Plate – Aluminum, Red |
| 18 | Pro Series Aluminum Carabiner Screw-Lock |
| 2 | ProSwivel Pulley 1.5” Single Sheeve PMP |
| 5 | 1" Tubular Webbing - Red x 20 ft. |
| 4 | 1" Tubular Webbing - Yellow x 12 ft. |
| 1 | FastLink Anchor Strap-Medium (5 ft.) |
| 4 | 8mm Sewn Prusik Loop - 18" - Red |
| 1 | Confined Space Rescue Manual |
| Patient Packaging | |
| 1 | Lifesaver Victim Harness |
| 1 | Lifsaver Chest Harness |
| 1 | SKEDCO Drag-N-Lift Harness w/ Spreader Bar |
| Edge Protection | |
| 2 | Edge Pad XL |
| 1 | Anchor Strap Sleeve- 4 ft . (Med.) |
| 1 | BORN Entry Ease |
| Qty. | Equipment |
| 11 mm Kit Includes | |
| 1 | CLUTCH 11 mm (7/16") |
| 1 | CSR2 Pulley System 11mm (7/16") |
| 200 ft. | 11 mm (7/16") G11 Rope - Orange/White |
| 200 ft. | 11 mm (7/16") G11 Rope - Blue/White |
| 200 ft. | 11 mm (7/16") G11 Rope - Red/White |
| 13 mm Kit Includes | |
| 1 | CLUTCH 13 mm (1/2") |
| 1 | CSR2 Pulley System 113m (1/2") |
| 200 ft. | 12.5 mm (1/2") Static-Pro Rope - Orange |
| 200 ft. | 12.5 mm (1/2") Static-Pro Rope - Blue |
| 200 ft. | 12.5 mm (1/2") Static-Pro Rope - Yellow |
SHIPPING NOTE: Due to the size/weight of this product, shipping/truck delivery must be arranged by phone or email. You may complete your order online, however there will be no shipping charges displayed at checkout. A First Out Rescue specialist will contact you to make delivery arrangements and give you the final cost for your order including freight charges.
