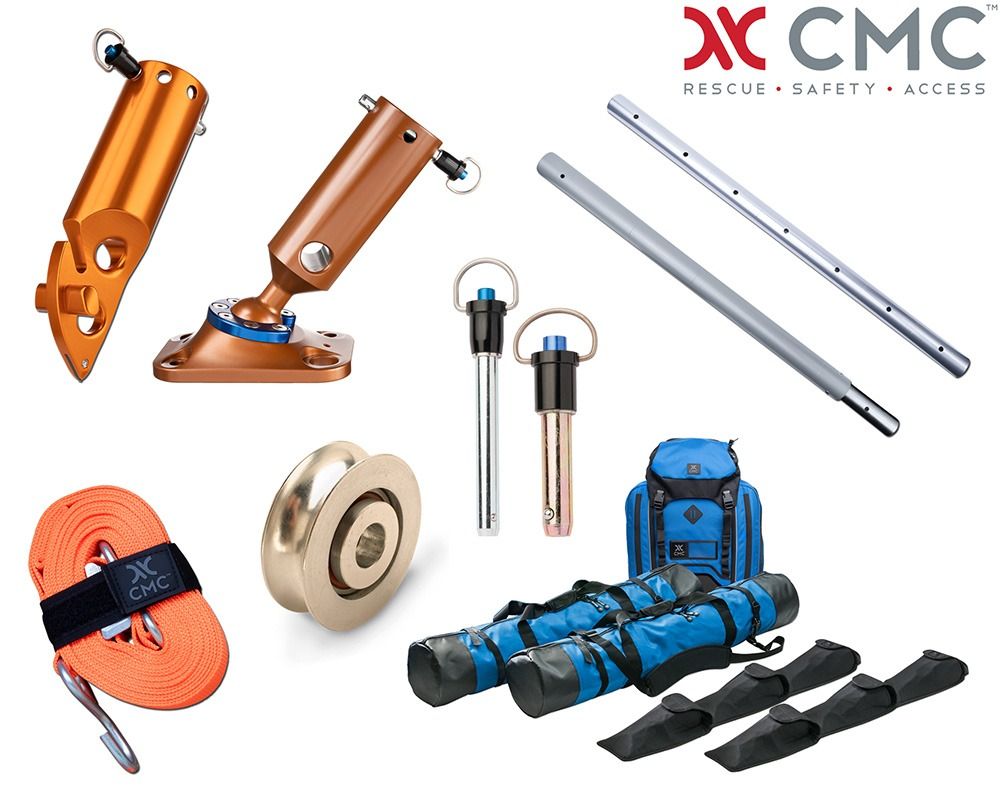

Arizona VORTEX Spare/Replacement Parts

Raptor (Claw) Foot – Uses replaceable carbide tip for optimal grip on hard surfaces. Rotates to adjust orientation.
•    Weight (each). 6.6 lbs. (3 kg)
•    Available as single foot – 727010
•    Set of three (3)feet – 727210

Raptor Claw Foot Replacement Carbide - 727011
•    Replaces worn/damaged Raptor Claw foot carbide insert.

Flat (Omni) Foot – Features replaceable rubber sole for optimal grip on hard/flat surfaces.
•    Ball joint easily adjusts to necessary angle.
•    Weight (each): 2.87 lbs. (1.3 kg)
•    Available as each – 727020
•    Set of three (3) - 727220

Flat Foot Replacement Pad – 727021
•    Replaces a worn pad on the Flat Foot.
•    Only compatible with the recent version of the Flat Foot (updated Dec. 2020)

Vortex Inner Leg – 727030
•    This is the clear anodized, Inner Leg of the Arizona Vortex
•    Sold as an individual unit to serve as a replacement.
•    Raptor Feet and Flat Feet are not included with the Inner Leg.
•    Weight: 4.8 lbs. (2.2 KG)

Vortex Outer Leg – 727040
•    This is the anodized outer leg of the Arizona Vortex
•    Sold as an individual unit to serve as a replacement.
•    Raptor Feet and Flat Feet are not included with the Inner Leg.
•    Weight: 4.8 lbs. (2.2 KG)

Arizona Vortex Replacement Pins
•    Replacement Pin Set contains (2) Head pins and (4) Leg Pins. - 727420
•    Replacement ½” Head Pin (each) - 727060
•    Replacement 3/8” Leg Pin (each) - 727070

Arizona Head Pully Wheel – 727090
•    Replacement Head Set Pulley Wheel for Arizona Vortex (pin NOT included)

Arizona Vortex Leg Bag – 727115
•    The Vortex Leg Bag features carry handles
•    Adjustable padded shoulder sling for easy transport.
•    End-to-end zippers provide full length opening in either direction for easy access.
•    Two internal padded dividers allow for separated protection of legs.
•    Compression straps around the girth of the bag to keep gear snugly in place.
•    Bag Dimensions: 42.5” x 9” x 6” (108 cm x 23 cm x 15 cm).

Arizona Vortex Foot Sleeve - 727135
•    The Vortex padded foot sleeve securely holds three (3) Vortex feet.
•    Accommodates either flat or raptor style feet

Arizona Vortex Bag Set  - 727200
•    The Arizona Vortex Bag System is included with the full Arizona Vortex Kit.
•    Purchase this Arizona Vortex Bag System if you need to renew or replace your current set.
•    Individual Leg Bags are also available for separate purchase.

Arizona Vortex Hobble Strap – 727140
The Arizona Vortex Hobble Straps are the fast and easy way to securely hobble Vortex legs. Strap adjusts in length up to 20 ft (6 m) for leg-to-leg spans that require running hobbles over objects such as beams, curbs, stumps, rocks or uneven ground.
•    Independent hobbles are now a UL certification requirement when using the Vortex in its tripod configuration.
•    Manufactured with high-vis orange 1” flat web
•    Quick-adjusting cam buckle.
•    Two steel S-hooks offer simple connection to Vortex feet
•    An integral adjustable keeper strap is provided to manage excess web
•    Hobble Straps are rated at 5 kN (1,124 lbf).
•    Sold individually.
•    Three required for full set of legs.
