Ajax Rescue Tools AXESS 11 Kit
The X11 Axess tool is designed for cutting metal, chipping concrete or masonry brick, and digging in dirt or gravel. It is your all-purpose tool for applications such as forcible entry, trench rescue, structural collapse, mining collapse, and confined space rescue.
The X11 Axess includes an Ajax Kwik Change Retainer. This retainer was originally developed by Ajax to hold the cutting tool securely in place, yet allowing you to change tools in a matter of seconds during emergency procedures. In addition, the retainer also allows the use of Ajax Exclusive non-turn tools. These tools can be indexed into different positions to allow one-hand operation of the hammer when necessary.
The Ajax Kwik Change Retainer is the only retainer which lets you use both turn and non-turn type tools.
The high-pressure regulator has a universal design for use with 2216, 4500 or 5500 psi SCBA cylinder without having to change the regulator.

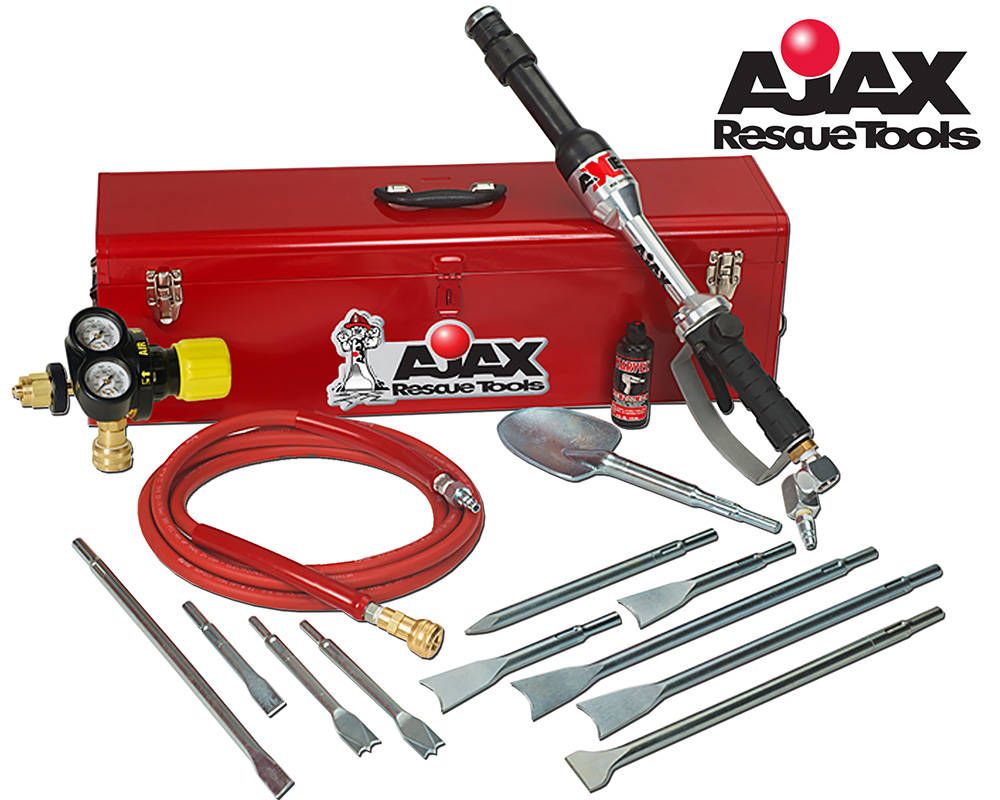

| X11 AXESS Rescue Kit Contents | ||
| (Qty.) - Part # | Qty. | Item Description |
| 1999 | 1 | Axess Air Hammer with 3700S-3 Retainer |
| 3300S-9 | 1 | Retainer |
| 1044 | 1 | 3/8" Male Coupler with 3/8" NPT |
| 1050 | 1 | 3/8" 90 Degree Swivel |
| 1030 | 1 | 15FT. 3/8" Hose with Male Coupler |
| 1052 | 1 | 3/8" Female Coupler for 1030 Hose |
| 8250-H | 1 | Regulator (Use with 2216, 4500 & 5500 PSI SCBA) |
| 1048 | 1 | 3/8" Female Coupler for Regulator |
| 1074 | 1 | 4 OZ. Bottle of Oil |
| 5318 | 1 | 30" Steel Kit Box |
| 8262 | 1 | Kit Box Liner |
| 3000-RK | 1 | 15-1/2" Chisel Pouch |
| 3100-RK | 1 | 23-1/2" Chisel Pouch |
| 3189-PL | 2 | Non Turn Panel Cutter 9" |
| 3180-PL | 2 | Non Turn Kwik Cutter 9" |
| 3182-PL | 1 | Non Turn Flat Chisel 7" |
| 3180-18-PL | 2 | Non Turn Kwik Cutter 18" |
| 3182-18-PL | 1 | Non Turn Flat Chisel 18" |
| 3184-18-PL | 1 | Non Turn 1-1/2" wide Chisel 18" |
| 3190-12-PL | 1 | Non Turn Moil Point |
| 3188-PL | 1 | Non Turn Clay Spade |
| AXESS Air Hammer Specifications | |
| ﾠ Blows Per Minute | 1,650 |
| ﾠ Bore Size | 3/4" |
| Stroke Length | 2-11/16" |
| Air @ 90 psi | 7 cfm |
| Overall Length | 25" |
| ﾠ Weight | 10 lbs. |
