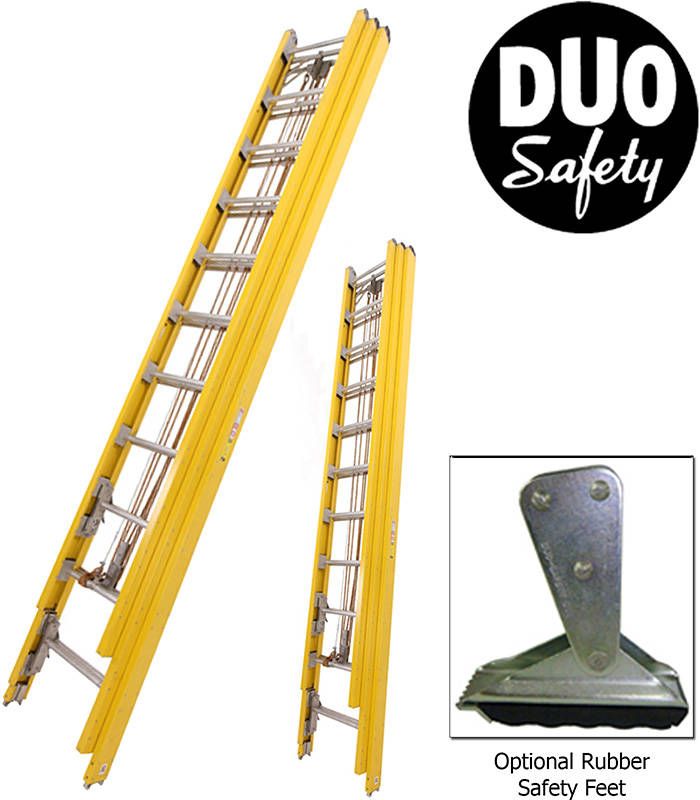

3 Section Fiberglass Extension Ladder (28 ft.- 35 ft.)
Duo-Safety Fiberglass Fire Ladders use an extruded channel rail construction with aluminum rungs. The aluminum rungs are welded to aluminum blocks which are then riveted to the rails. All Duo-Safety Fiberglass Ladders are non-conductive for single phase 110 volt service with a maximum of 30,000 volts only, dependent upon conditions.
• 4-1/2” Channel Rail
• 750lb Duty Rated with a 4:1 safety factor
• Special self-extinguishing resin - will not support flame
• Special high temperature resins for heat resistance
• Special ultra-violet screen for fade resistance
• Safety yellow color for better visibility in smoke
• Prong feet are standard
• Rubber safety feet for an additional fee
|
Size | Closed Length | Width | Banking Thickness | Weight |
|---|---|---|---|---|
|
16 ft. |
10' .5" |
23" |
7" |
80 lbs |
|
20 ft. |
12' 3.5" |
23" |
7" |
95 lbs |
|
24 ft. |
14' 3.5" |
23" |
7" |
110 lbs |
|
28 ft. |
16' 3.5" |
23" |
7" |
126 lbs |
|
30 ft. |
17' 10.5" |
23" |
7" |
140 lbs |
|
35 ft. |
20' 3.5" |
23" |
7" |
160 lbs |
All dimensions listed are N.F.P.A. Design Verification Standards. Variations occur in each product of approximately +/- .125" due to the type of rivets, nuts, bolts etc. used. If you require precise dimensions, please Contact Us.
Shipping Note:
Ladders are one of the most interesting products we ship. The vast majority of ladders will ship via truck freight because of the size and/or weight. We try to use the best and least expensive carrier whenever possible, however carriers can vary by as much as $100 for an identical shipment. Because of this, it is not possible to provide a shipping price at check-out.
You may complete your order online, however there will be no shipping charges displayed at checkout. Please provide an accurate shipping address at check-out, and a First Out Rescue specialist will contact you to make delivery arrangements and give you the final cost for your order including freight charges.
