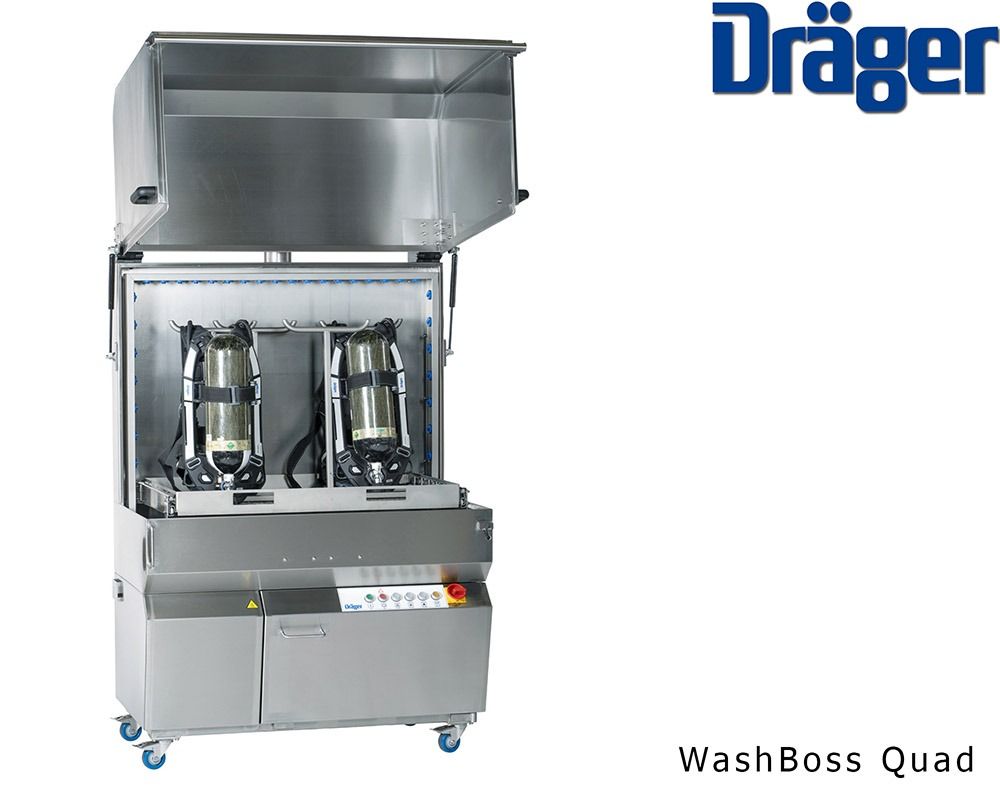

WashBoss Quad Complete SCBA Washing Machine
The WashBoss Quad Complete is a complete washing solution specially developed for professional cleaning of SCBA’s with the breathing cylinder attached. In addition, helmets or full-face masks can also be washed in the WashBoss Quad.
Efficient Cleaning Under Pressure - The WashBoss Quad Complete is designed to clean Self-Contained Breathing Apparatus (SCBA) while they are still under pressure with the cylinder attached. This feature ensures that the cleaning process is both efficient and safe, maintaining the integrity of the equipment and reducing downtime.
Versatile Cleaning capabilities - In addition to SCBA, the WashBoss Quad Complete can clean helmets and full-face masks with the proper accessories. Helmets can be placed individually on the pull-out frame, and masks can be cleaned using standard mask baskets or the optional 18-position mask frame. This versatility makes the WashBoss Quad suitable for a wide range of cleaning needs.
Automatic Water Level Control - The WashBoss Quad Complete features an automatic water level control system that maintains the optimal water level in the wash tank. This system includes a low-level cut-out and overflow protection, ensuring consistent cleaning performance and preventing water wastage.
Adjustable Wash & Rinse Cycles - The WashBoss Quad Complete offers adjustable wash and rinse cycles, allowing users to customize the cleaning process according to specific requirements. With cycle times of 5, 10, and 22 minutes, and adjustable temperatures up to 130°F, the machine provides flexibility and efficiency for various cleaning tasks.
High-Quality Materials & Construction - Constructed from high-grade stainless steel, the WashBoss Quad Complete is built to last. The use of stainless steel ensures durability and resistance to corrosion, making the machine a reliable choice for long-term use in demanding environments.
Energy-Efficient Heating System - The WashBoss Quad Complete is equipped with a heating system that quickly and evenly heats the water in the wash tank. This system reduces energy consumption and operational costs, making the WashBoss Quad Complete an eco-friendly and cost-effective solution for professional cleaning.
WashBoss Quad Complete Specifications:
• Dimensions (inches):
o External: 70.86” (94.88”*) *with open hood and extended drawer x 52.55” x 33.46”
o Internal: 26.6” x 40.55” x 24.01”
• Weight: 881 lbs.
• Internal & External Machine grinded stainless steel type 304
• Doors:
o 1 piece, vertical closing (front loader)with 2 handles
o Door Security/Emergency stop
• Wheels: 4 castors
• Control: Siemens PLC
• Wash pump power: 2.2 kW
• Wash pump capacity: 224 gallon/ per minute at 22 PSI
• Wash tank capacity: 24 gallon
• Wash Heating: 9 kW
• Three wash cycle times: 5, 10 and 22 minutes
• Wash temperature: adjustable up to max. 130°F
• Wash system: Moving wash frame with stainless steel nozzles on 4 sides
• Cleansing dosage: Automatic, adjustable
• Power rinse pump: 370 Watt
• Water rinse tank capacity: 5 gallon
• Rinse heating: 9kW
• Rinse time: adjustable (by factory)
• Rinse water temperature: max. 130°F
• Rinse system: moving rinse frame with stainless steel nozzles on 4 sides
• Neutralization dose: automatic, adjustable
• Drain pump: 80 Watt
Technical Data
• Voltage: 5-pole CEE-plug, 208 Volt AC, 3 phases, PE, 60 Hz.
• Power: 21 kW, fused at 3 x 63A
• Cable connection: 4 x 10 AWG
• Water supply connection: G ¾” max. 120°F
• Water hardness: 2-4° dH
• Required water pressure: 15 - 40 PSI
• Water consumption by rinse: 2.65 gallon per minute rinse
• Water drain: Ø 2 inch
• Maximum height drain hose: 8 inch without syphon
• Noise volume: 70 db(A)
What’s Included:
• Wash Boss Quad Complete Washer w/ Stainless-Steel SCBA wash frame
Optional Equipment:
• Additional stainless-steel SCBA wash frame
• 18-Position full-face mask stainless steel wash frame
• Neodisher cleaner
What You will Need for Installation:
• Plumber & Electrician (sourced locally)
• Basic water softening system to comply with NFPA 1850. (sourced locally)
• Salt for water softener (sourced locally)
• Drager SCBA Battery Blank
• Drager SCBA Blanking Caps for LDV & 1st stage regulator
View WashBoss Quad Complete Product Specification Sheet [PDF]
SHIPPING NOTE: Due to the size/weight of this product, shipping must be arranged by phone or email. There are two options:
1. You may complete your order online, however there will be no shipping charges displayed at checkout. A First Out Rescue product specialist will contact you to make delivery arrangements and give you the final cost for your order including freight charges.
2. You can use the "Request A Quote" payment option at checkout. A First Out Rescue Equipment specialist will be in contact and provide the total cost of your order, including the shipping charges. No payment is required until you approve the total quoted price.
